Ambient Temperature Sensor / Switch HVAC: Testing and Inspection
1. Disconnect battery terminal (-).
2. Detach the harness of the ambient temperature sensor.

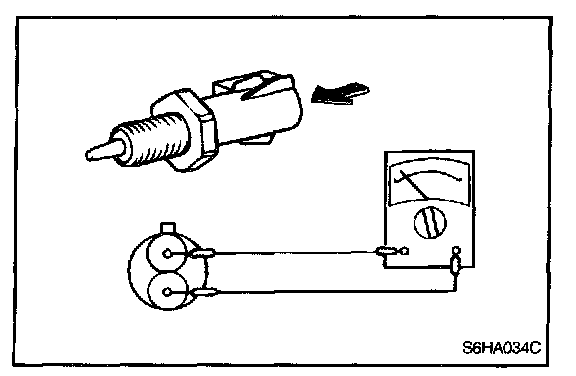

3. Measure the resistance as shown.
Resistance 20 °C 36.5 ± 2.3 kOhms
1. Disconnect battery terminal (-).
2. Detach the harness of the ambient temperature sensor.
3. Measure the resistance as shown.
Resistance 20 °C 36.5 ± 2.3 kOhms
