FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Kia
>>
2001
>>
Optima L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Sections A Thru Z
>>

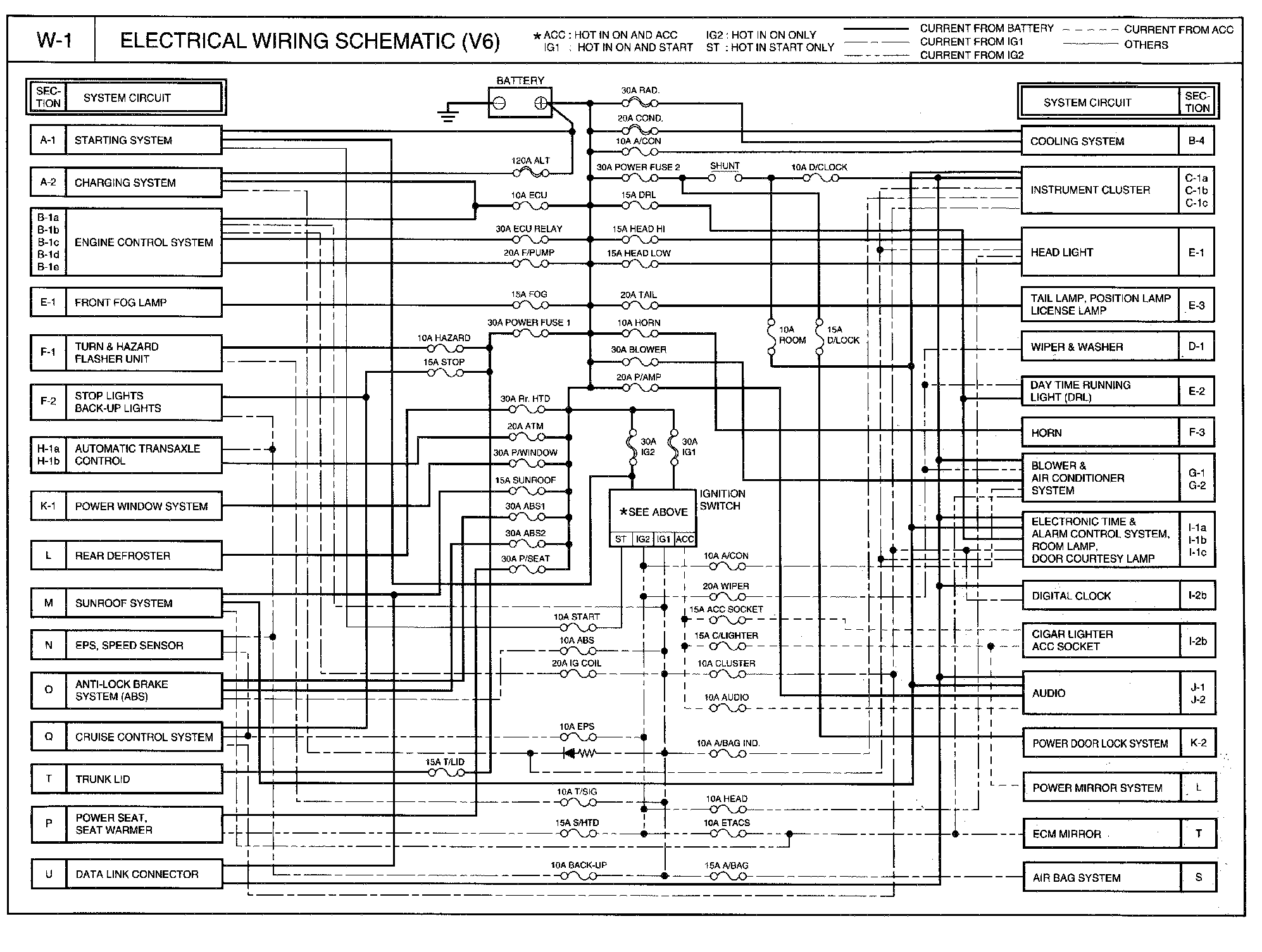

W-1 - Electrical Wiring Schematic
W-1 - Electrical Wiring Schematic
W-1 - Electrical Wiring Schematic:
