Home >> Kia >> 2001 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Sections A Thru Z >> H-1A - Automatic Transaxle Control System

H-1A - Automatic Transaxle Control System

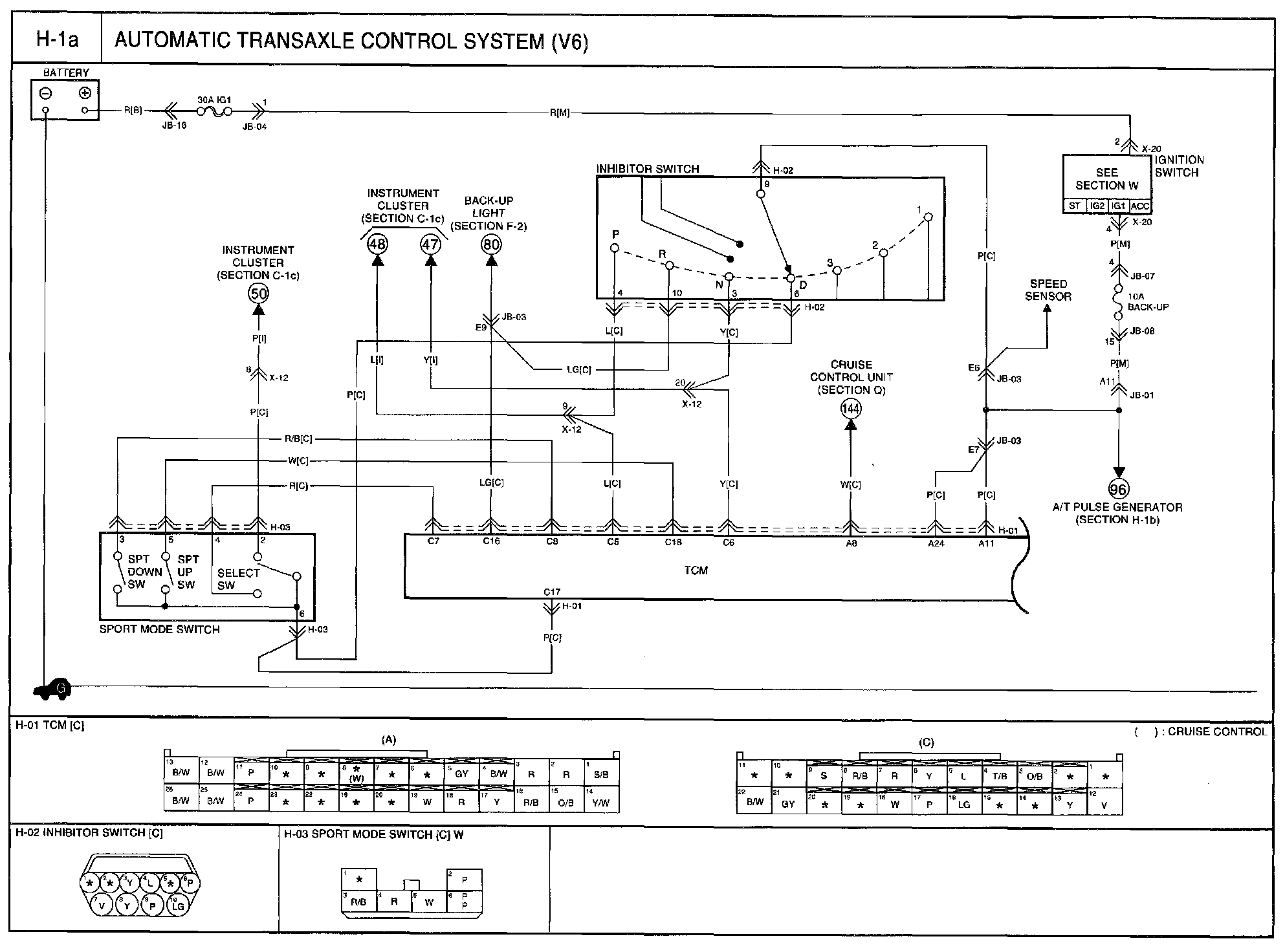

H-1a - Automatic Transaxle Control System Circuit:
