2001
>>
Optima L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
System Diagram
G-1 - Blower And Air Conditioner System (Manual) Circuit:

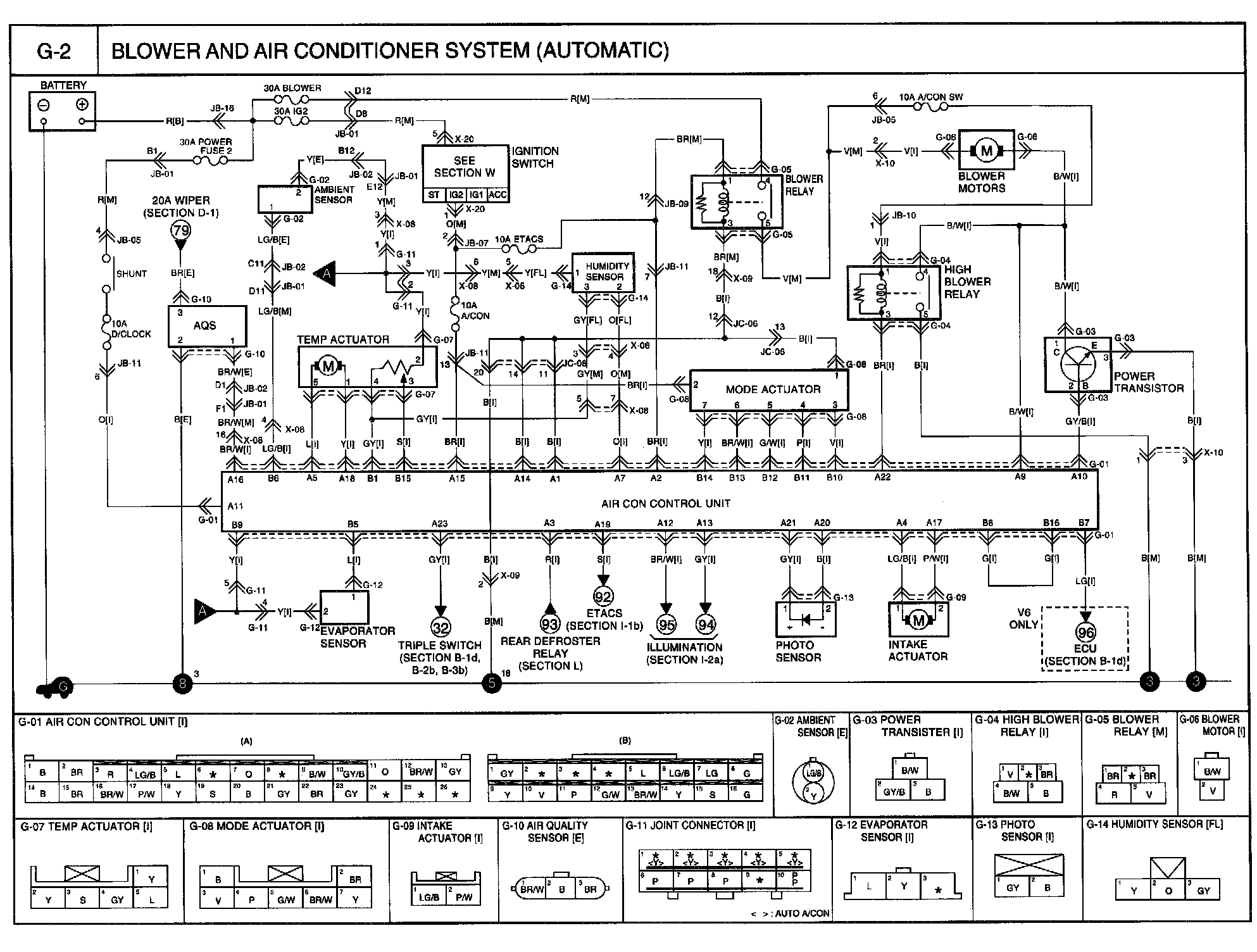

G-2 - Blower And Air Conditioner System (Automatic) Circuit:
