Seat Temperature Element: Testing and Inspection
Seat Warmer System:

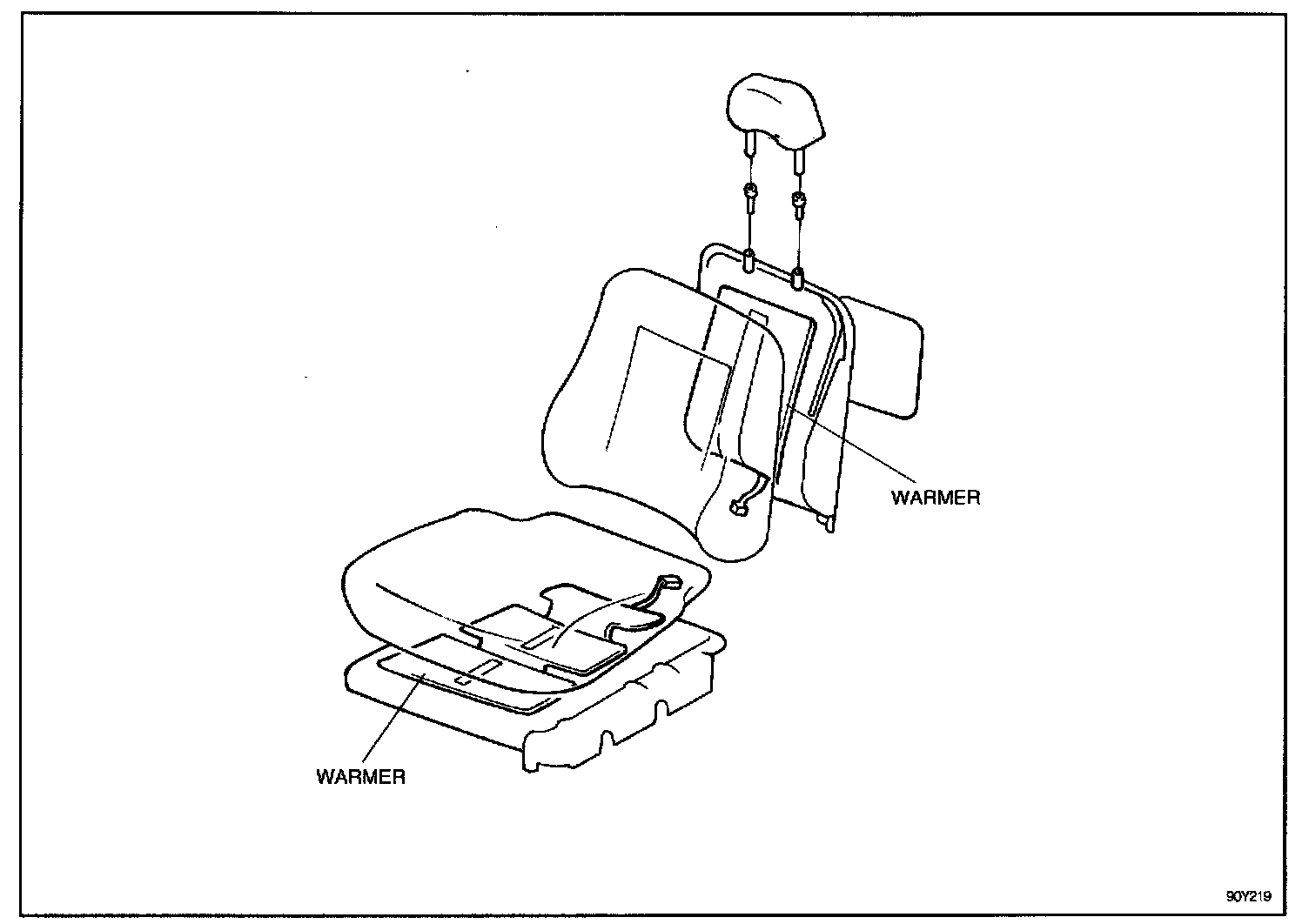

SEAT WARMER SYSTEM

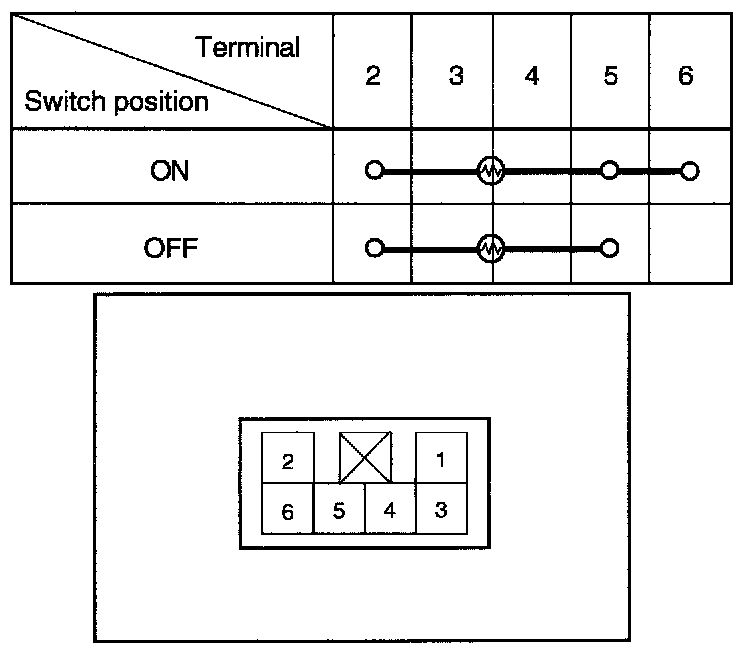

Seat warmer switch
Inspect the switch continuity between terminals.
