Home >> Kia >> 2001 >> Optima L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations >> Connector Locations

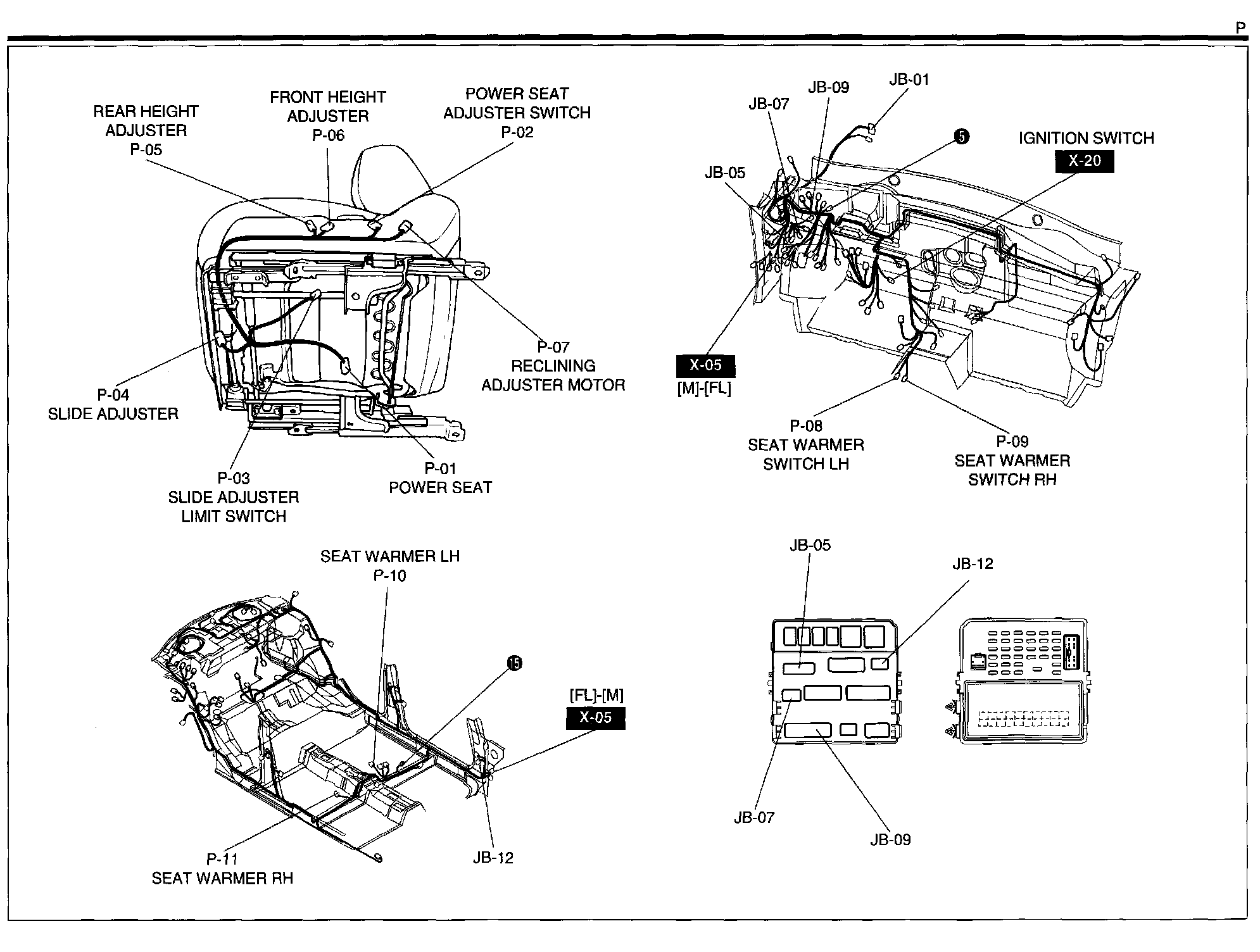

Connector Locations

P - Power Seat, Seat Warmer Harness/Connector Symbols:
