Home
>>
Kia
>>
2001
>>
Optima L4-2.4L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Connector Views
Connector Views

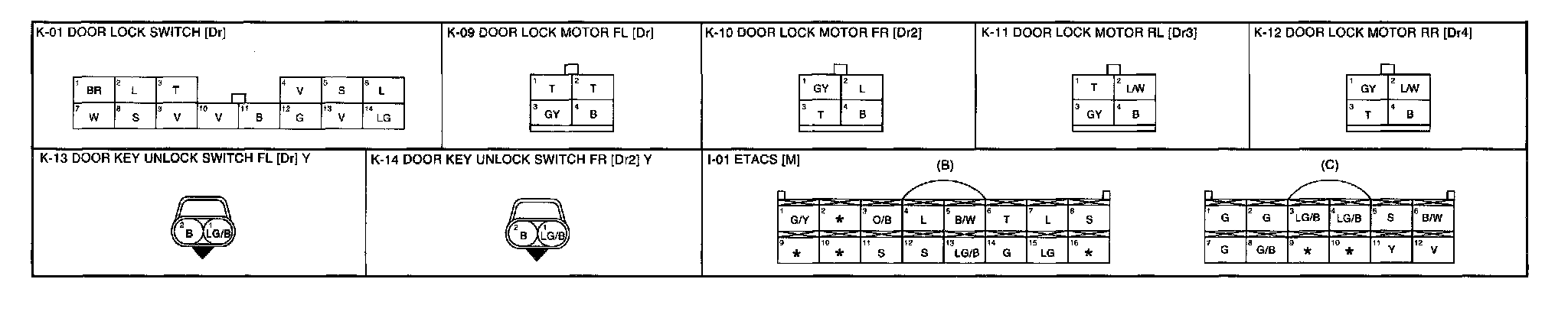

K-2 - Power Door Lock System Connectors:
