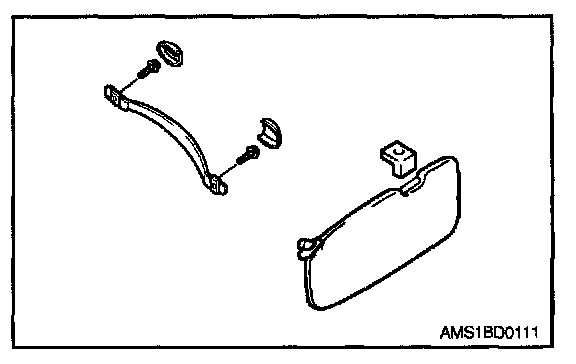

Headliner: Service and Repair

REMOVAL




1. Unscrew two mounting screws from sun visors.
2. Remove sunvisors and sunvisors retaining clips.

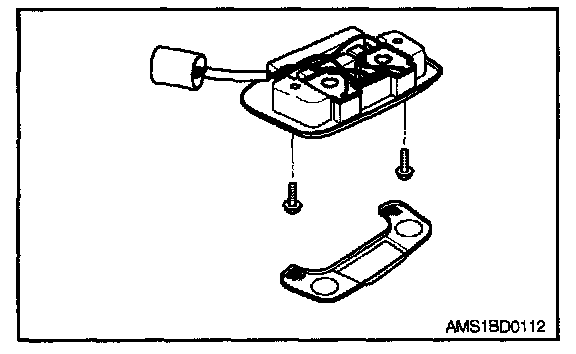

3. Remove assist handle covers, unscrew mounting screws.
4. Remove three assist handles.




5. Gently remove lens assembly on interior and map light.
6. Remove light bulb.
7. Remove two mounting screws.
8. Disconnect power connector and remove interior and map light.
9. Remove A, B and C-pillar trims. Refer to "Trim ".
10. Remove seven fasteners.

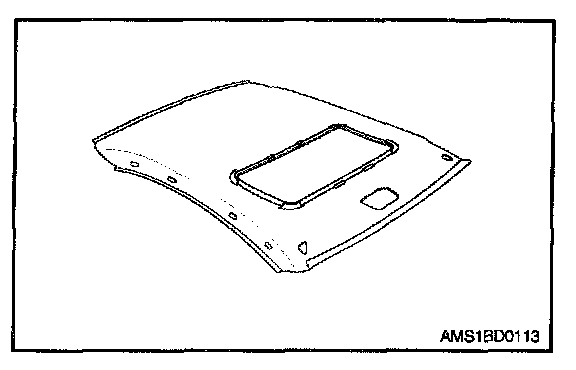

11. Remove headliner.

INSTALLATION
1. Reverse removal procedure
