Power Trunk / Liftgate Lock Actuator: Service and Repair

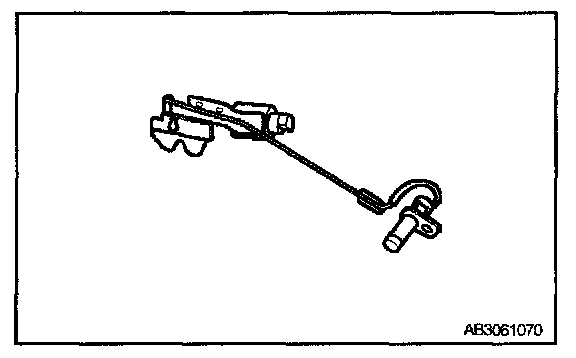

Trunk Lid Lock Assembly

REMOVAL
1. Disconnect negative battery cable.
2. 0pen trunk lid.
3. Remove the trunk lid trim.
4. Disconnect electrical harness connector.




5. Unfasten lock rod clip and fastener from keylock.
6. Remove one nut from keylock.
7. Disconnect actuator connector.
8. Remove two bolts from trunk lid lock assembly.

INSTALLATION
Install in reverse order of removal.
