Doors: Description and Operation

Front And Rear Door:

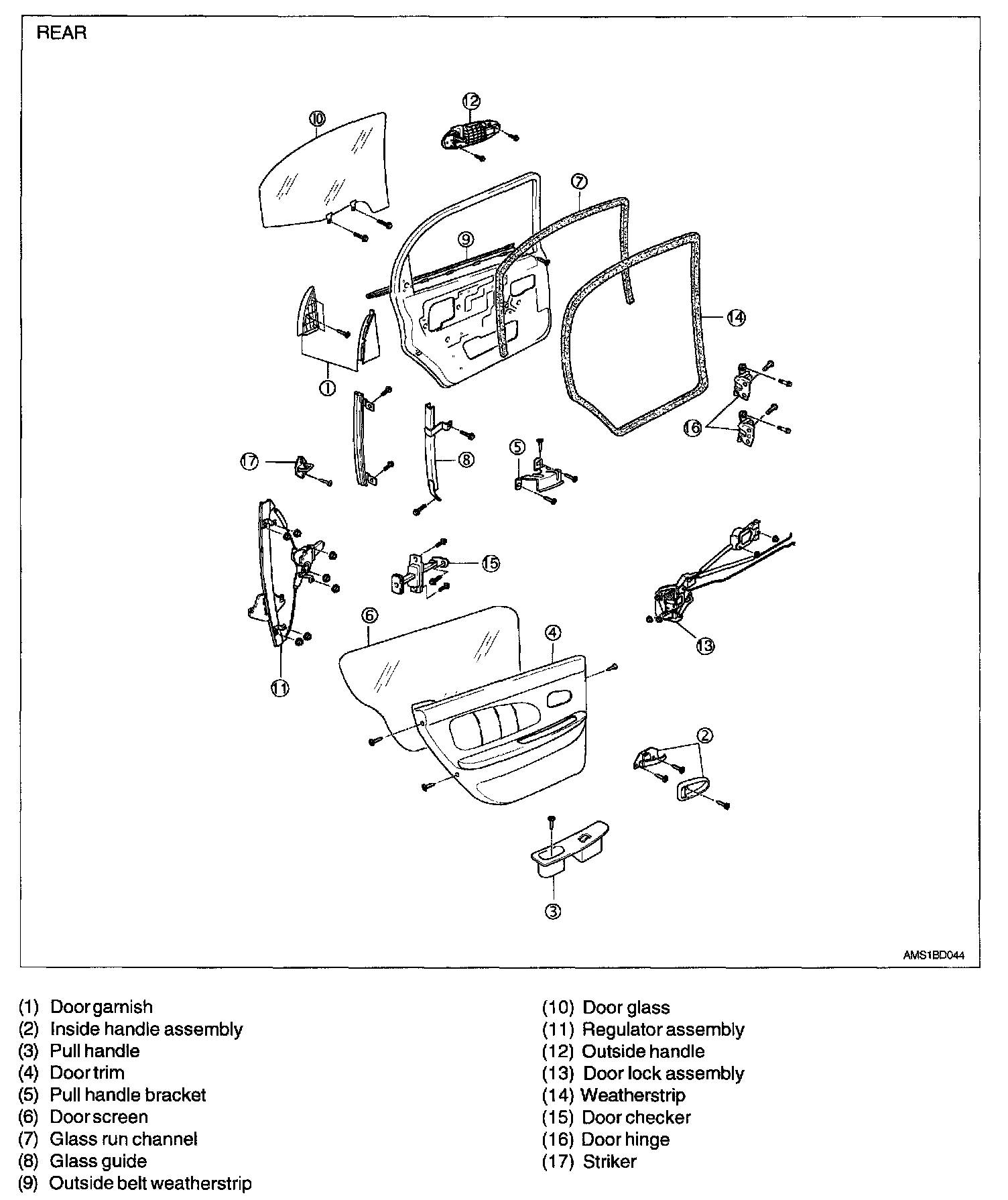

Rear Door:

Vehicle door is attached to vehicle body by two hinges and a door checker. Door checker limits amount of swing of the vehicle door. A hollow rubber weatherstrip is installed on the door opening flange to prevents leaks between vehicle door and inside of vehicle body. The door lock assembly is linked with outside and inside door handle.

The power window system is comprised of a window regulator assembly (on which glass is fastened), a front glass guide (which guides movement of glass at front side) and a window power switch (switch for up and down movement of glass, which is attached to armrest).

A plastic door screen covers door frame, protecting all components. The door striker may be adjusted for proper operation and easy door closure.
