Diagnostic Trouble Code Charts

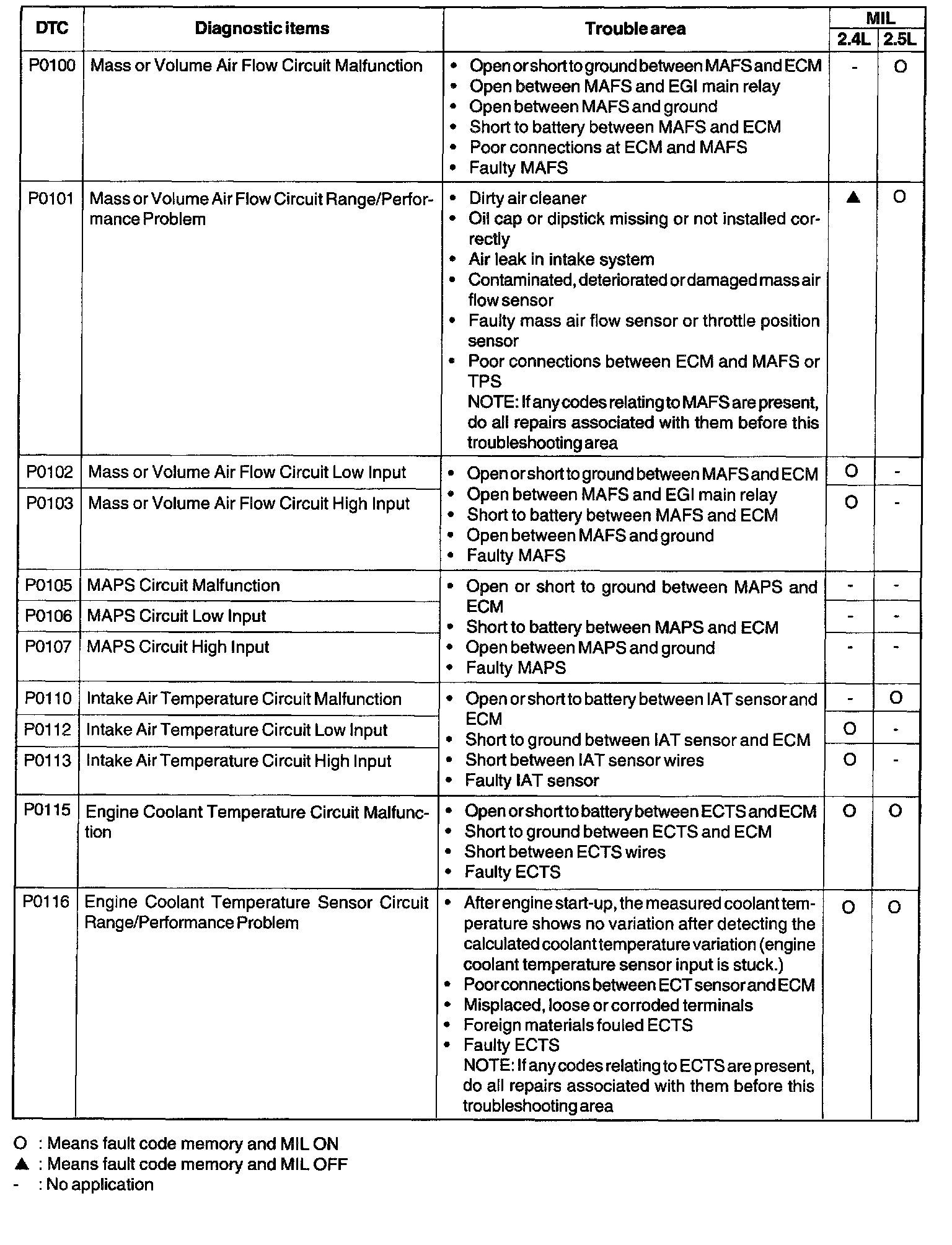

P0100 - P0116:

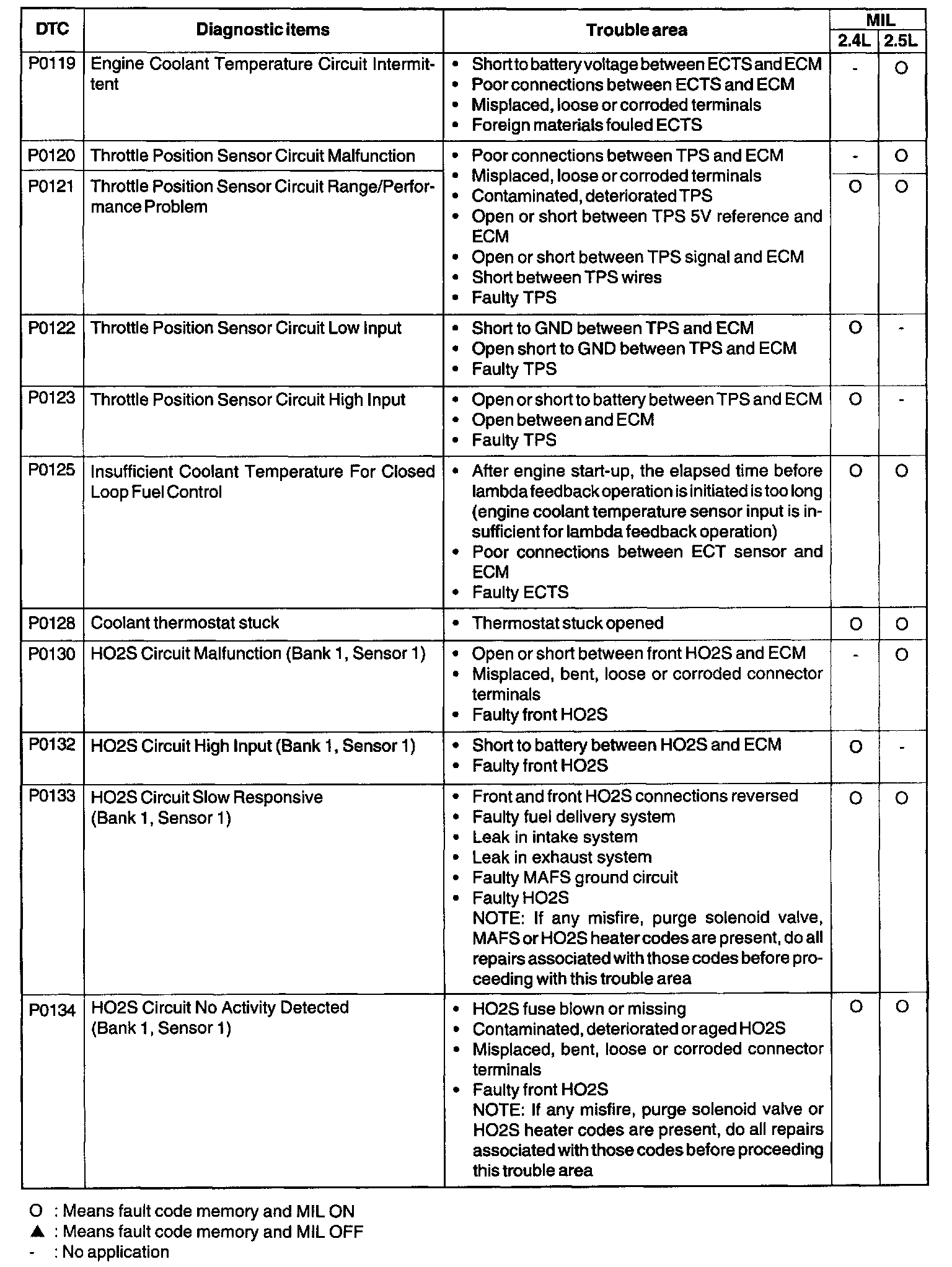

P0119 - P0134:

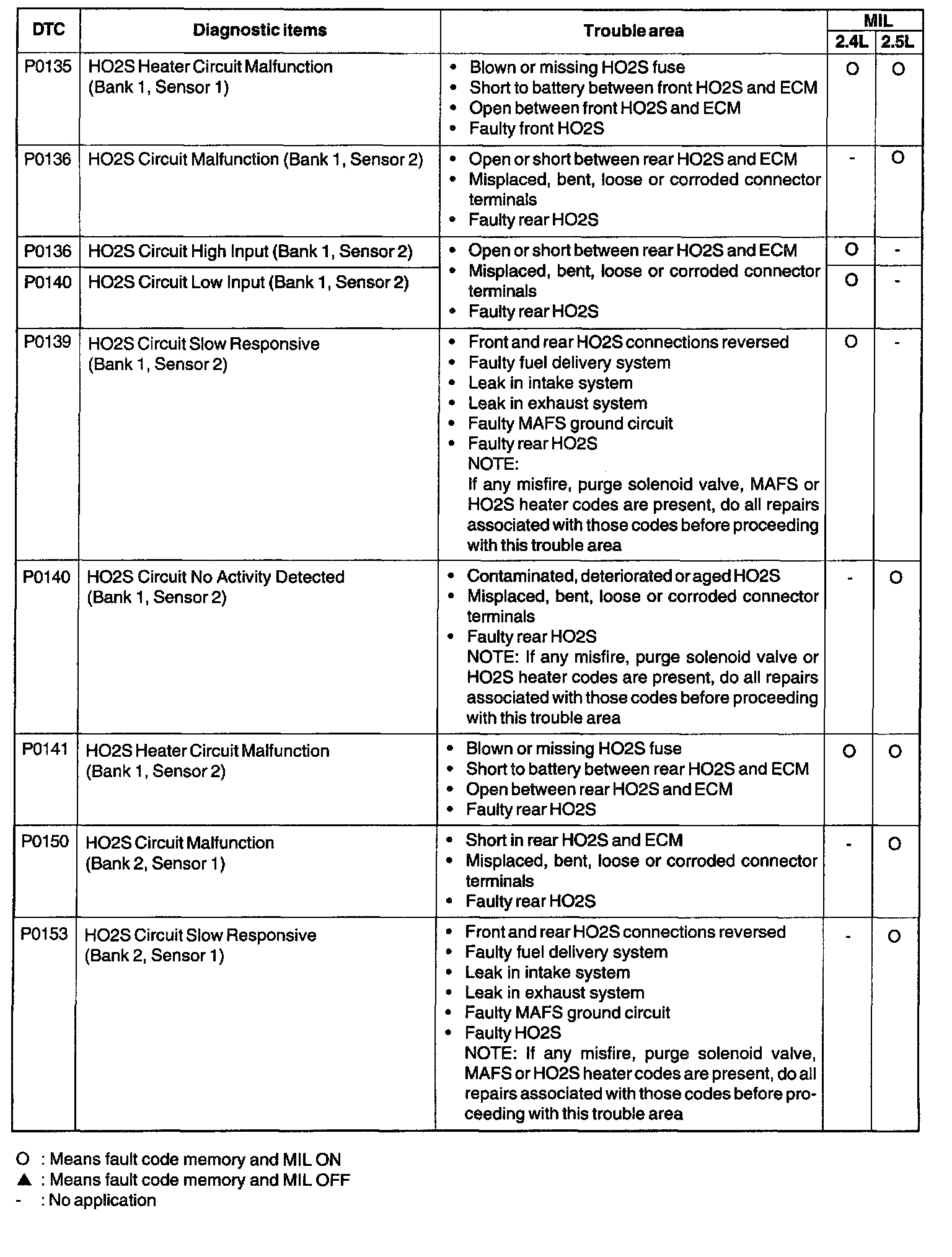

P0135 - P0153:

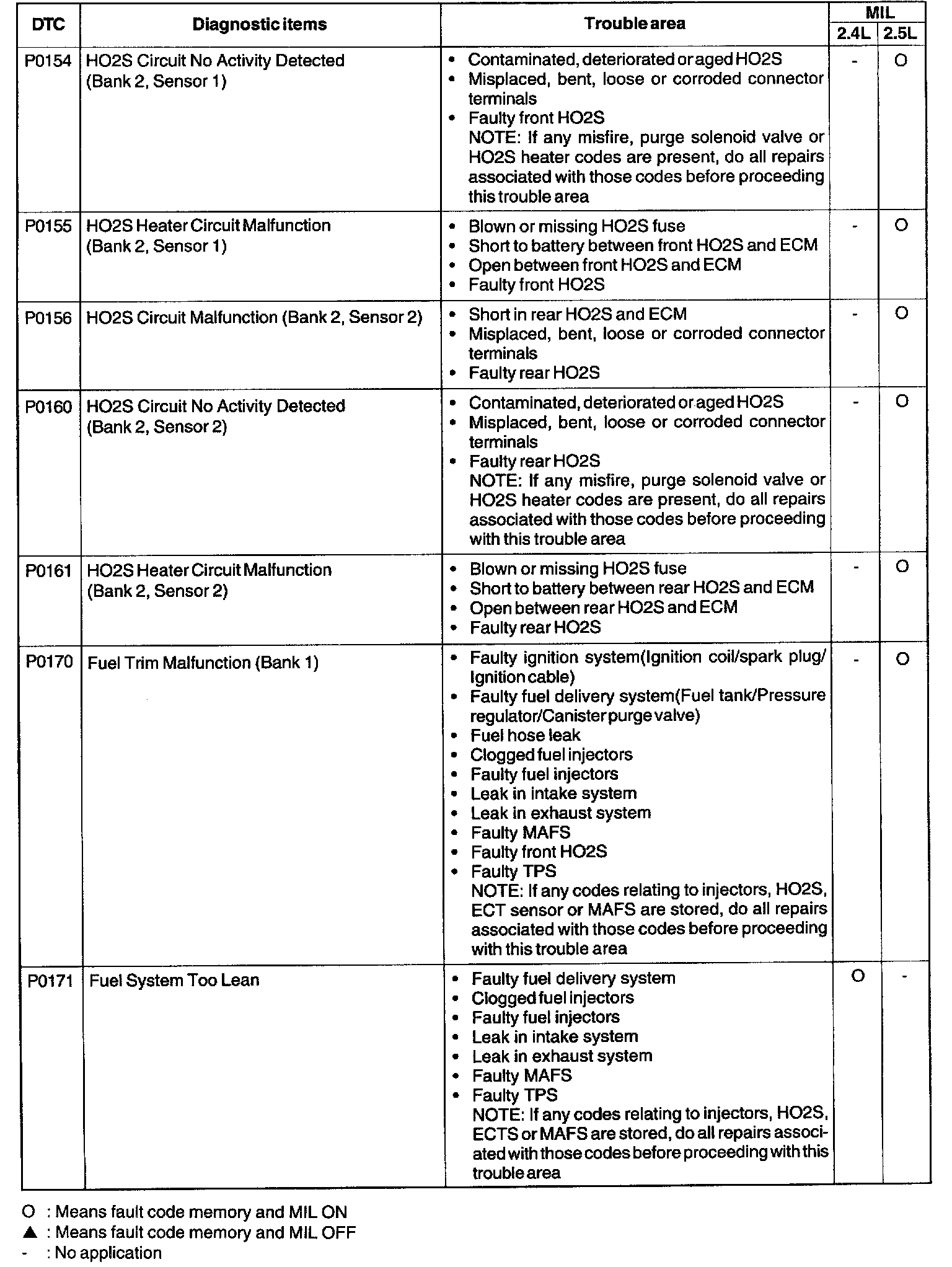

P0154 - P0171:

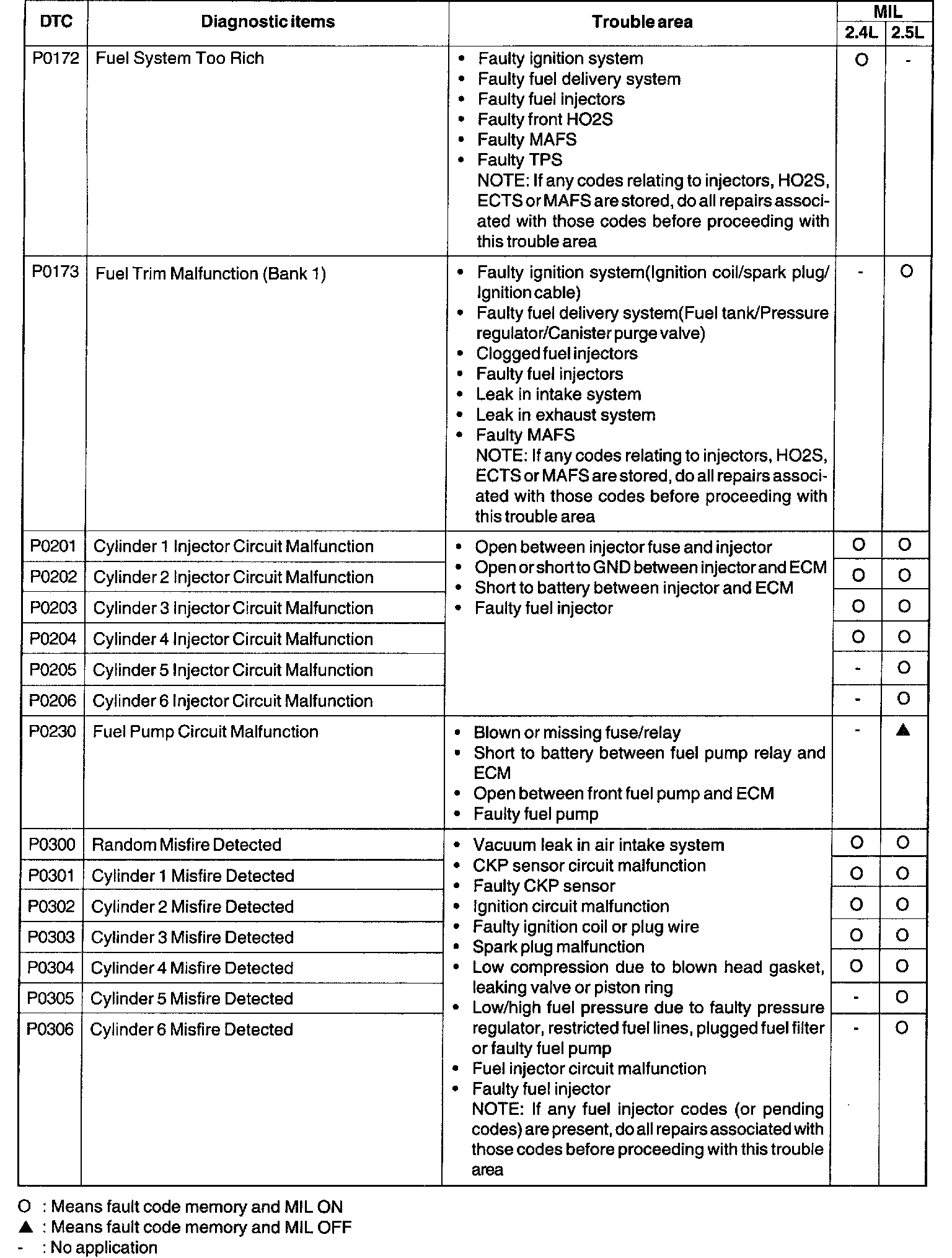

P0172 - P0306:

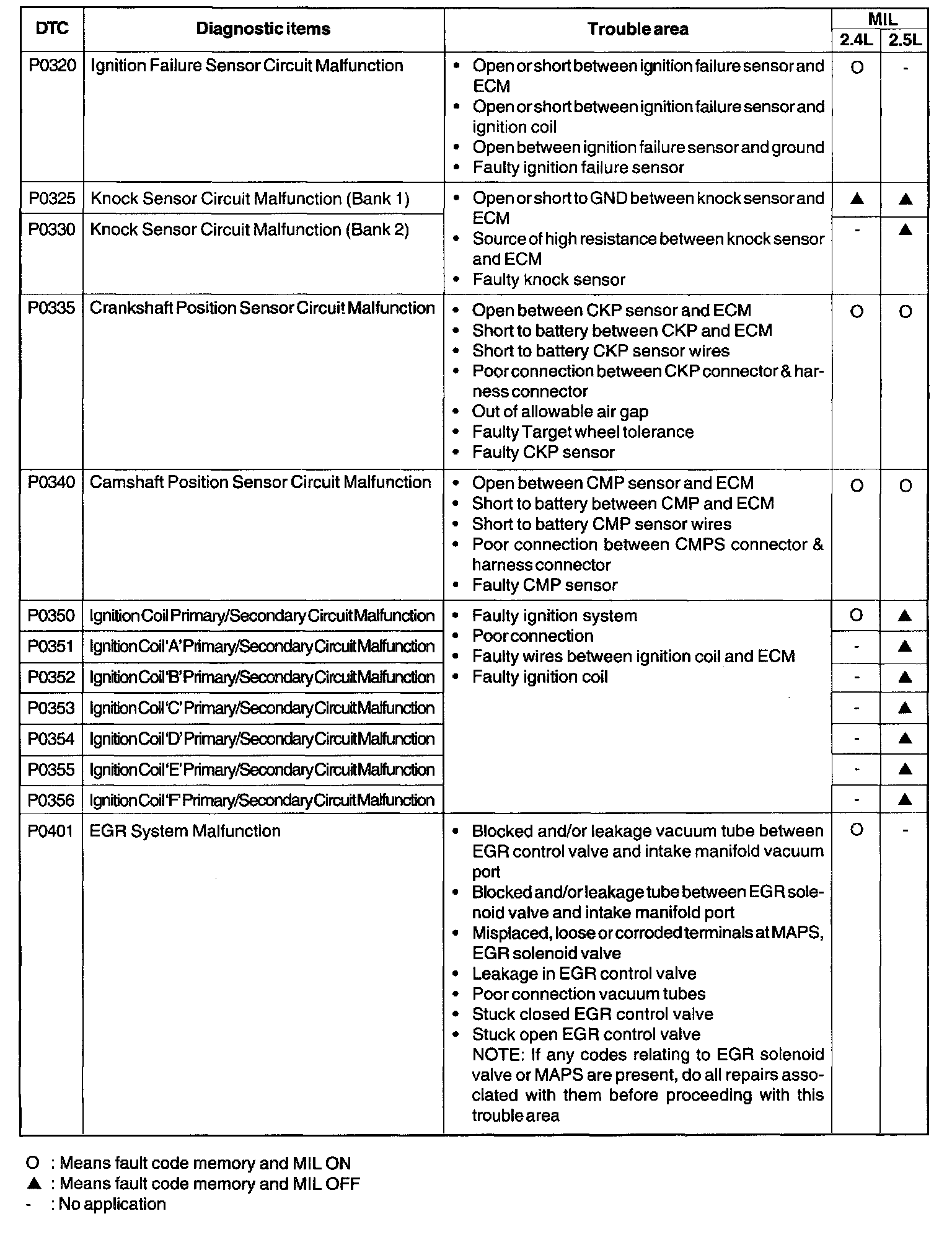

P0320 - P0401:

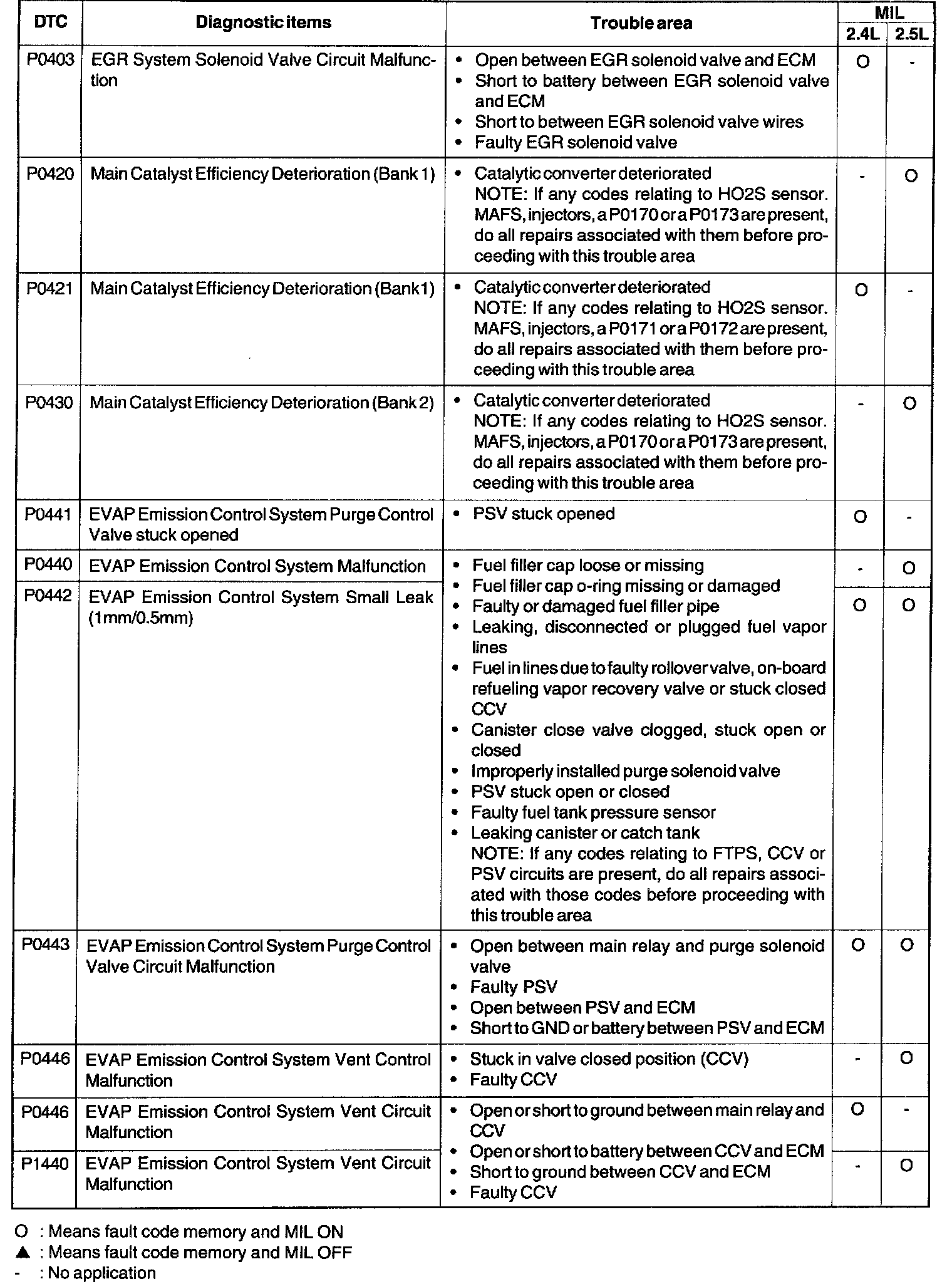

P0403 - P1440:



P0451 - P0456:

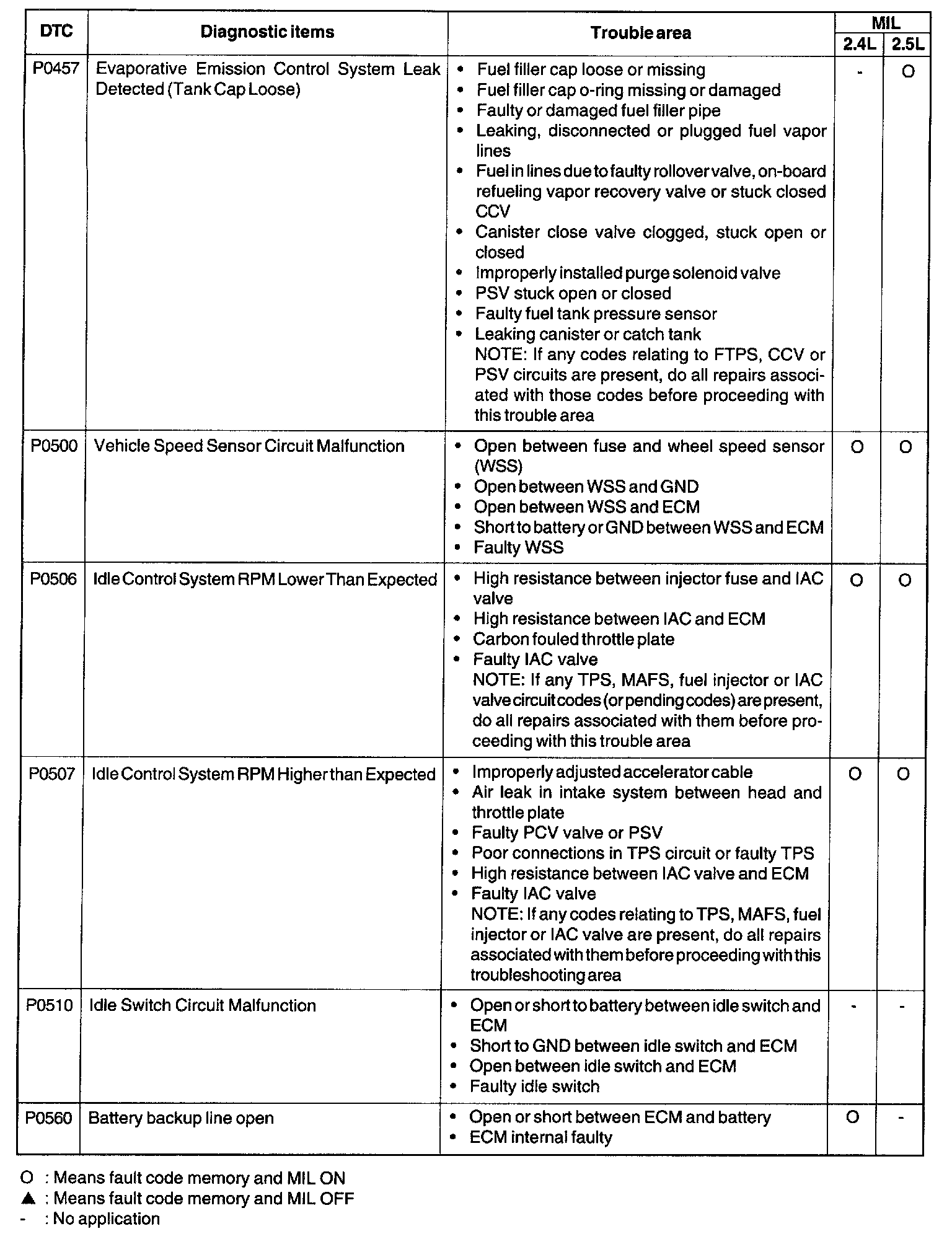

P0457 - P0560:

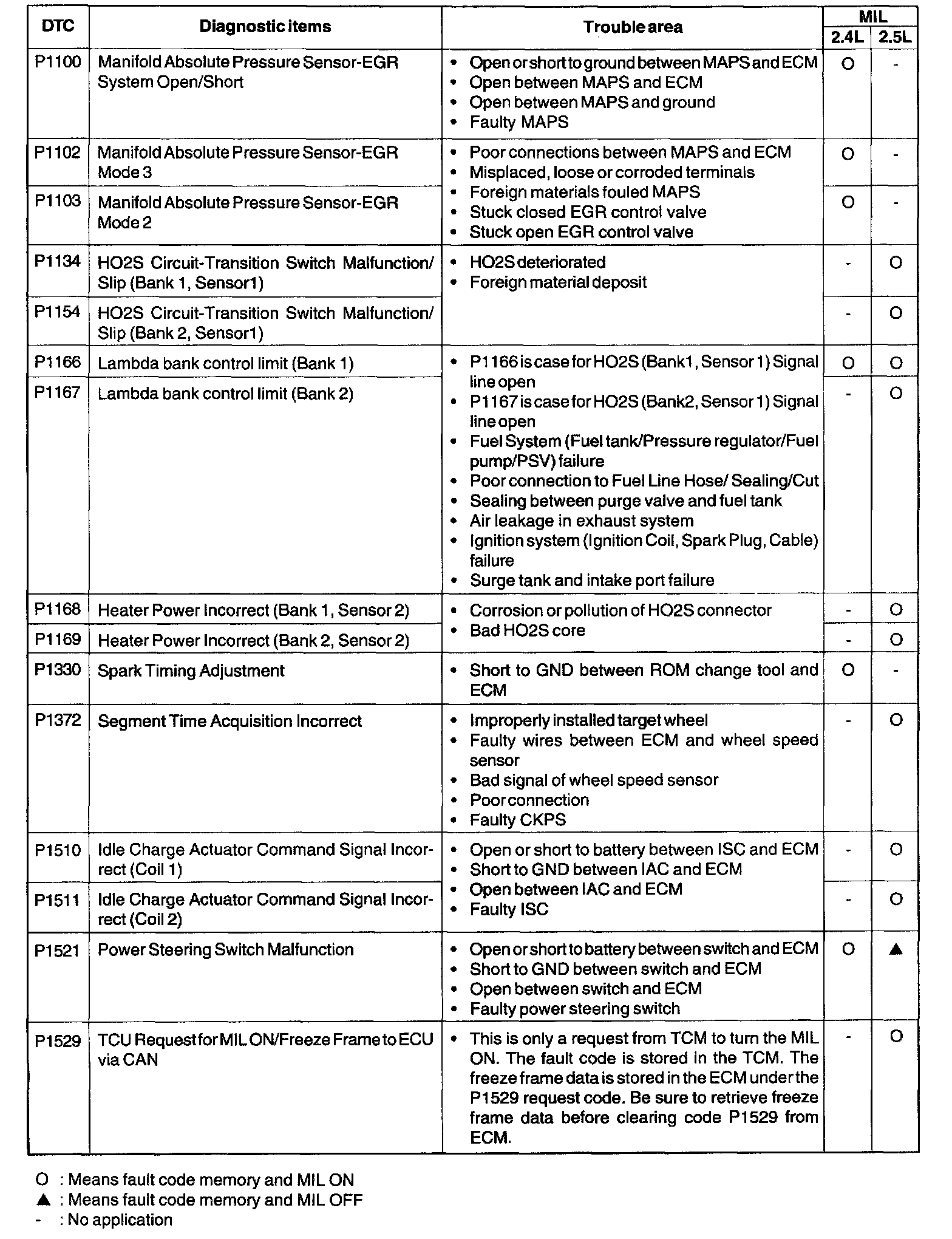

P1100 - P1529:

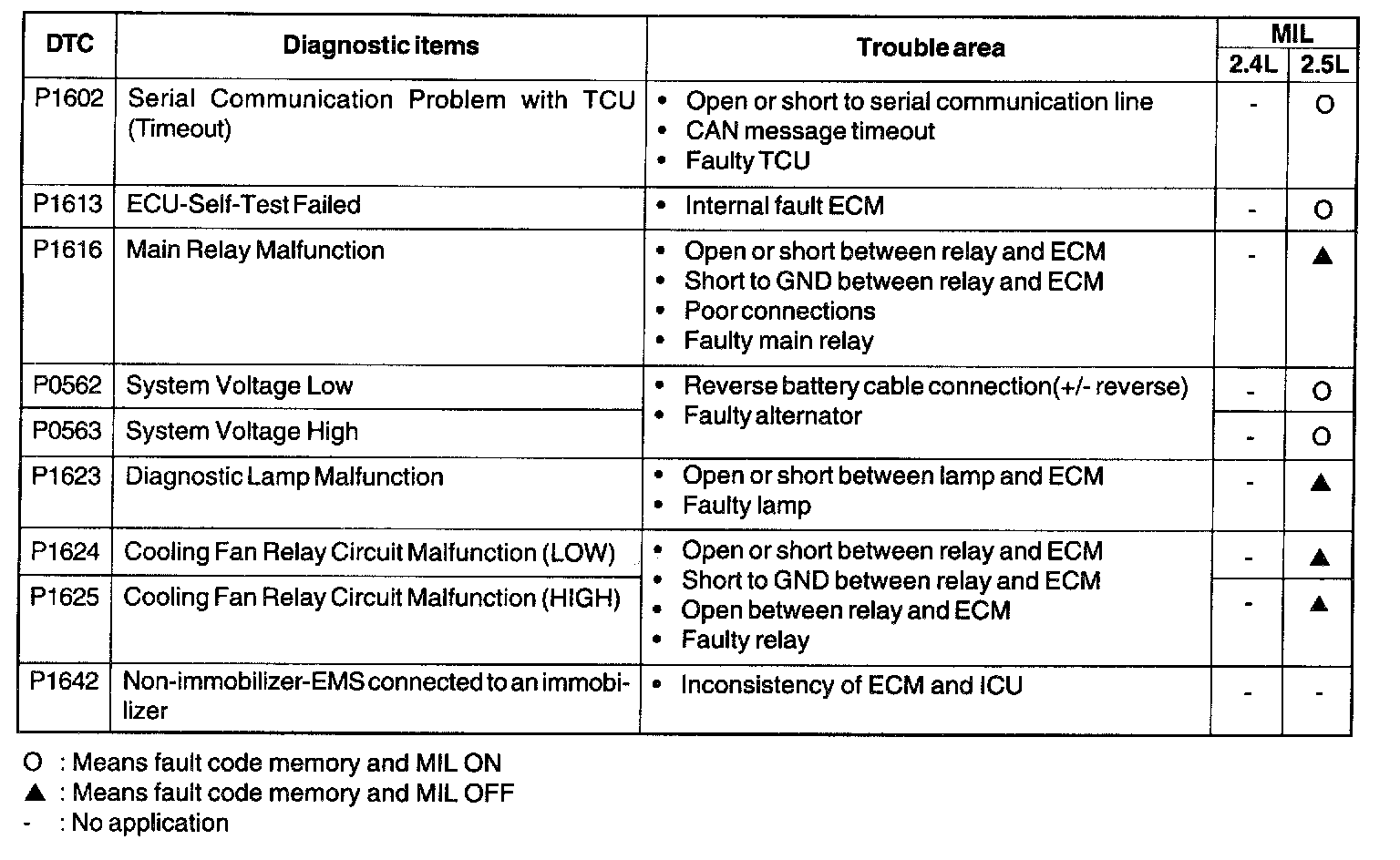

P1602 - P1642:

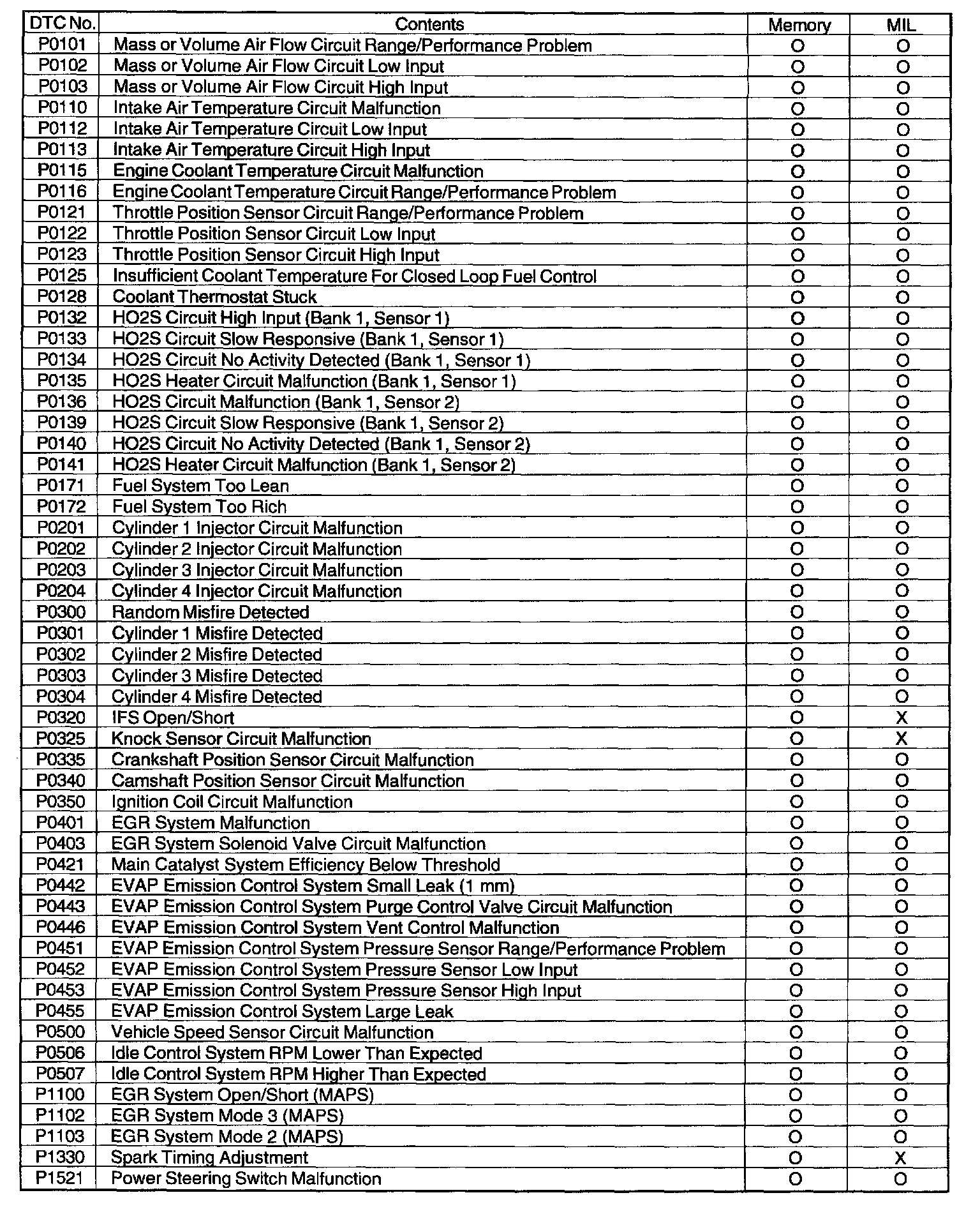

P0101 - P1521:
