Inspection

1. Check for continuity between positive terminal and negative terminal using an ohmmeter.

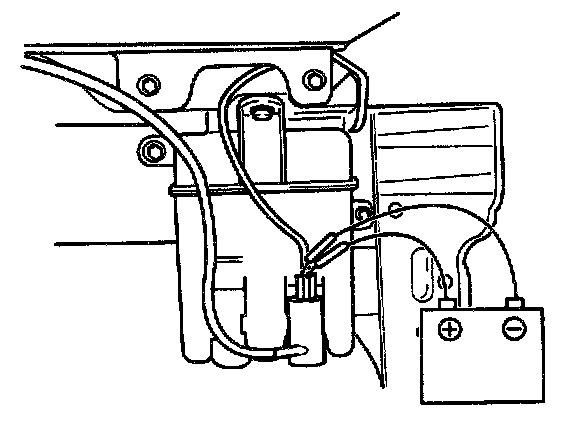

2. Check motor function by connecting it to a 12 V DC source.
3. Visually inspect washer tank for cracks or damage.
