Heated Glass Element: Service and Repair

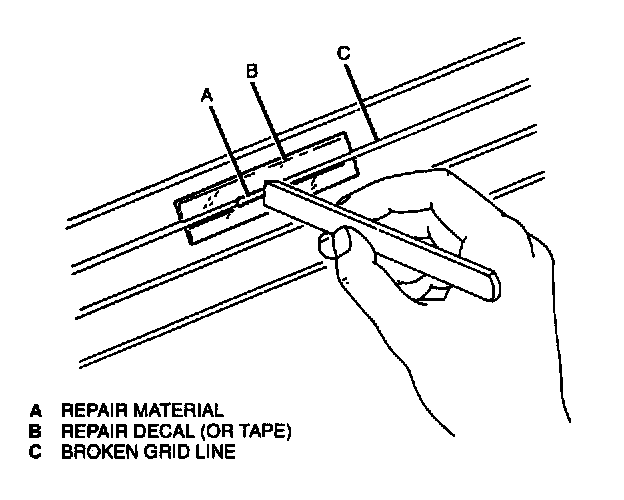

1. Place the repair decals (or tape) alongside the broken grid line as shown in the illustration.
2. Apply and cure the repair material per manufacturers instructions.
3. Remove the repair decals (or tape).
4. Verify defroster grid line continuity.
