Fluid - M/T: Testing and Inspection

OIL LEVEL INSPECTION
1. Raise vehicle and support it with safety stands.

NOTICE: Keep vehicle level when checking oil level.

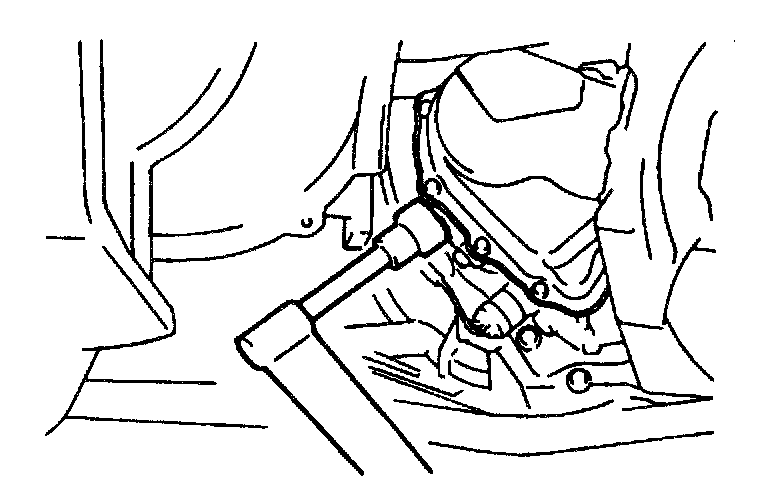

2. Remove oil level plug and washer.





3. Verify that oil level is near bottom of plug hole.
4. If oil level is low, fill specified amount and type of oil until level reaches bottom of hole.
5. Install new washer on oil level plug and reinstall plug in case.

Tightening Torque: 29 - 43 ft. lbs. (40 - 58 Nm, 4.0 - 6.0 kg.m)

6. Lower vehicle.
