Removal

1. Lift front of vehicle and support it with safety stands.

2. Remove wheel and tire.

3. Remove plastic undercover.

4. Remove stabilizer from control link.

5. Remove control link from the control-link bracket on the lower arm.





6. Remove the two nuts on the steering rack mounting bracket, and temporarily move rack forward.

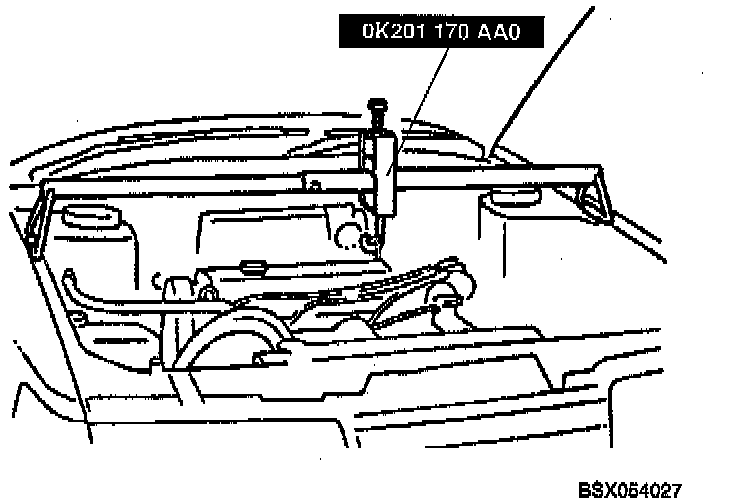

7. Support engine with Special Service Tools(OK201 170 AAO or equivalent), and remove six crossmember mounting bolts.

8. Lower the crossmember enough to pull the stabilizer out from behind the crossmember.

9. Remove stabilizer.
