Steering Wheel Play

Procedure

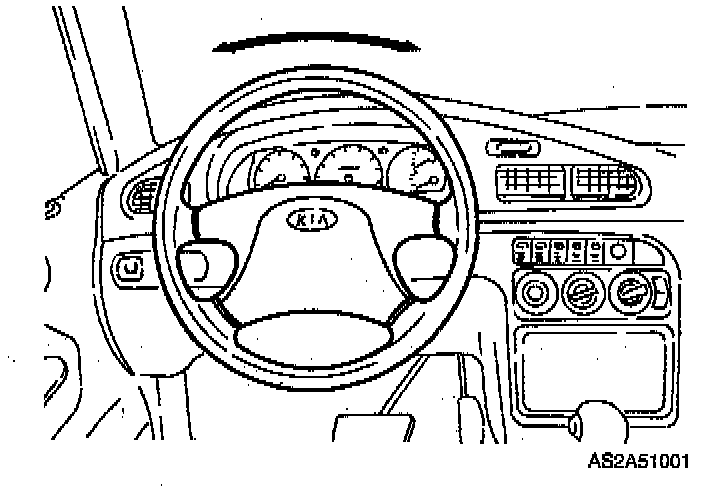

1. With wheels in straight-ahead position, gently turn steering wheel left and right to determine if play is within specification. Play is measured at outer rim of wheel.

Play: 1.18 inch (30 mm) Max.

NOTICE: If play exceeds specification, either steering joints are worn or backlash in steering rack is excessive.
