Turn Signal Switch: Testing and Inspection

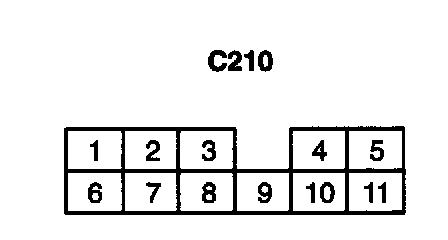

1. Disconnect combination switch connector C210.

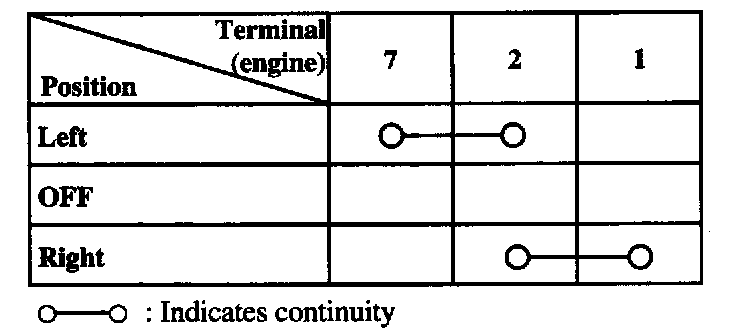

2. At the switch, check for continuity between terminals, as indicated.
3. If continuity is not as specified, replace switch.
