Component Tests and General Diagnostics

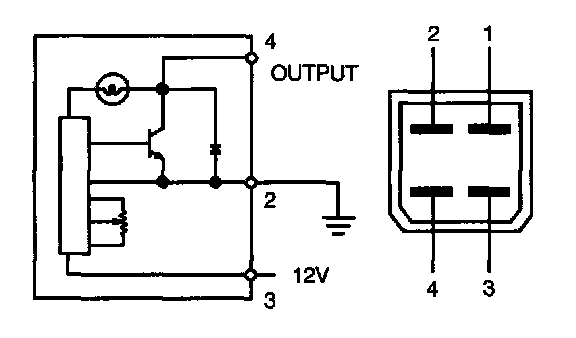

I/P dimmer switch1. Remove the switch.
2. Apply 12 V to terminal 4 and ground to terminal 1.

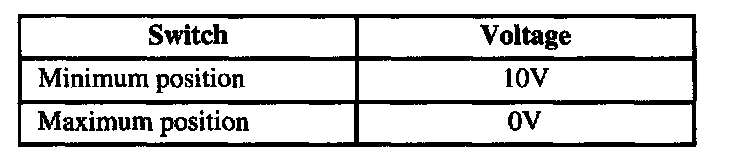

3. Check that the DC voltage at terminal 3 changes as indicated when rotating the potentiometer.
4. If not as specified, replace I/P dimmer switch.
