Braking Sensor/Switch: Adjustments

INSPECTION

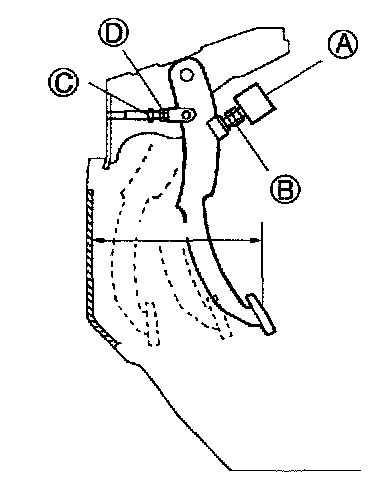

1. Verify that distance from the center of the pedal to the engine compartment bulkhead is as specified.

Specification: 7.60 - 7.72 inch (193 - 196mm)


ADJUSTMENT
1. Disconnect brake pedal switch connector.




2. Loosen locknut B and rotate switch A until it does not contact pedal.
3. Loosen locknut D and turn rod C to adjust height of the brake pedal. If necessary, further rotate switch A to prevent it from contacting pedal.
4. Rotate brake pedal switch A in until plunger is completely compressed, then rotate it out about 1/2 turn. Tighten locknuts B and D.
5. Reconnect brake pedal switch connector.
6. Verify operation of stoplights.
