Condenser Fan Motor Relay: Testing and Inspection
Condenser Fan Motor RelayINSPECTION
1. Disconnect condenser fan relay from fuse box in engine compartment.
2. Check continuity between terminals of relay.

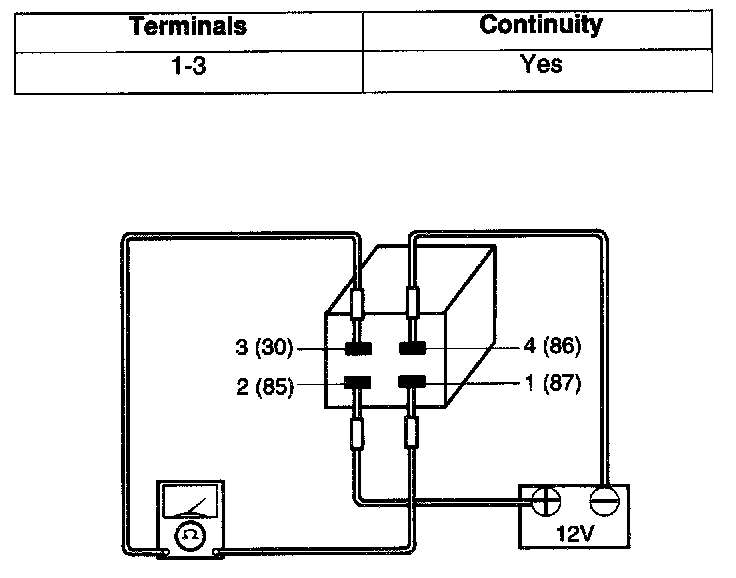

3. If not as specified, replace relay.
4. If correct, go to next step.
5. Apply 12V to terminal 2 and ground terminal 4.
6. Check for continuity between terminals 1 and 3.
7. If not as specified, replace relay.
