Headlamp: Testing and Inspection

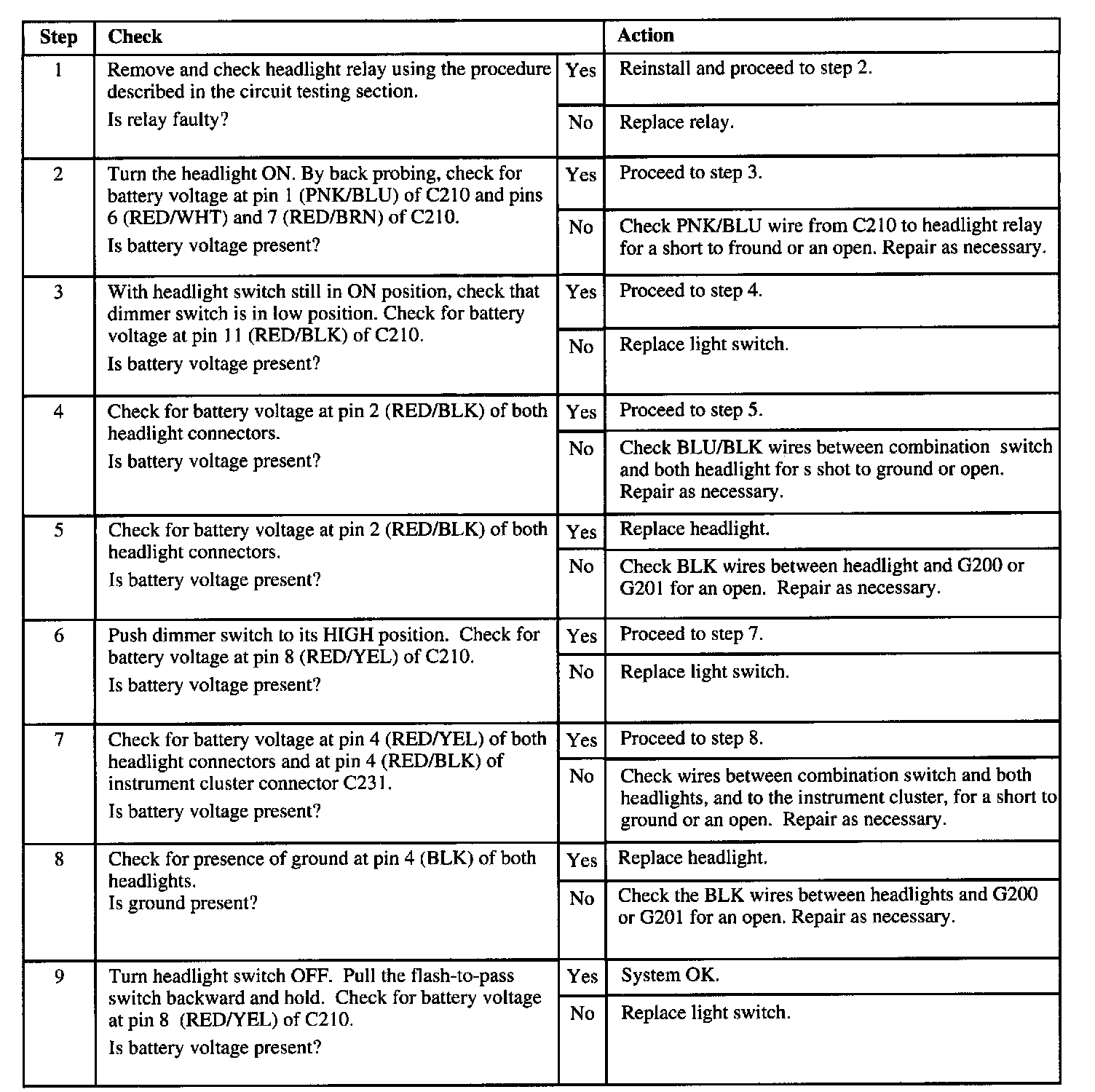

Headlight Does Not Operate (Lo, High, or Flash-to-Pass)
Preliminary Check: Check condition of "HEAD" fuse If fuse is open, locate and repair source of overload. Replace fuse.
