Backup Lamp: Testing and Inspection

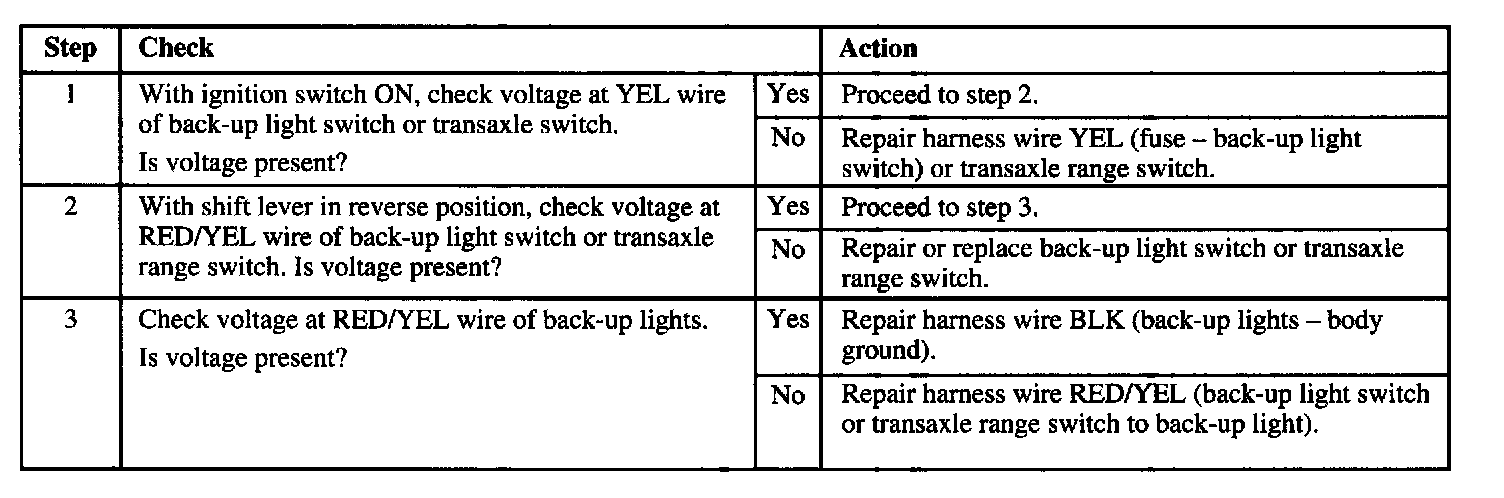

Back-up Lights Do Not Operate
Preliminary Check: Check condition of METER fuse. If fuse is open, locate and repair source of overload. Replace fuse. Also, check all applicable bulbs. If any bulb measures open, replace it.
