Condenser Fan: Service and Repair

REMOVAL

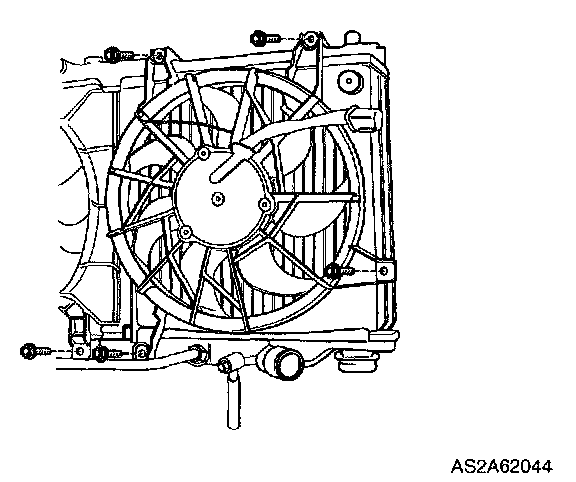

1. Disconnect condenser fan connector.




2. Remove bolts and remove condenser fan.

INSTALLATION
Install in reverse order of removal.
