Power Distribution

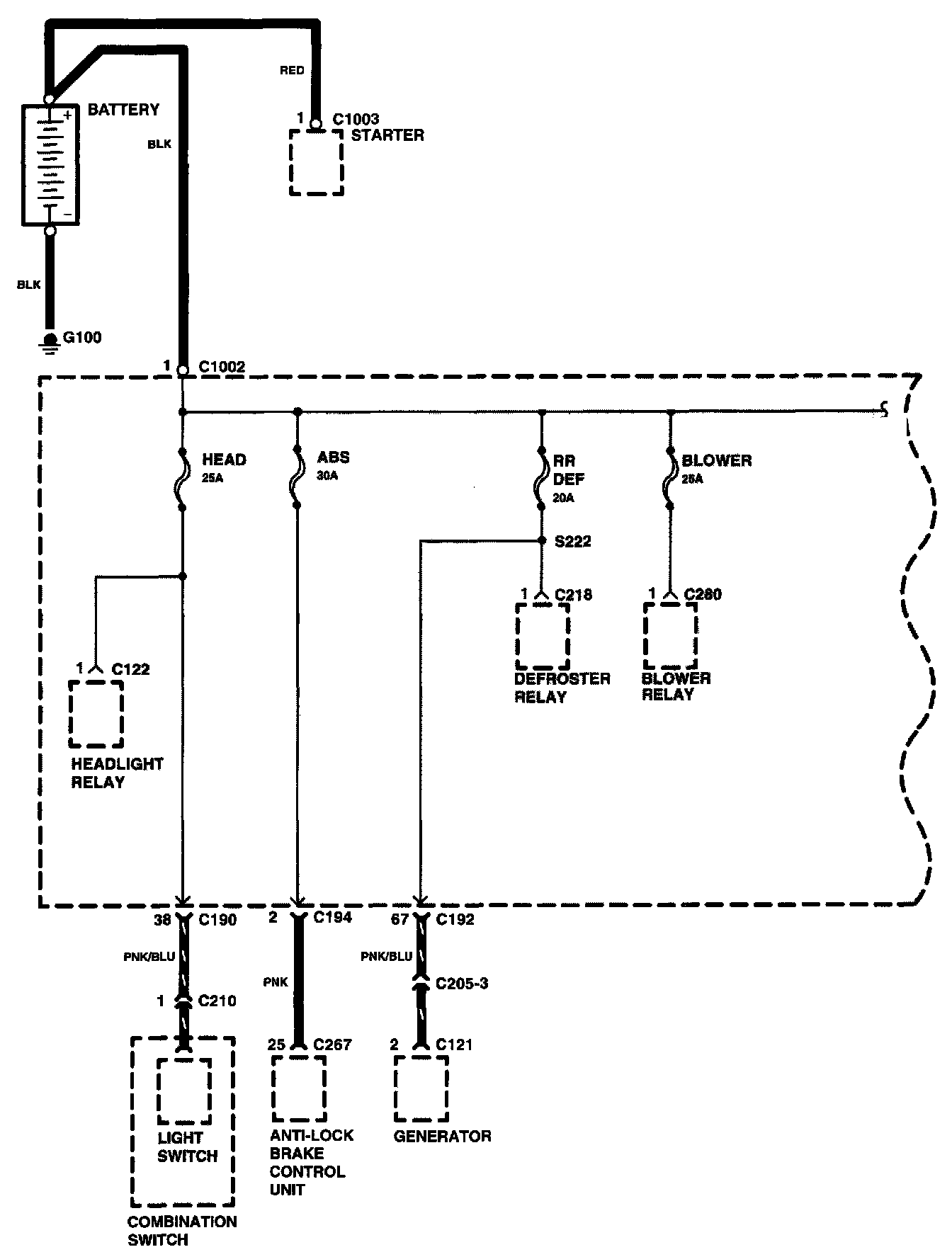

Power Distribution Part 1 Of 8:

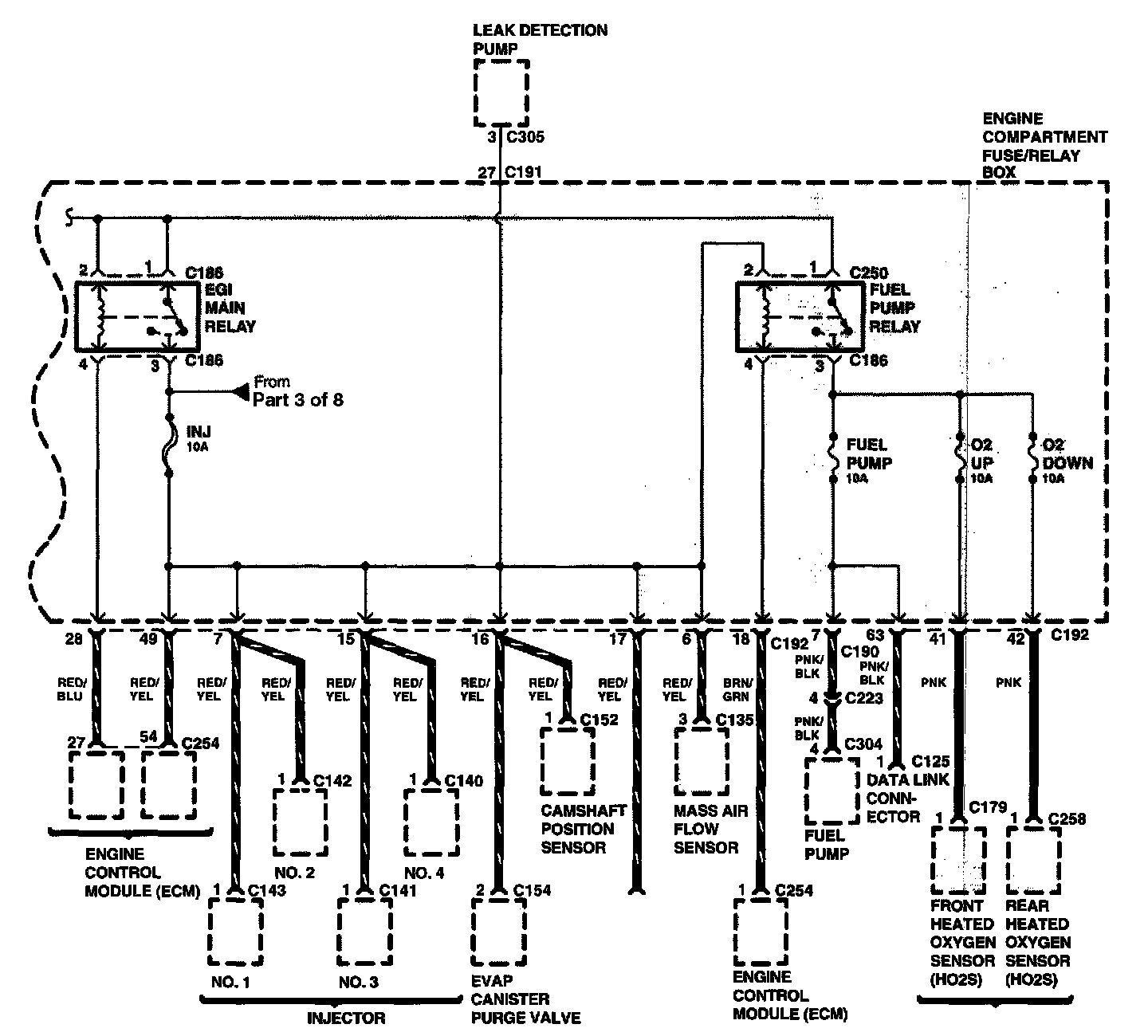

Power Distribution Part 2 Of 8:

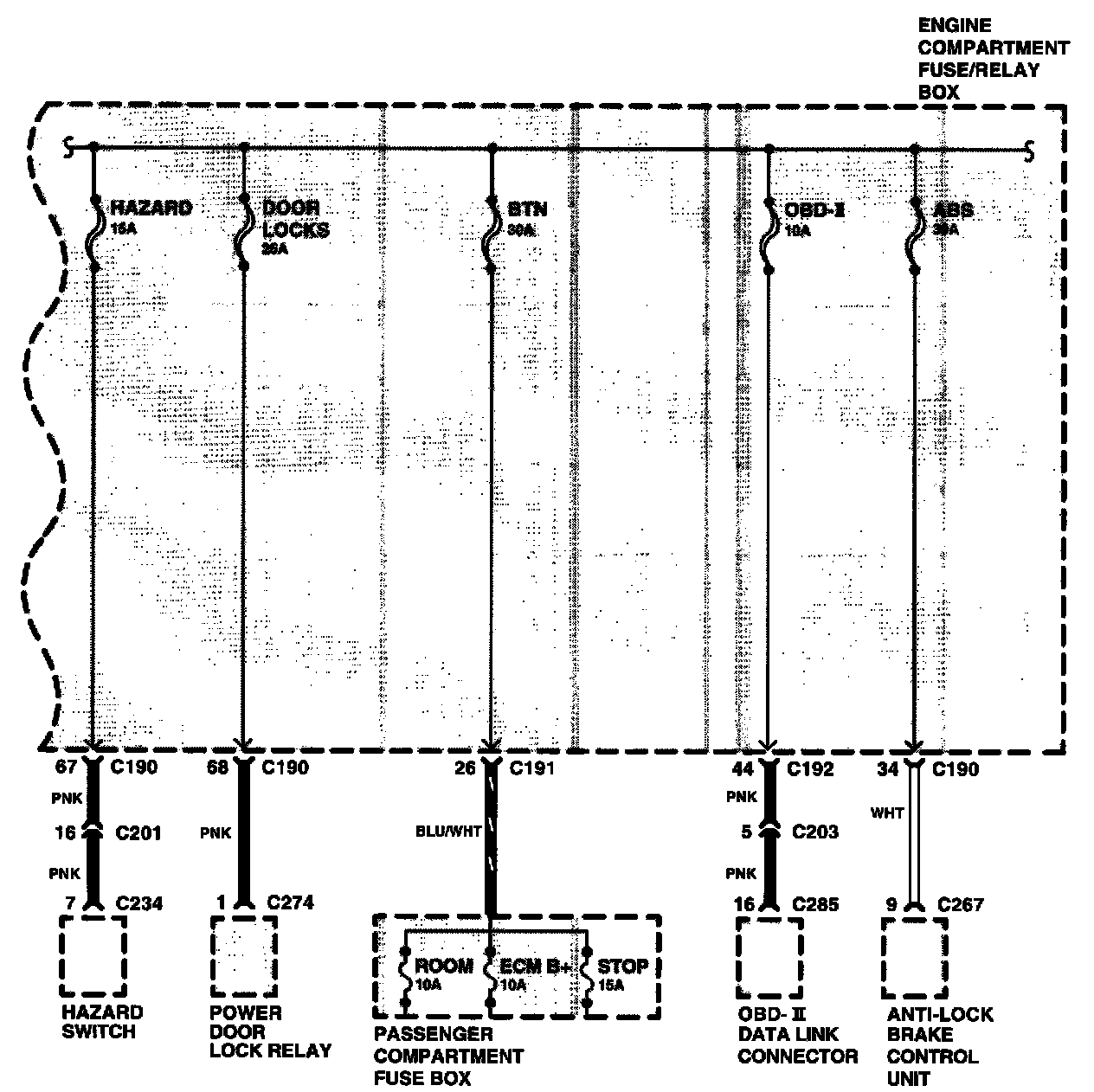

Power Distribution Part 3 Of 8:




Power Distribution Part 4 Of 8:

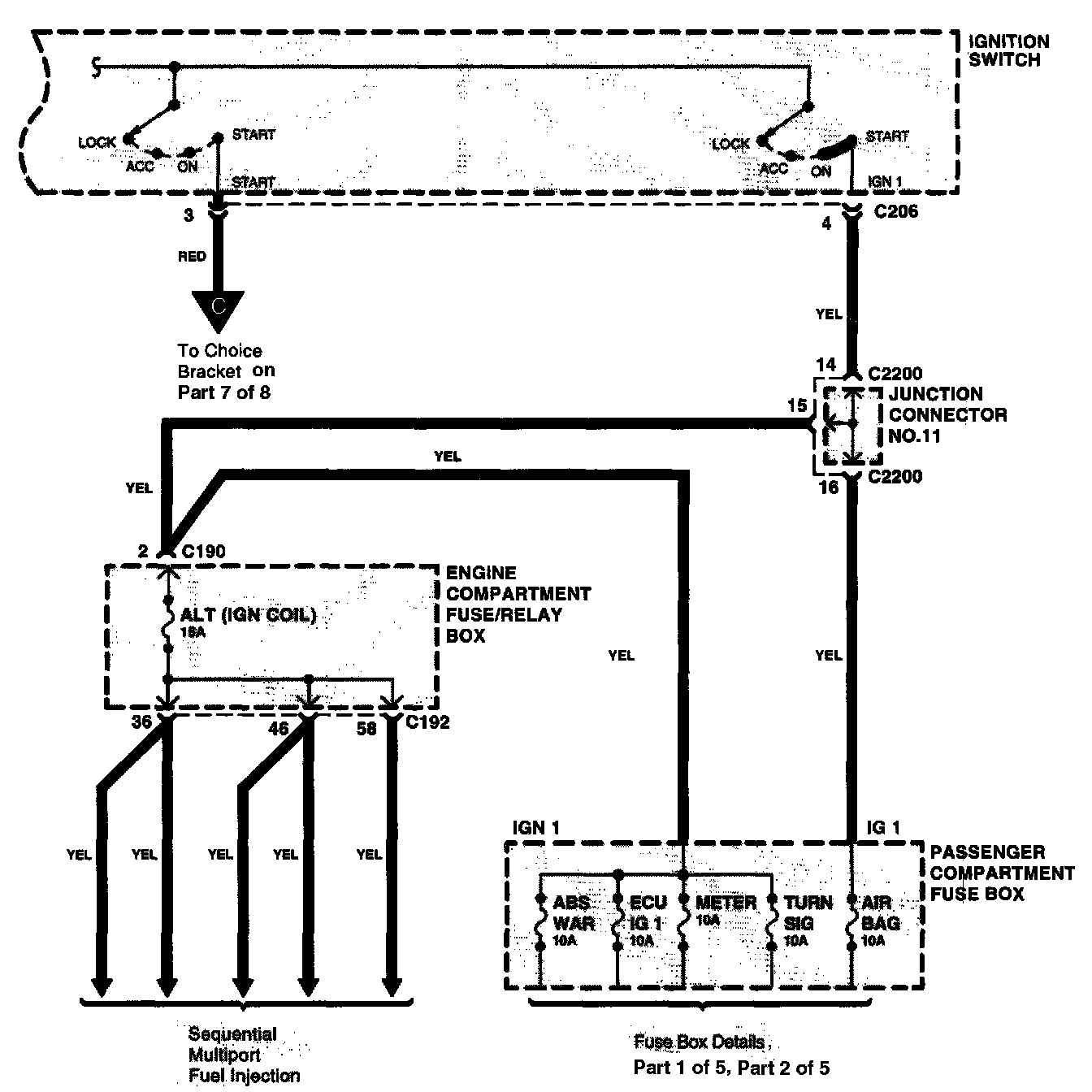

Power Distribution Part 5 Of 8:

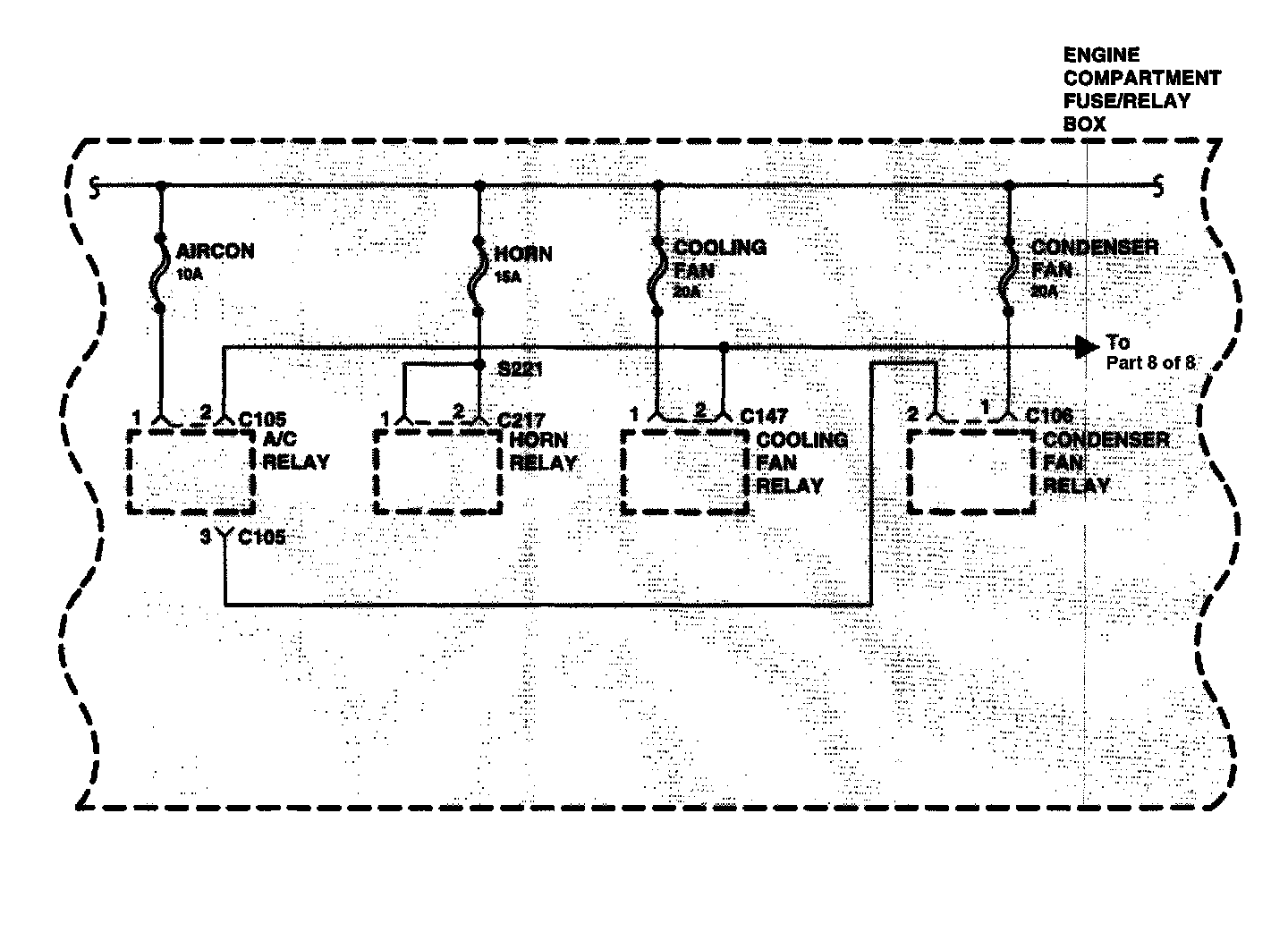

Power Distribution Part 6 Of 8:

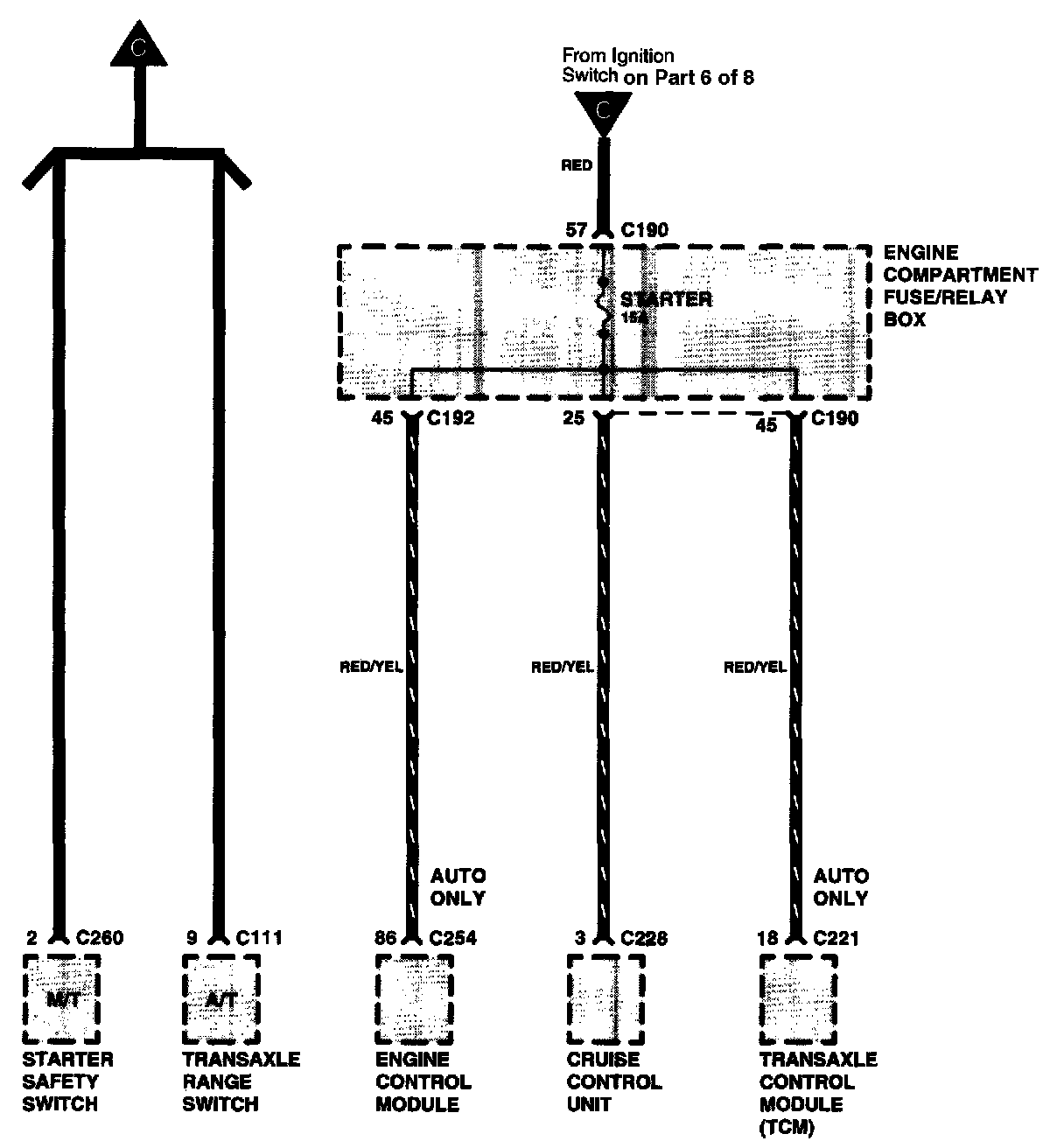

Power Distribution Part 7 Of 8:

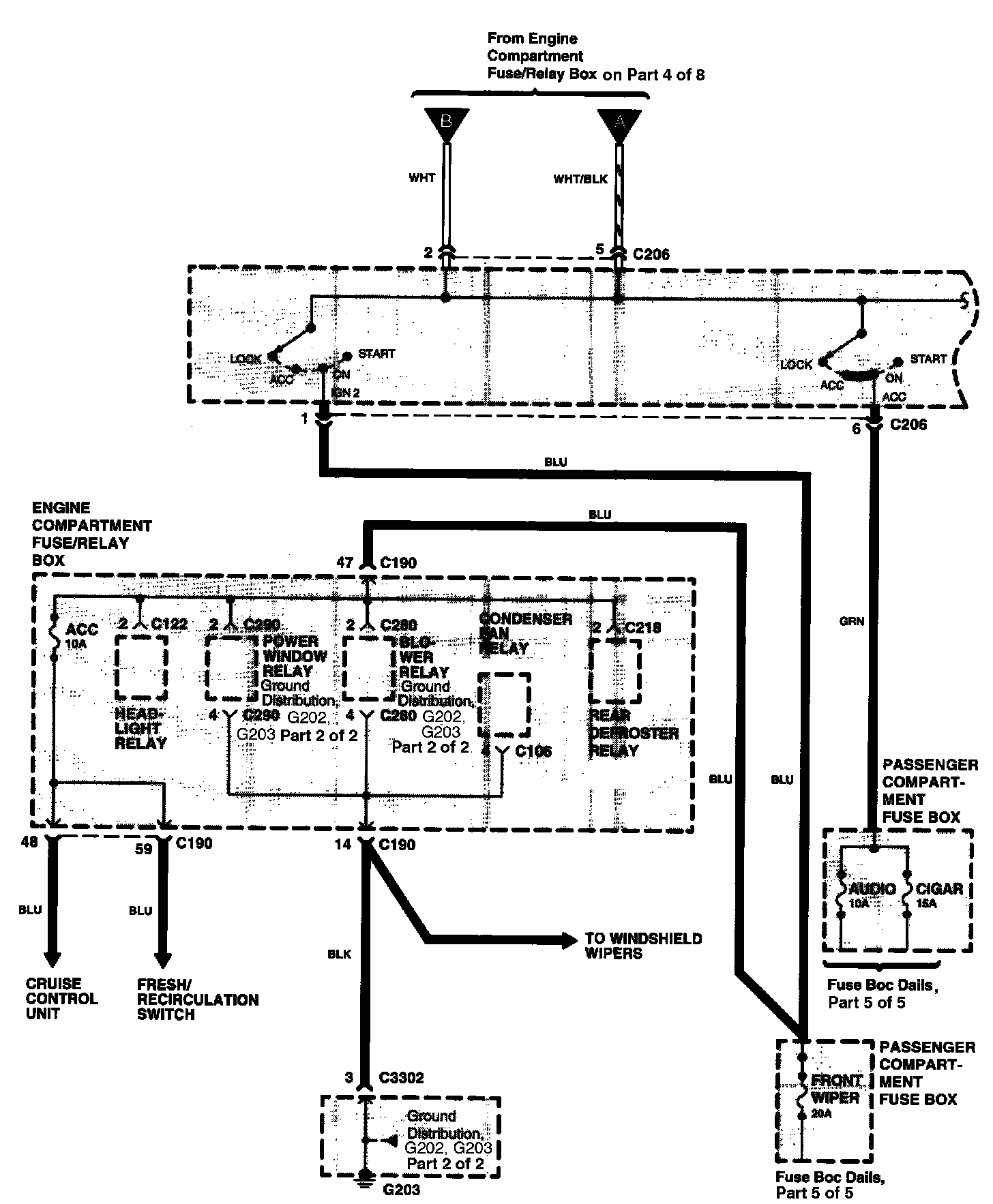

Power Distribution Part 8 Of 8:
