Home >> Kia >> 2000 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Dome Lamp

Dome Lamp

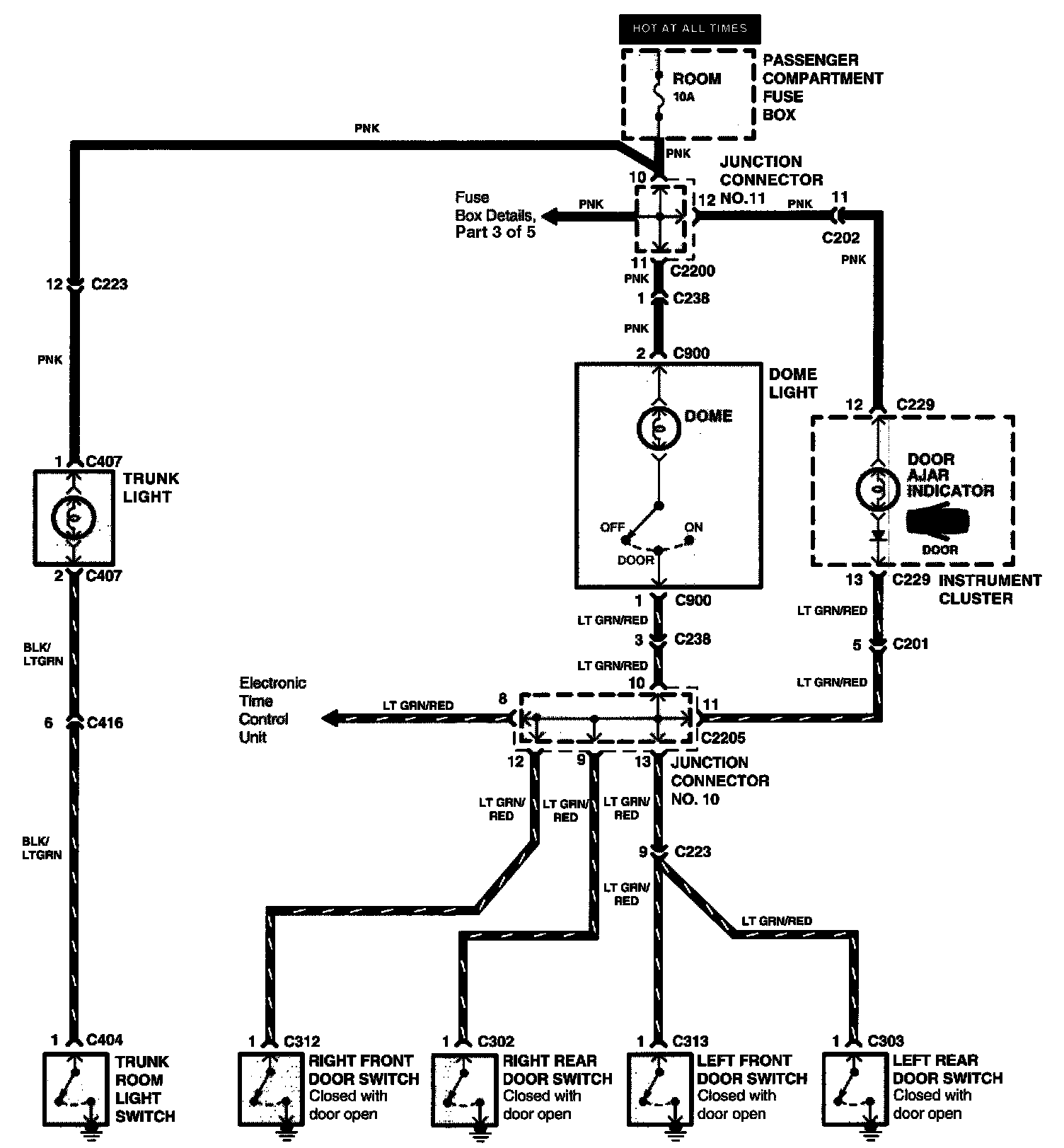

Part 1 Of 2:



Part 2 Of 2:
