Home >> Kia >> 2000 >> Spectra GS L4-1.8L >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Testing and Inspection

Drive Axles, Bearings and Joints: Testing and Inspection

DRIVESHAFT AND AXLE

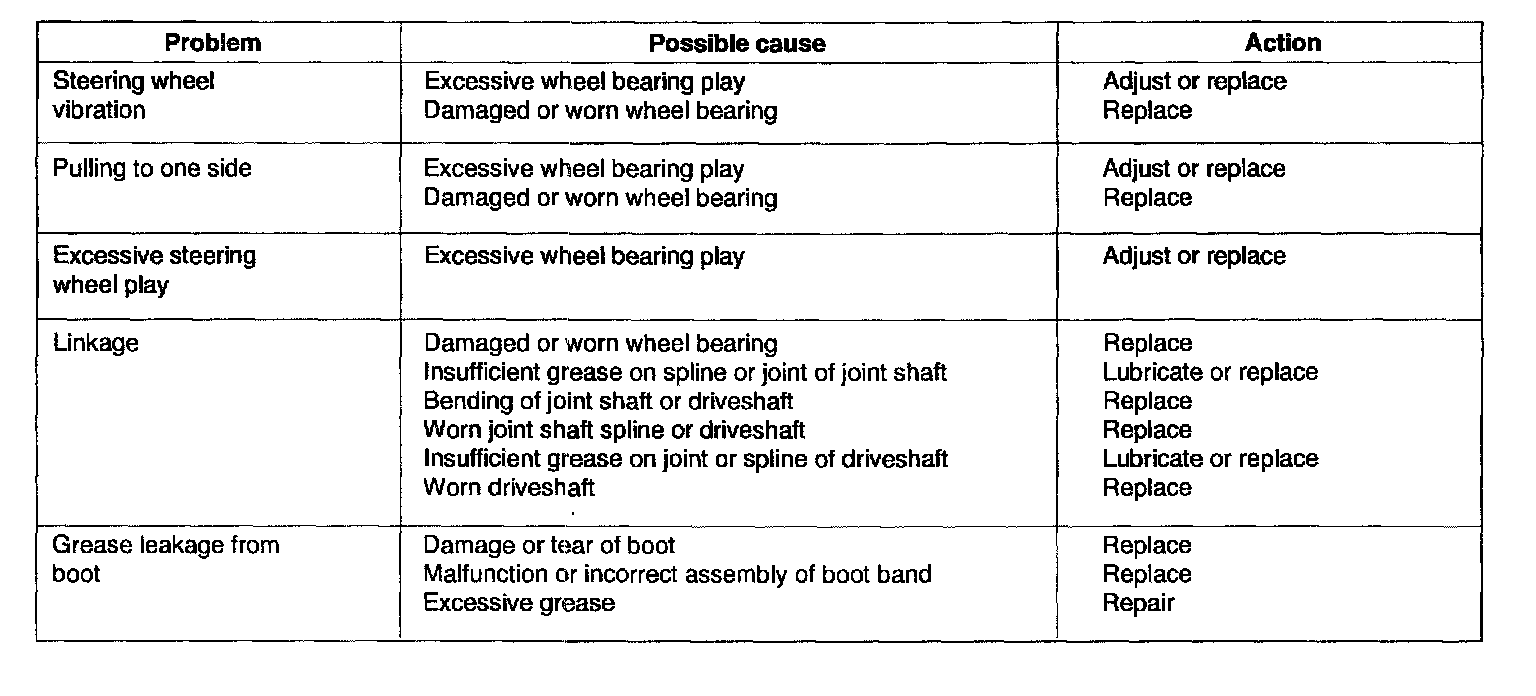

Front Axle

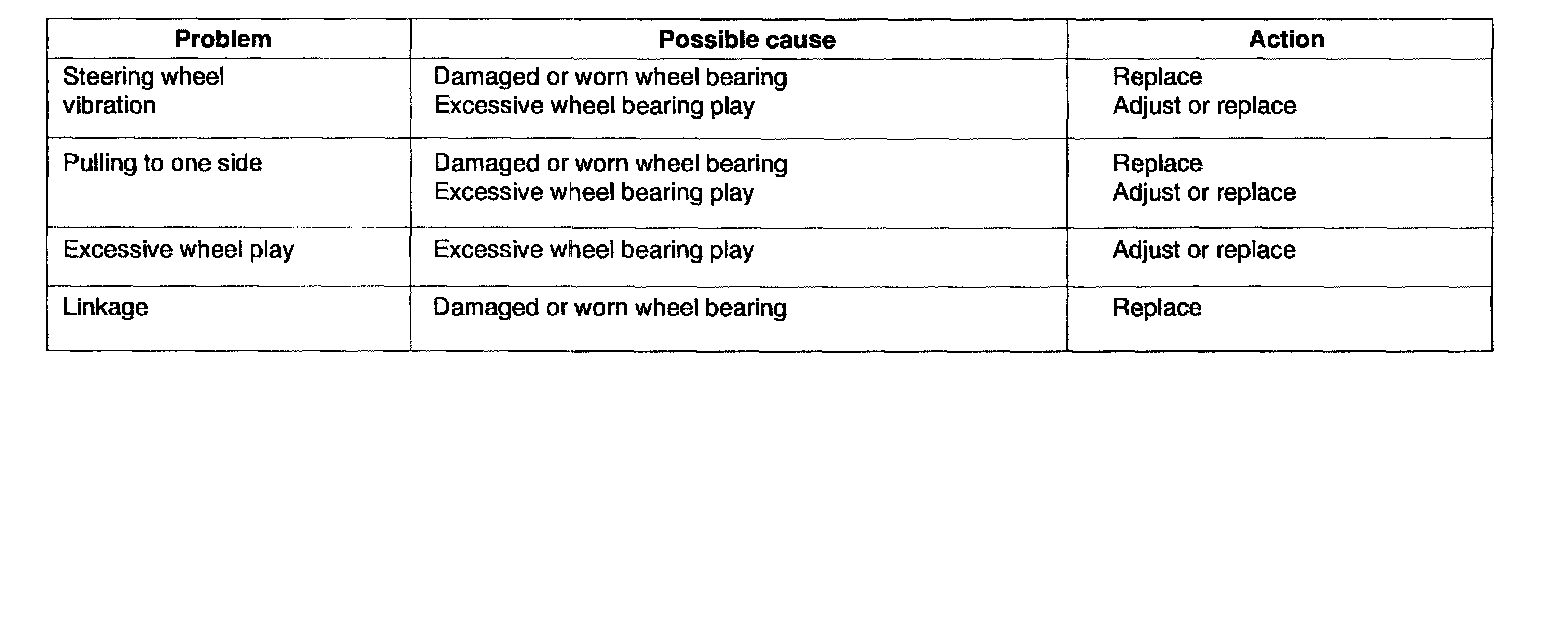

Rear Axle
