With Kia Scan Tool

Inspection procedure

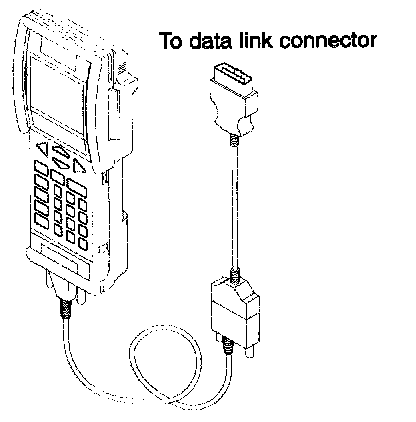

1. Connect SST (OK2A1 089 AAO) or KIA data pro scan tool to OBD-II data link connector.
2. Turn ignition switch ON.
3. Check diagnostic trouble code(s), referring to Kia power scan operating manual.
4. If a diagnostic trouble code(s) is displayed, check for cause by using number on diagnostic trouble code table. Repair as necessary.
5. After repairs, perform After-Repair procedure to verify that there are no remaining diagnostic trouble codes.

After-repair procedure
1. Cancel diagnostic trouble code memory by using SST (OK2A1 089 AAO) or KIA data pro scan tool.
2. Remove SST (OK2A1 089 AAO) or KIA data pro scan tool from OBD-II data link connector.

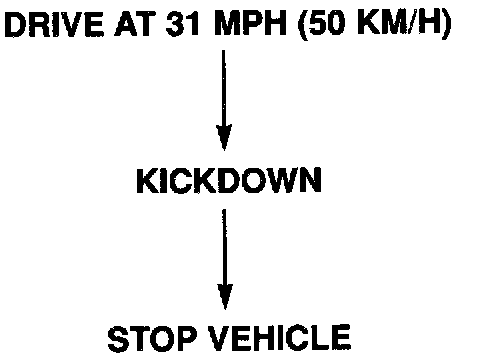

3. Drive vehicle at 31 mph (50 km/h), and depress accelerator pedal fully to activate kickdown. Stop vehicle gradually.
4. Connect SST(OK2A1 089 AAO) or KIA data pro
5. Turn ignition switch ON.
6. Verify that no diagnostic trouble codes are displayed.
7. Remove SST (OK2A1 089 AAO) or KIA data pro scan tool from OBD-II data link connector.
