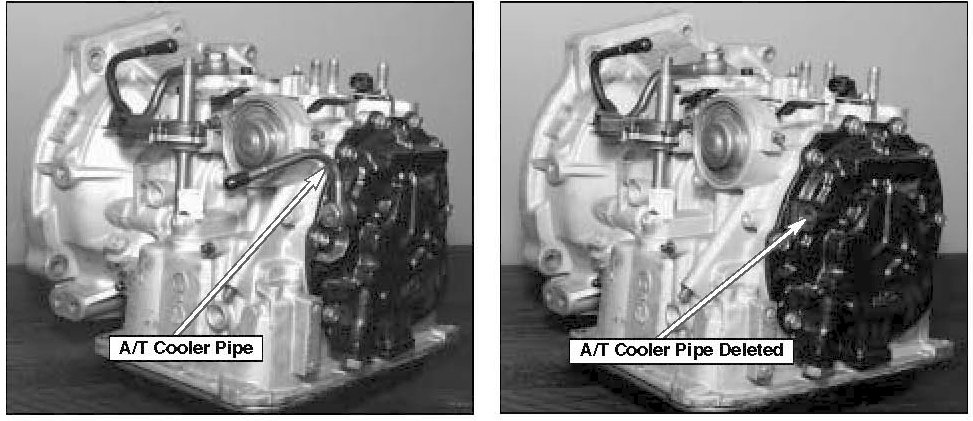

2002 Spectra models have a new A/T P/N 0K2N6 19090 which uses a different transmission cooler pipe. In order to use the same remanufactured A/T part number for 1998 to 2002 Sephia and Spectra models, the cooler pipe will be deleted from remanufactured A/T P/N RK2A6 19 090 as shown in photos.

When replacing a transmission in a 1998 to 2002 MY vehicle, the cooler pipe must be transferred from the removed A/T to the remanufactured unit using the new copper sealing washers shipped with the remanufactured unit. Tighten cooler pipe bolt to 18-26 lb-ft.

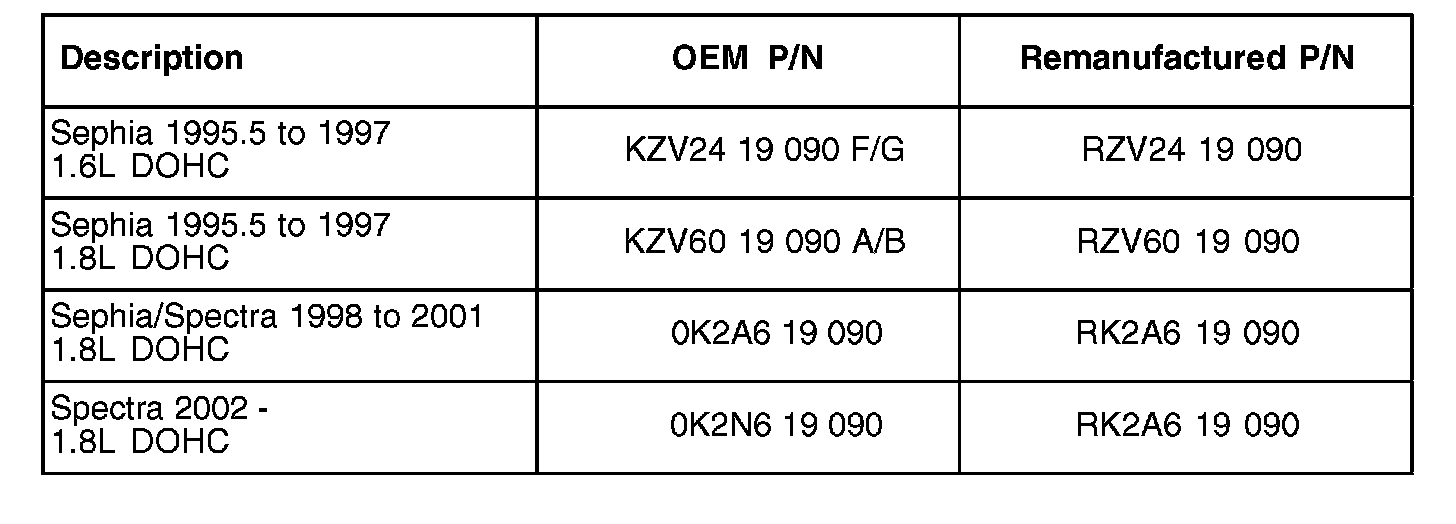

APPLICABLE YEAR AND PART NUMBER INFORMATION:

A/T - Cooler Tube Deletion/Transfer
