Replacement

1. Align the stabilizer bushing with the installation position line painted on the stabilizer bar. Locate the bushing adjacent to the position line on stabilizer bar.

2. Position stabilizer behind crossmember.

3. Raise the crossmember into place and tighten six mounting bolts to specified torque.
Tightening torque: 69 - 93 ft. lbs. (93 - 127 Nm)

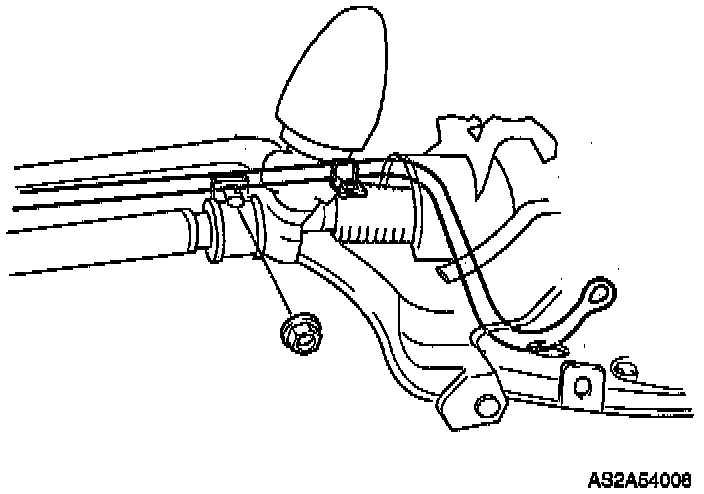

4. Tighten the two nuts of the steering rack mounting bracket to specified torque.
Tightening torque: 23 - 34 ft. lbs. (31 - 46 Nm)

5. Install the stabilizer control link to the lower arm bracket and stabilizer bar, then tighten the two control-link nuts.
Tightening torque: 32 - 45 ft. lbs. (43 - 61 Nm)

NOTICE: Tighten the two control-link nuts to specified torque before lowering vehicle (unload condition).
