Reassembly

1. Install two O-rings on side plate.

2. Install side plate.

3. Align side plate pin holes to ease installation of rear body.





4. Install rotor with rotor identification mark facing up.





5. Install ten vanes with flat portions facing inside rotor.

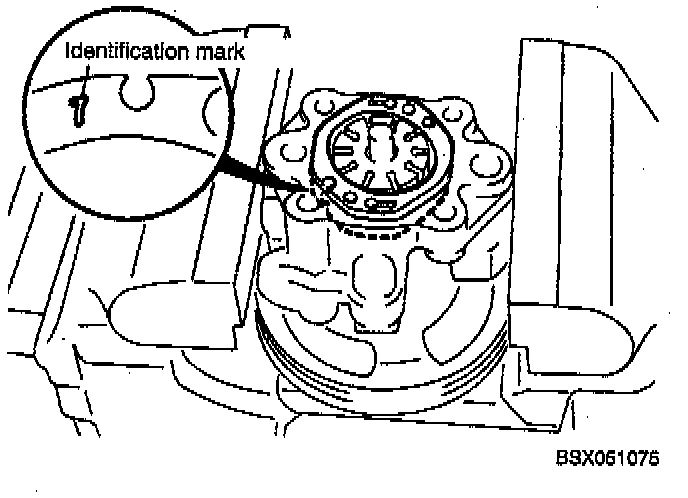

6. Install cam ring with identification mark facing down.

7. Install rear body O-ring.

8. Install rear body.

9. Install and tighten four rear body bolts.
Tightening torque: 13 - 16 ft. lbs. (18 - 22 Nm)

10. Install spring and control valve in power steering pump valve bore.

11. Install four O-rings on connector.

12. Install and tighten connector.
Tightening torque: 36 - 51 ft. lbs. (49 - 69 Nm)

13. Install suction pipe O-ring in power steering pump.

14. Install suction pipe and two suction pipe bolts.
Tightening torque: 5 - 6 ft. lbs. (6 - 9 Nm)

15. Position bracket to power steering pump and install two bracket bolts.
Tightening torque: 22 - 29 ft. lbs. (29 - 39 Nm)
