Backup Lamp Switch
>>
Testing and Inspection
>>
Manual Transaxle
Manual Transaxle
1.
Remove the back-up light switch connector.
2.
Shift to the reverse position.
3.

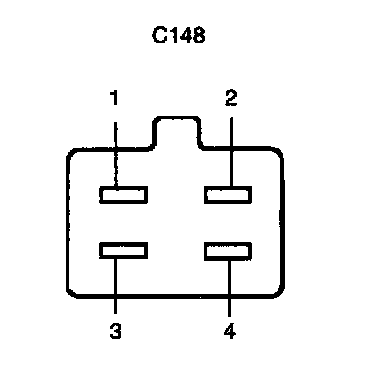

Confirm continuity between C148-1 (YEL) and C148-3 (RED/YEL) wire of the transaxle connector.
