Speed Sensor

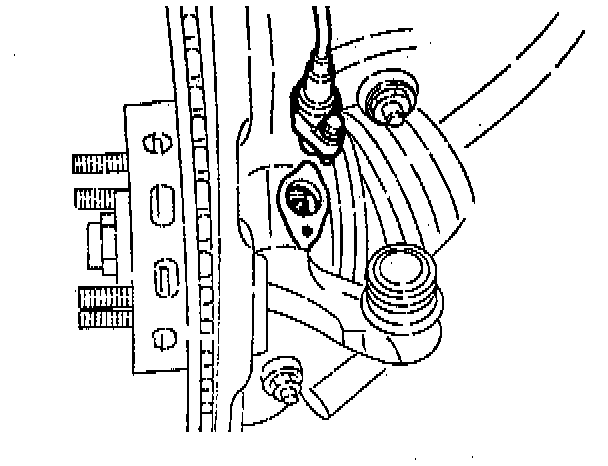

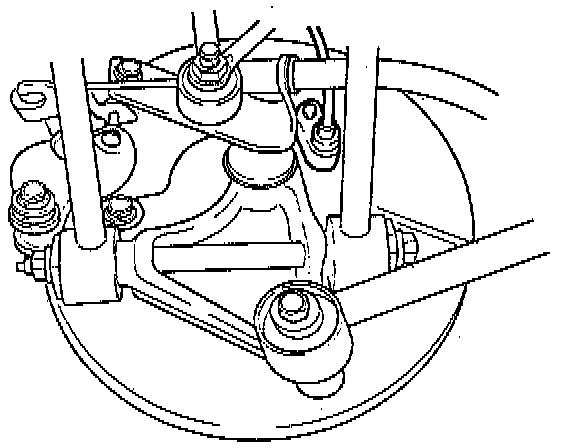

The speed sensor detects wheel rotation and consists of a permanent magnet and pickup coil. Sensors for the front wheels are attached to driveshaft, and sensors for the rear wheels are attached to rear hub spindle.
