Heated Glass Element Relay: Testing and Inspection
1.

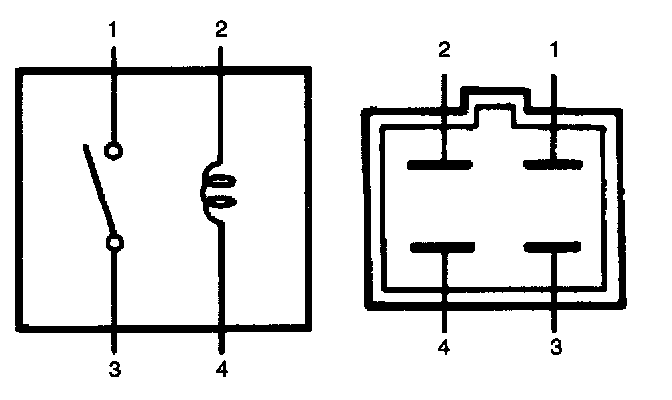

Disconnect the rear window defroster relay connector and remove the relay.
2.

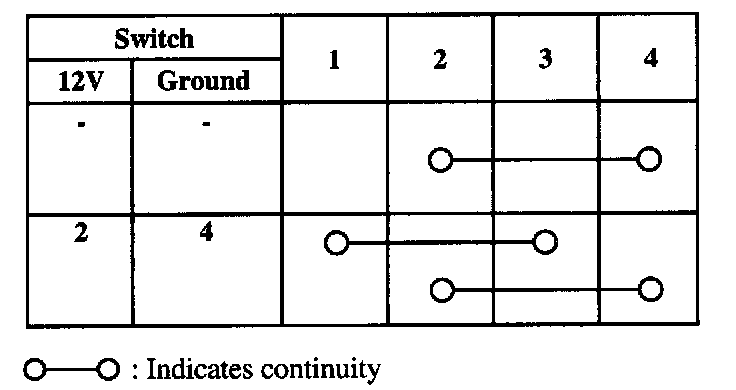

Check for continuity between the terminals of the relay.
