Quick Connectors

Removal


Notice
Release fuel system pressure before servicing any fuel system connection.
Fuel Pressure Release





1. Push quick connector to direction"A".
2. Squeeze both sides of lock retainer and pull connection apart to direction "B".

Caution
Don't push and pull too hard

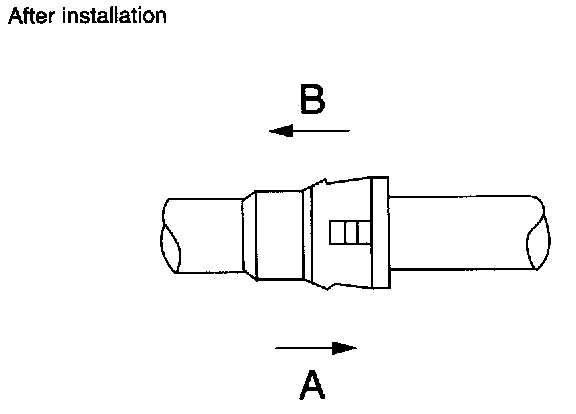

Inspection





Once installed, pull and push quick connector to direction "A" and "B" to make sure the connection is secure.

Notice
Don't press lock retainer.

Installation






Position quick connector to male pipe(direction "A") and push quick connector until retainer lock in and a click is heard.
