Rear Wheel Alignment

ADJUSTMENTS

Note: See Specifications / Mechanical for alignment specifications.

Notice: Rear camber is not adjustable.

Toe (total)
1. Check that fuel tank is full; radiator coolant and engine oil are at specified levels; and spare tire, jack and tools are in their designated positions. Vehicle must be on a level surface.
2. Measure rear toe angle with a toe angle gauge.
3. If specification is not met, loosen rear lateral link jam nuts.

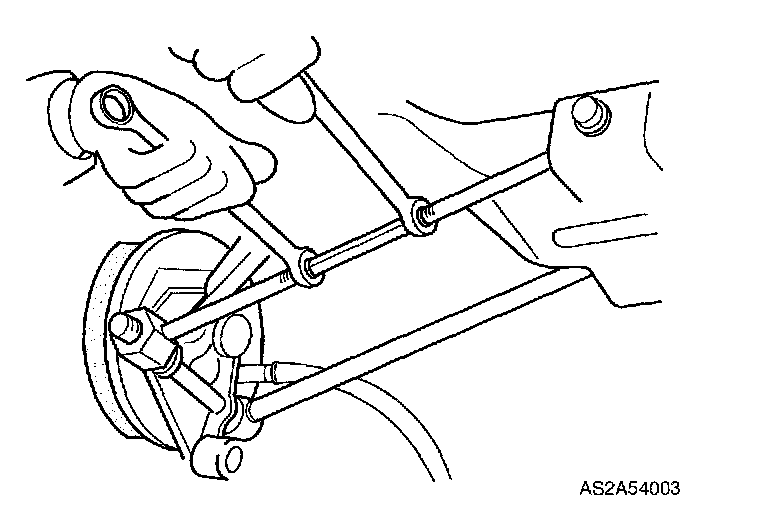

4. Turn lateral link adjuster to adjust left or right rear wheel as needed.

NOTICE: One turn of link changes toe approximately 0.12 inch (3 mm).

5. Repeat for other side if necessary.
6. Tighten lateral link jam nuts to specified torque.
Tightening torque: 85 - 115 ft. lbs. (116 - 157 Nm)
