Installation

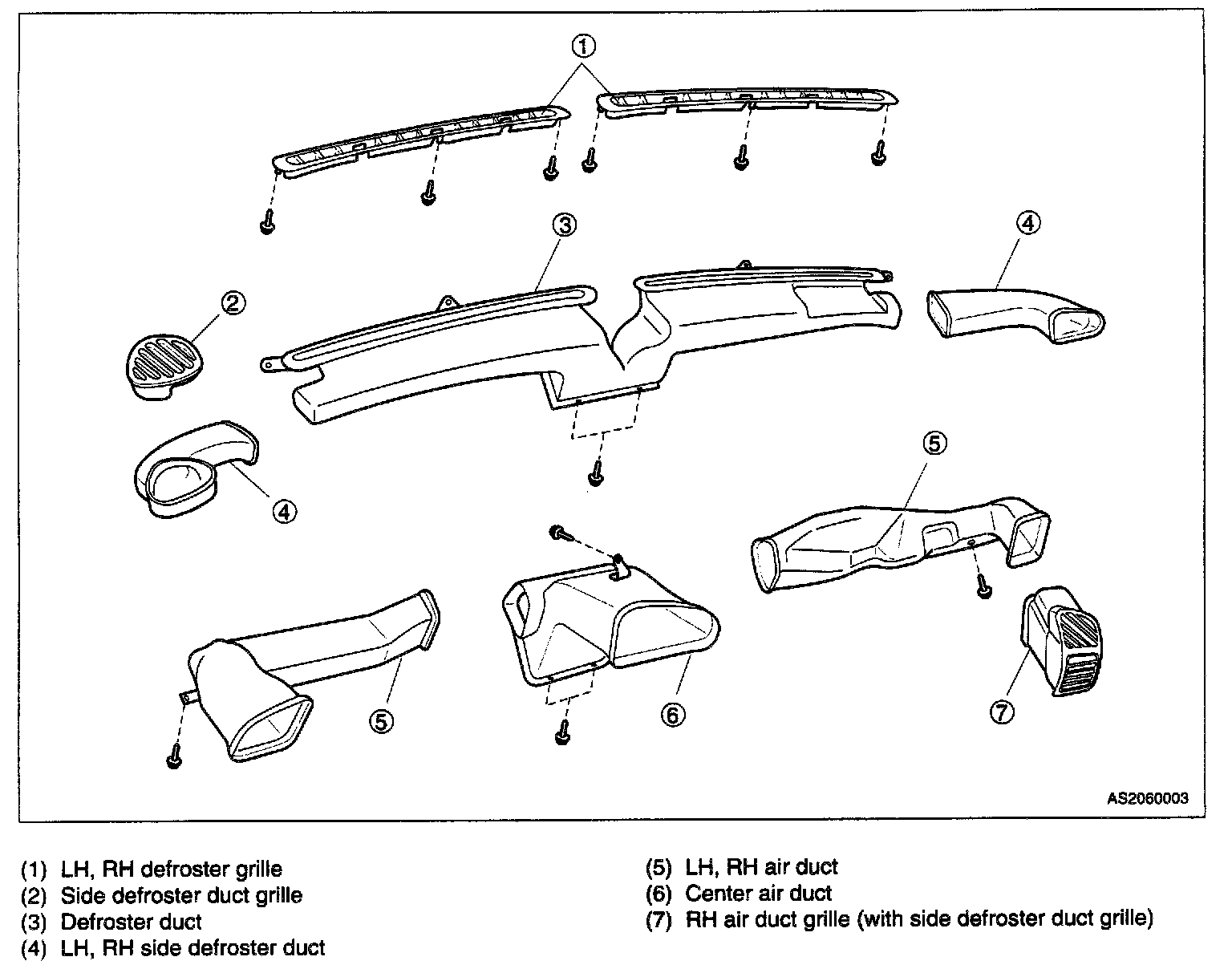

Ducts:

1. Install center air duct.
2. Install RH air duct.
3. Install LH air duct.
4. Install RH side defroster duct and RH defrost grille.
5. Install LH side defroster duct and LH defrost grille.
6. Install mounting screws holding duct parts to instrument panel.
