Power Locks: Testing and Inspection

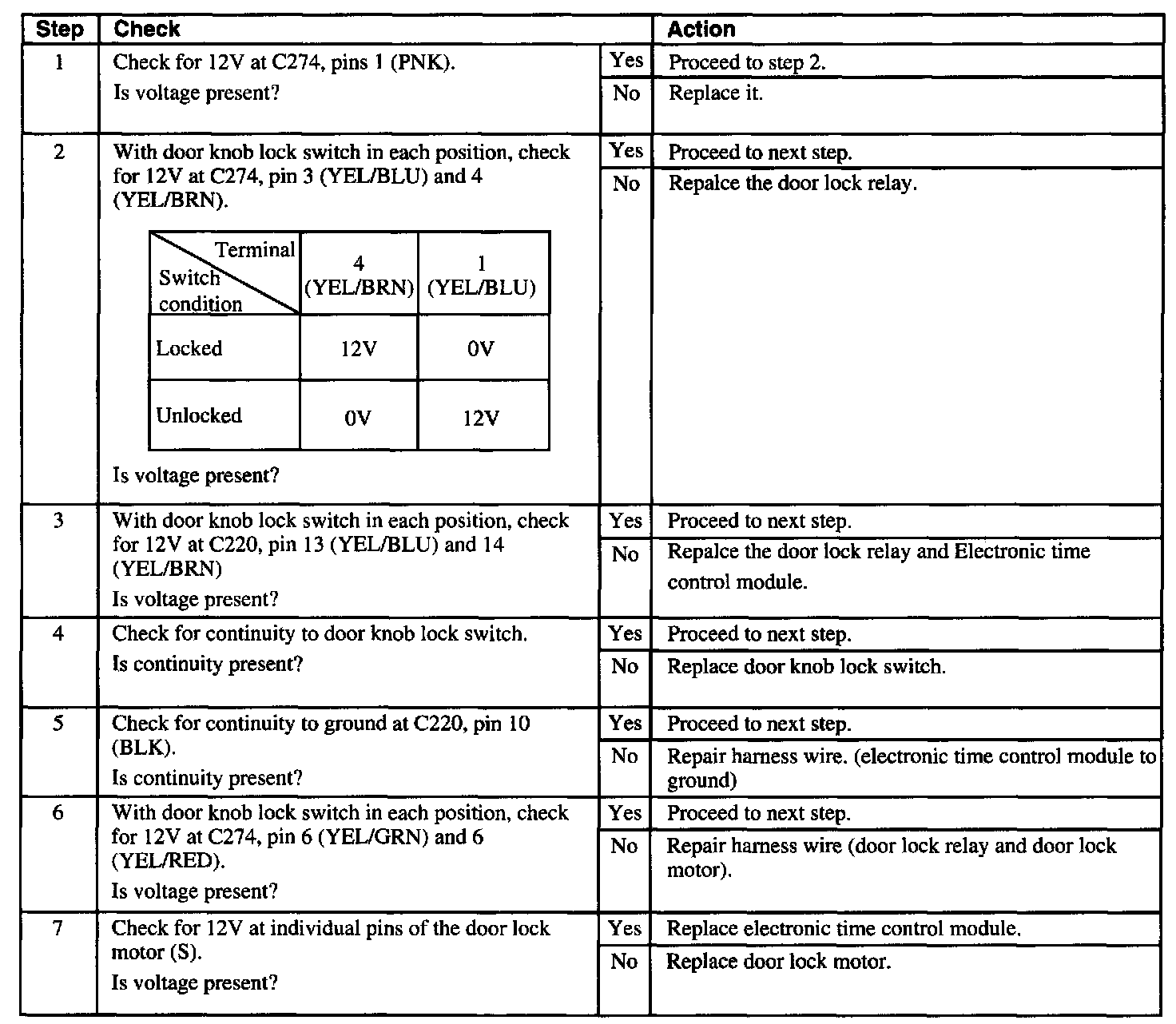

Power Door Lock System Does Not Operate
Preliminary Check: Check condition of DOOR LOCK fuses. If either fuse is open, locate and repair source of overload. Replace fuse. If only one (1) door lock does not function, skip steps 1-4 and perform step 5 for that specific door.
