Power Door Lock Cylinder

REMOVAL

1. Disconnect negative battery cable.

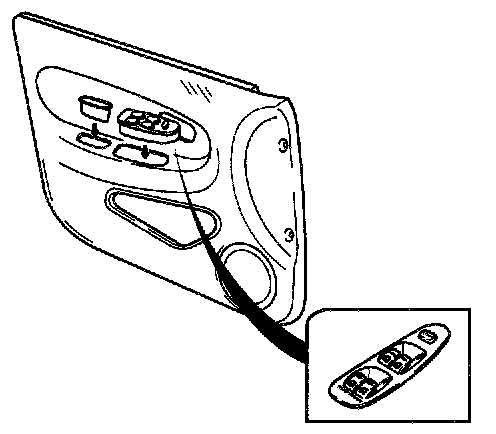

2. Remove door trim.

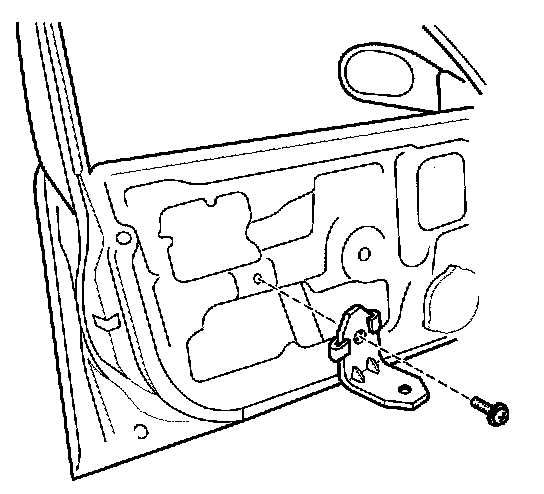

3. Remove one screw on pull handle bracket.
4. Remove pull handle bracket.

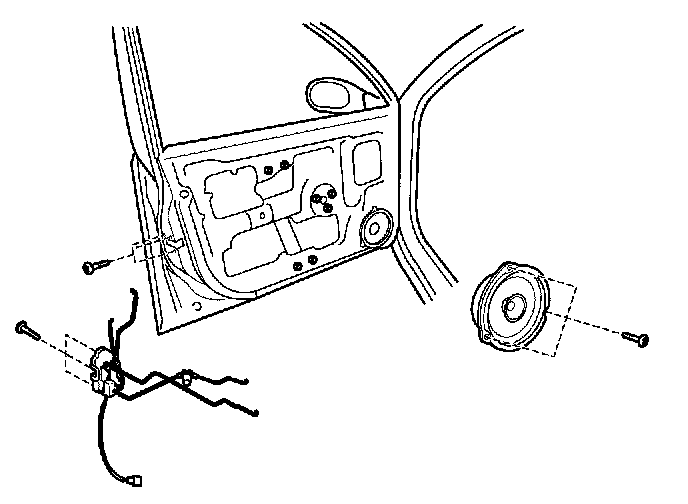

5. Remove speaker.
a. Remove three screws on door speaker.
b. Unfasten harness connector from door frame.
c. Pull out speaker and disconnect connectors

NOTE: Peel plastic moisture barrier off carefully so that it can be reused.

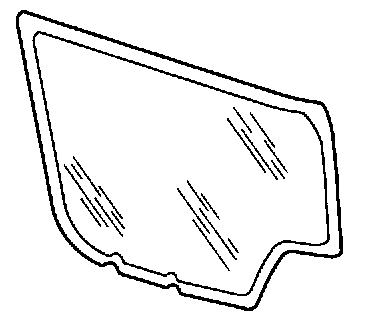

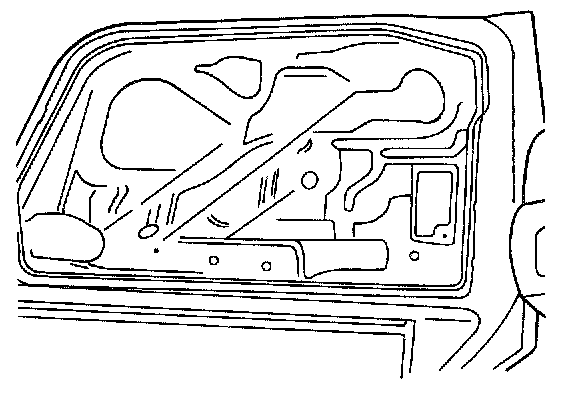

6. Peel off plastic moisture barrier carefully by pulling it away gradually from door frame.

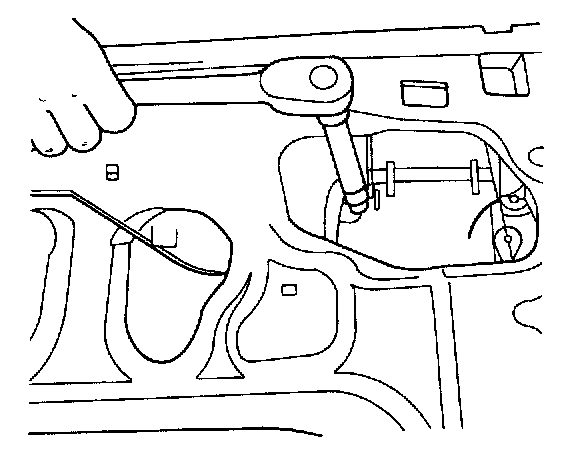

7. Disconnect outside door handle rod of door lock assembly from outside door handle.
8. Disconnect lock cylinder rod of door lock assembly from door lock cylinder of door handle.
9. Remove two mounting bolts on outside door handle.
10. Remove outside door handle.
11. Remove lock cylinder retainer from outside door handle.

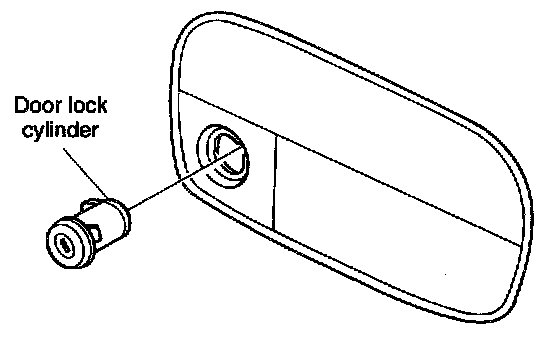

12. Remove lock cylinder from outside door handle.

INSTALLATION

1. Install lock cylinder in outside door handle.
2. Install lock cylinder retainer on outside door handle.
3. Position outside door handle as originally positioned.




4. Install two mounting bolts.

Tighten two mounting nuts to
78-113 lb-in (9-13 N.m, 90-130 kg-cm)

5. Connect lock cylinder rod of door lock assembly to door lock cylinder of door handle.




6. Connect outside door handle rod of door lock assembly to outside door handle.




7. Install plastic moisture barrier.
a. Fasten plastic moisture barrier.
b. Route electrical harness connector through plastic moisture barrier.
c. Pull out remote control rod for inside door handle through plastic moisture barrier.

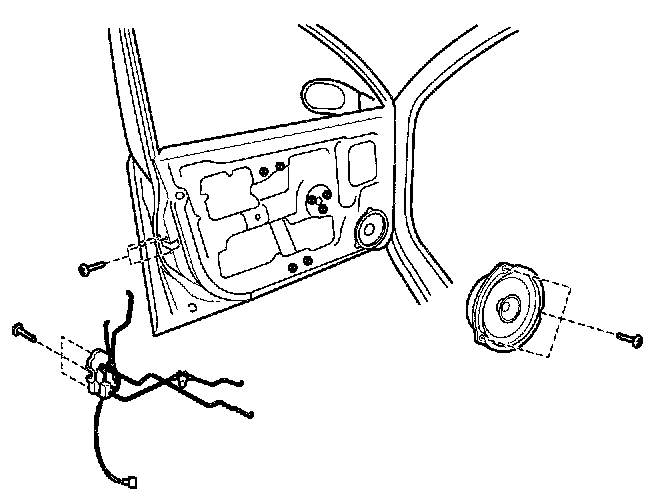

8. Install speaker with three mounting screws.
9. Install door pull handle bracket with one mounting screw.
10. Install door trim.




11. Connect negative battery cable.
