Installation

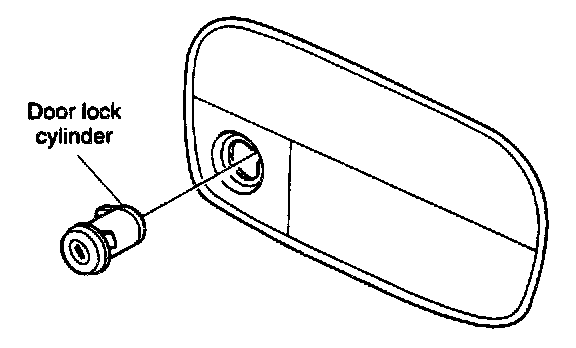

1. Install lock cylinder in outside door handle.
2. Install lock cylinder retainer on outside door handle.
3. Position outside door handle as originally positioned.

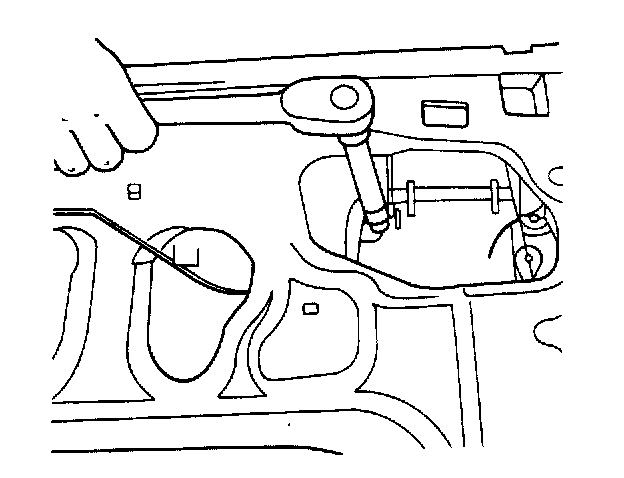

4. Install two mounting bolts.
Tighten two mounting nuts to 78 - 113 lb.in (9 - 13 Nm, 90 - 130 kg.cm)
5. Connect lock cylinder rod of door lock assembly to door lock cylinder of door handle.




6. Connect outside door handle rod of door lock assembly to outside door handle.

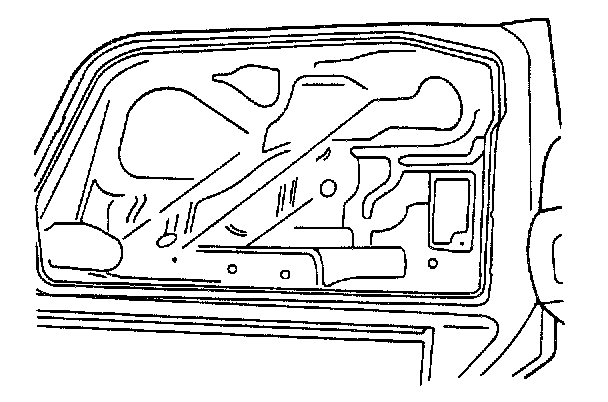

7. Install plastic moisture barrier.
a. Fasten plastic moisture barrier.
b. Route electrical harness connector through plastic moisture barrier.




c. Pull out remote control rod for inside door handle through plastic moisture barrier.




8. Install speaker with three mounting screws.
9. Install door pull handle bracket with one mounting screw.

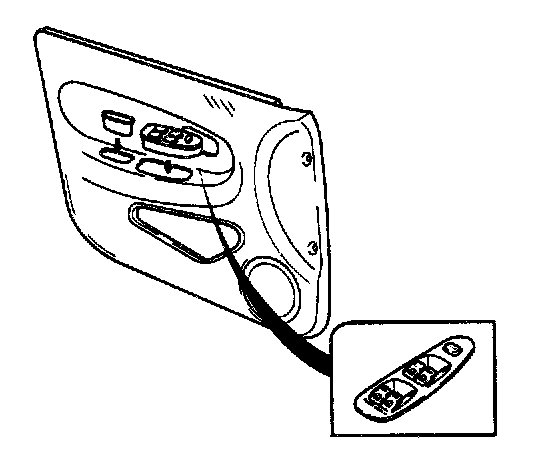

10. Install door trim. Refer to "Trim".




11. Connect negative battery cable.
