C-Pillar Trim

REMOVAL

1. Remove rear seat cushion.

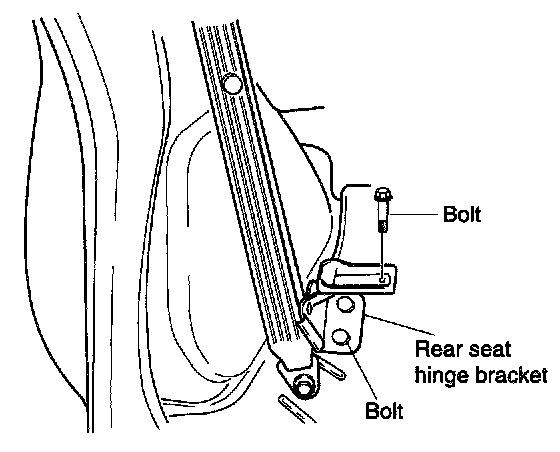

2. Remove lower anchor bolt of safety belt.

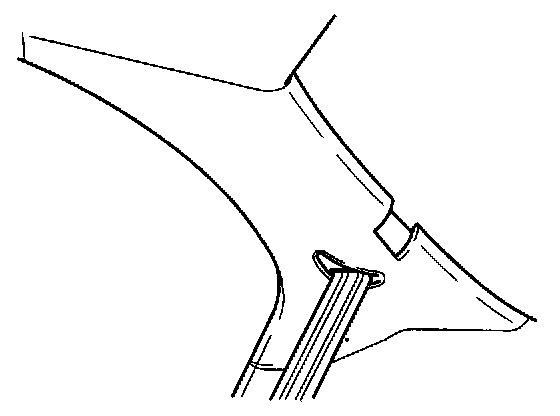

3. Unfasten C-pillar trim.
4. Remove C-pillar trim.

INSTALLATION

1. Position C-pillar trim and press in.
2. Install lower anchor bolt of safety belt.

Tighten one bolt to
29-58 lb-ft (38-78 N.m, 3.9-8.0 kg-m)




3. Install rear seat cushion.
