Upper Trim

REMOVAL

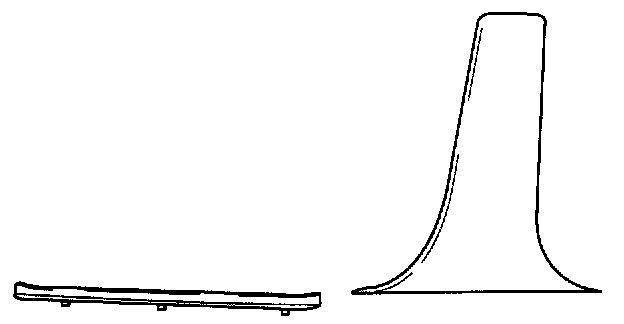

1. Unfasten B-pillar lower trim with a trim removal tool.
2. Remove B-pillar lower trim.

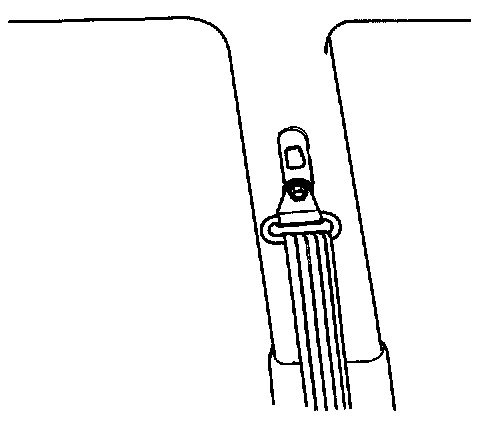

3. Remove safety belt anchor bolt.
a. Unfasten safety belt.
b. Remove one bolt.

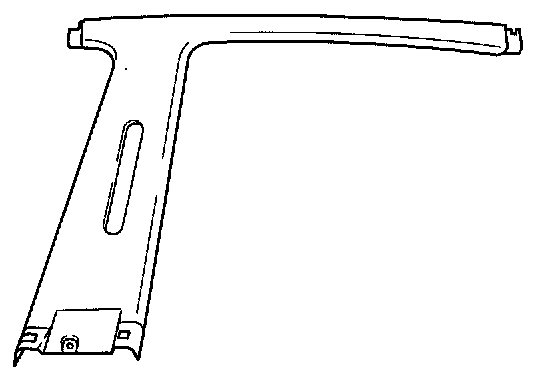

4. Remove one screw from B-pillar upper trim.




5. Remove B-pillar upper trim with a trim removal tool.

INSTALLATION

1. Position B-pillar upper trim.
2. Install one screw.




3. Install safety belt anchor:
a. Install one bolt on seat belt anchor.

Tighten one bolt to
29-58 lb-ft (38-78 N.m, 3.9-8.0 kg-m)

b. Fasten safety belt.

4. Position B-pillar lower trim.
5. Press B-pillar lower trim in to fasten clips.
