Home >> Kia >> 2000 >> Spectra GS L4-1.8L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1586

P1586

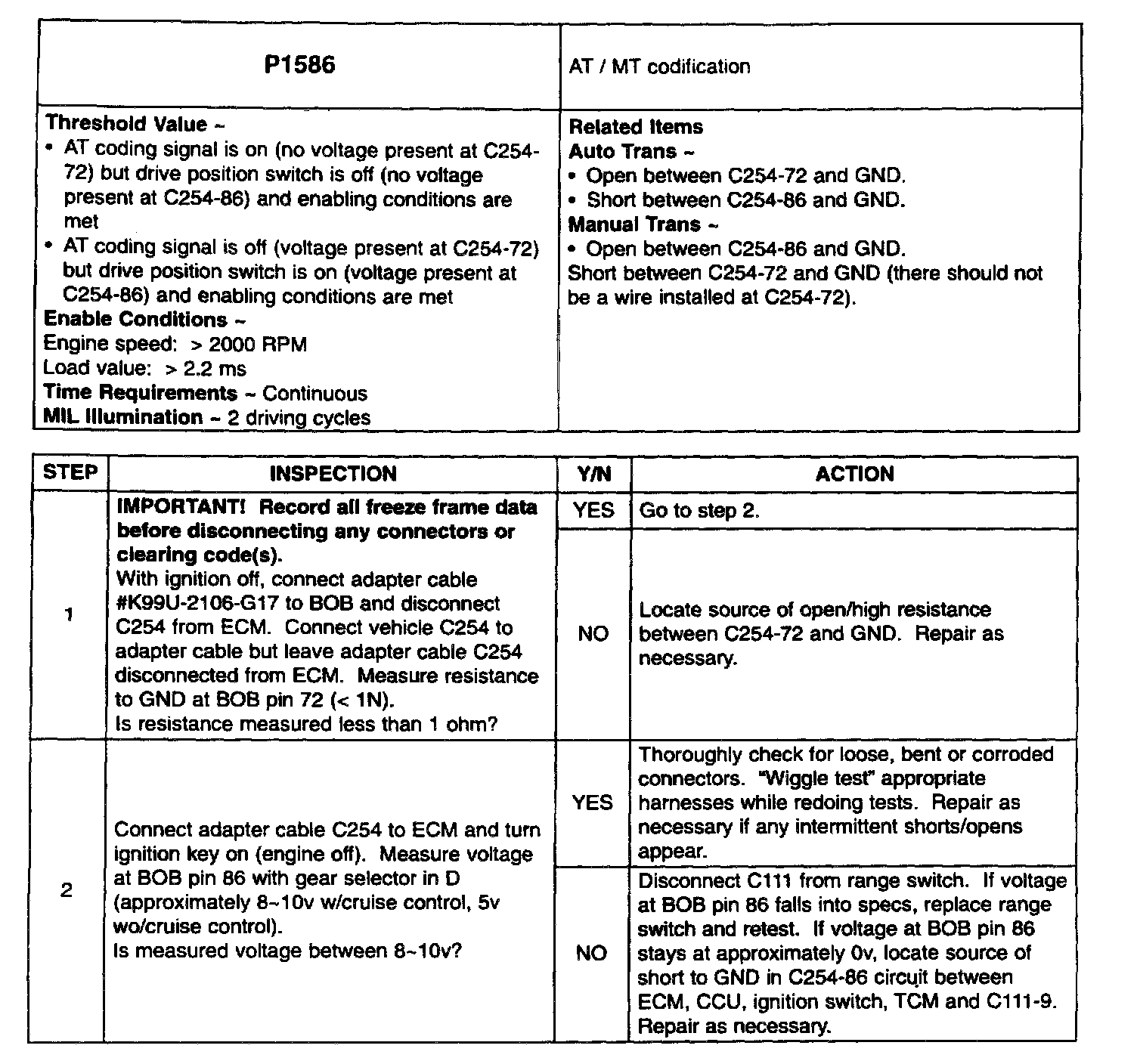

Step 1 - 2:

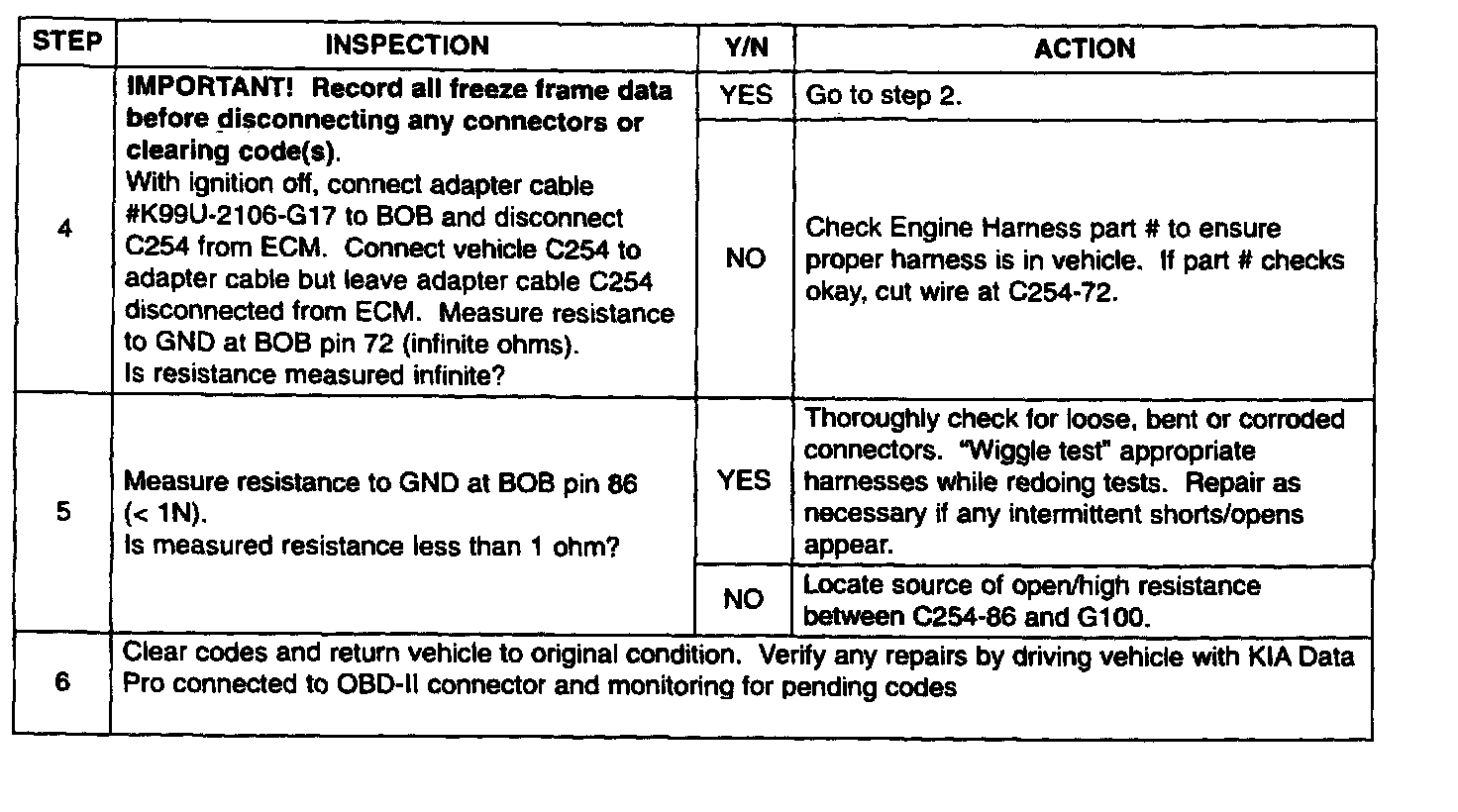

Step 4 - 6:
