Component Operation Table

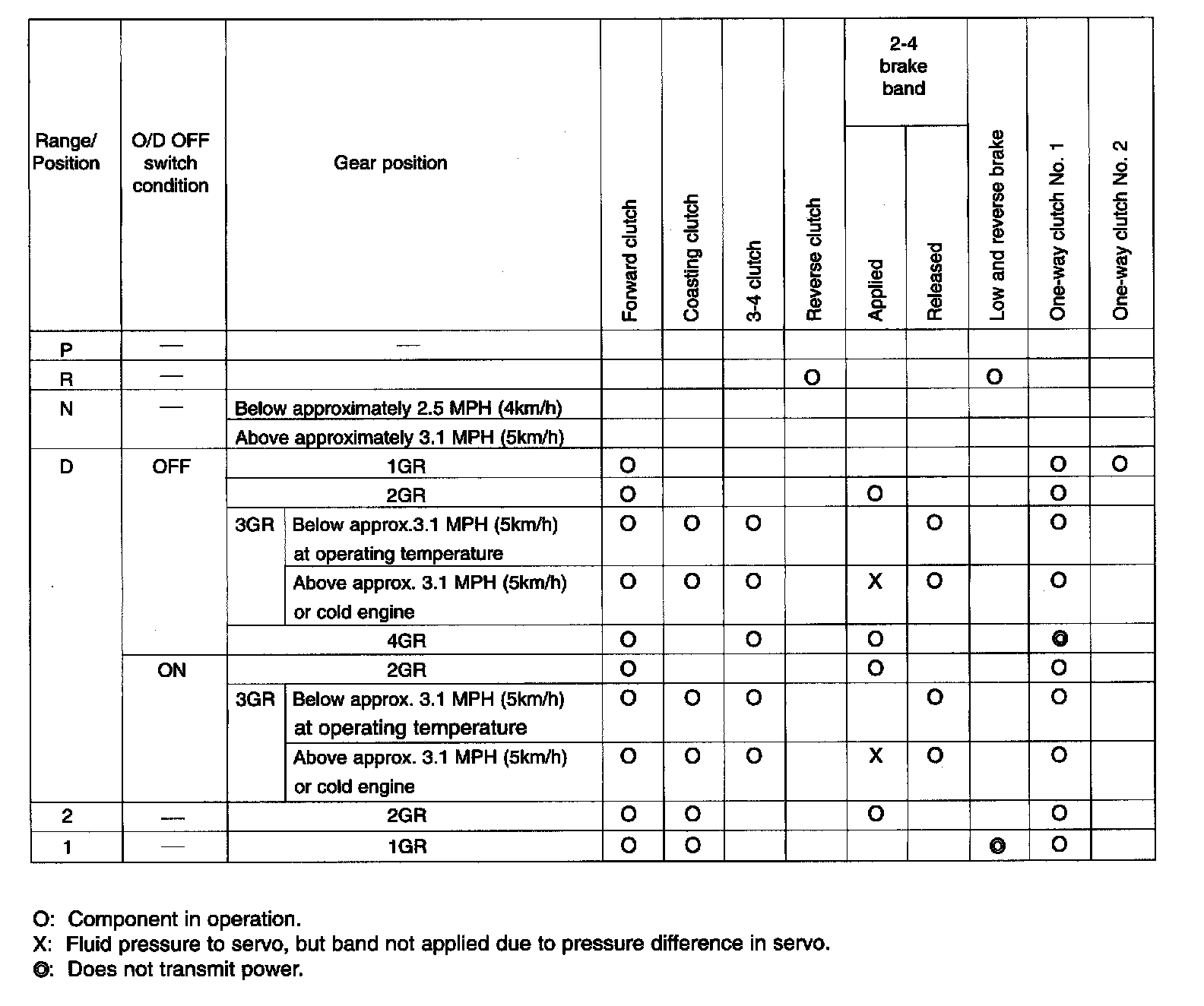

COMPONENT OPERATION TABLE: O/D OFF SYSTEM

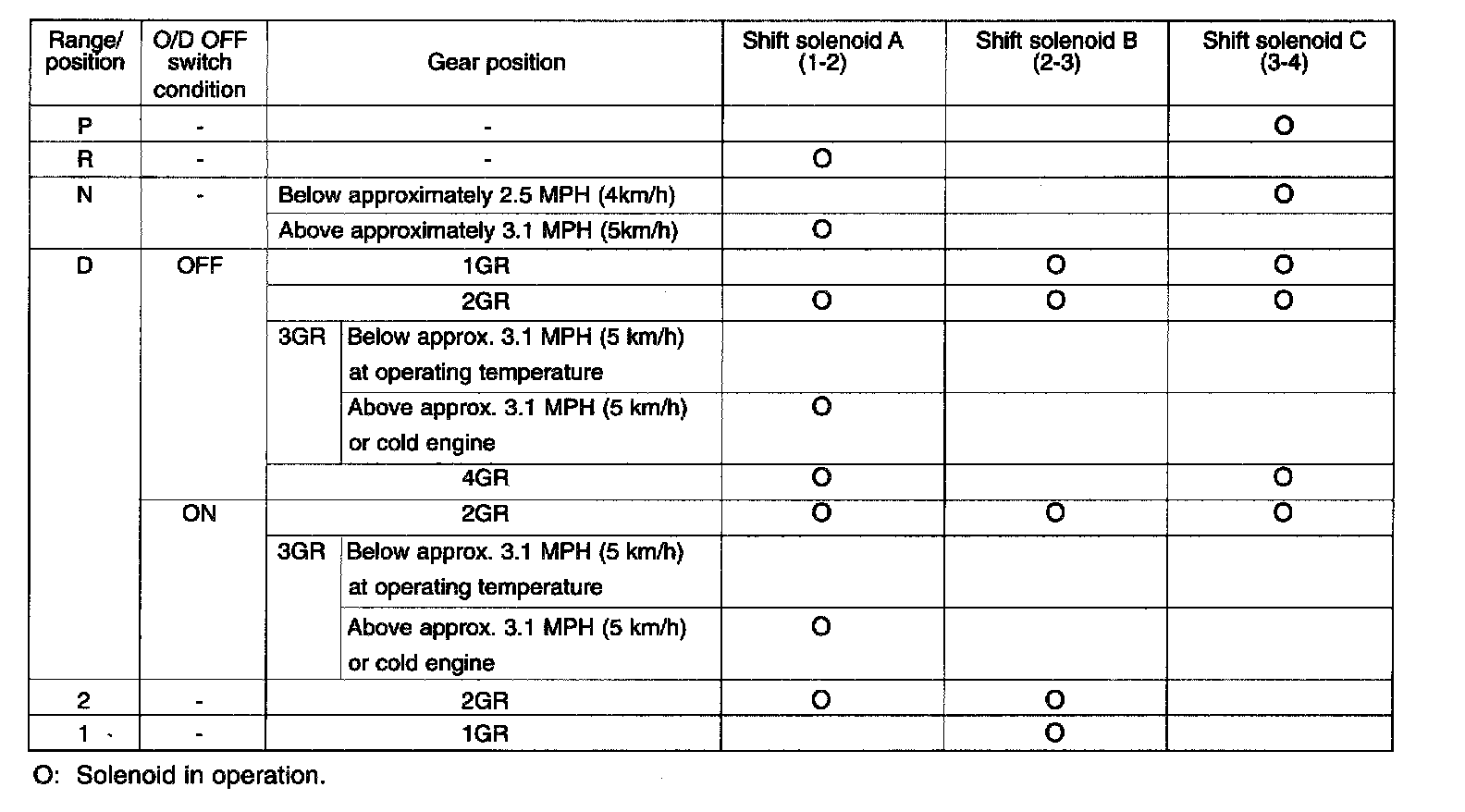

SOLENOID VALVE OPERATION TABLE: O/D OFF SYSTEM

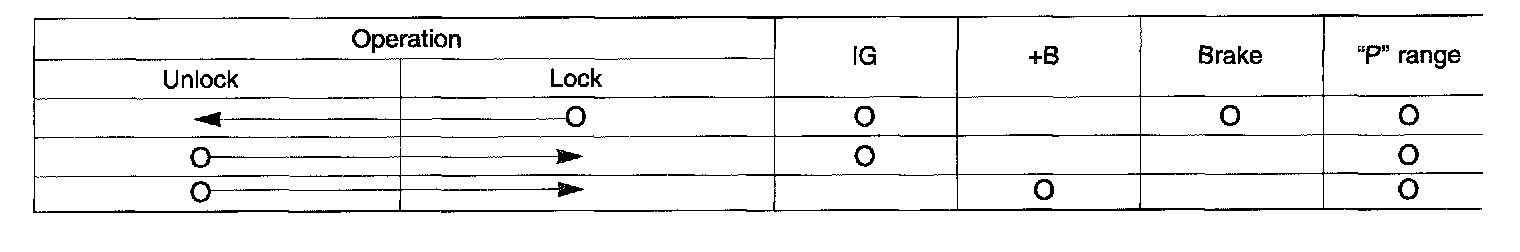

SHIFT MECHANISM OPERATION
