Component Tests and General Diagnostics

1. Remove the triangular trim panels adjacent to each mirror.
2. Disconnect the power mirror connectors C501 or C601.

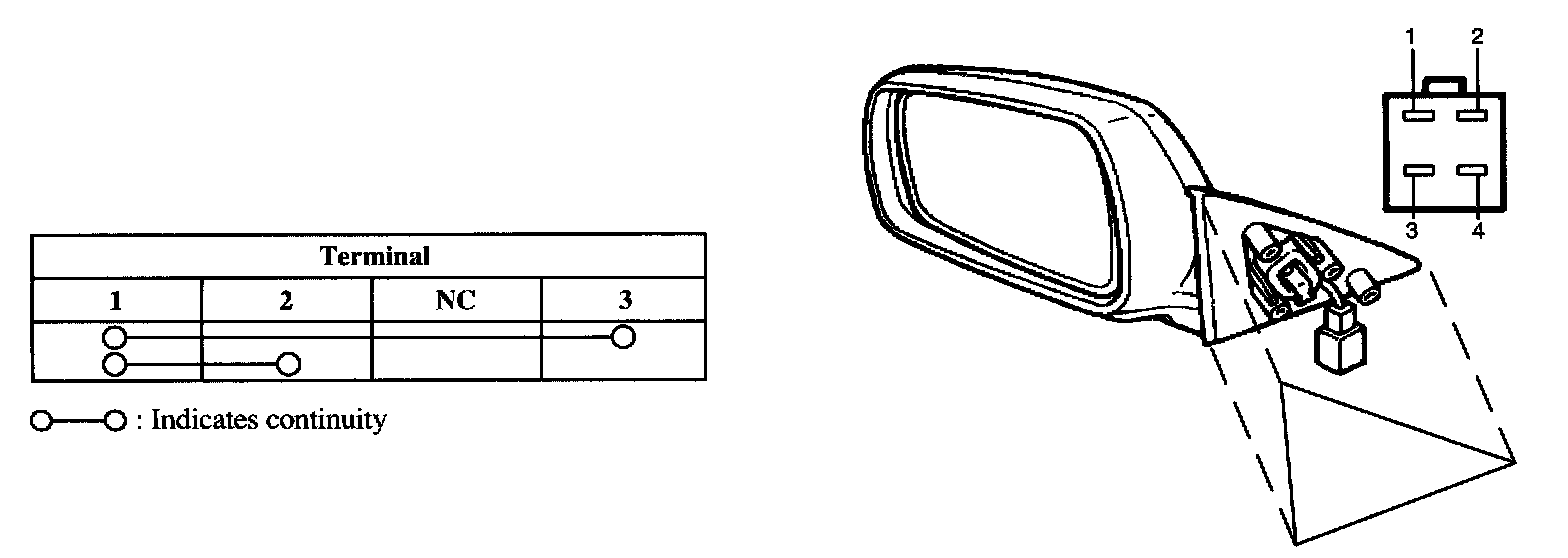

3. Check for continuity between terminals of the mirror connector as indicated.
4. If continuity is not as specified, replace the mirror assembly.
