Starting System - Starter Circuit Update

SOURCE: Kia Technician Times

TITLE: Starter Circuit Update

APPLIES TO: 98-99 Sephia

SERVICE TIP:

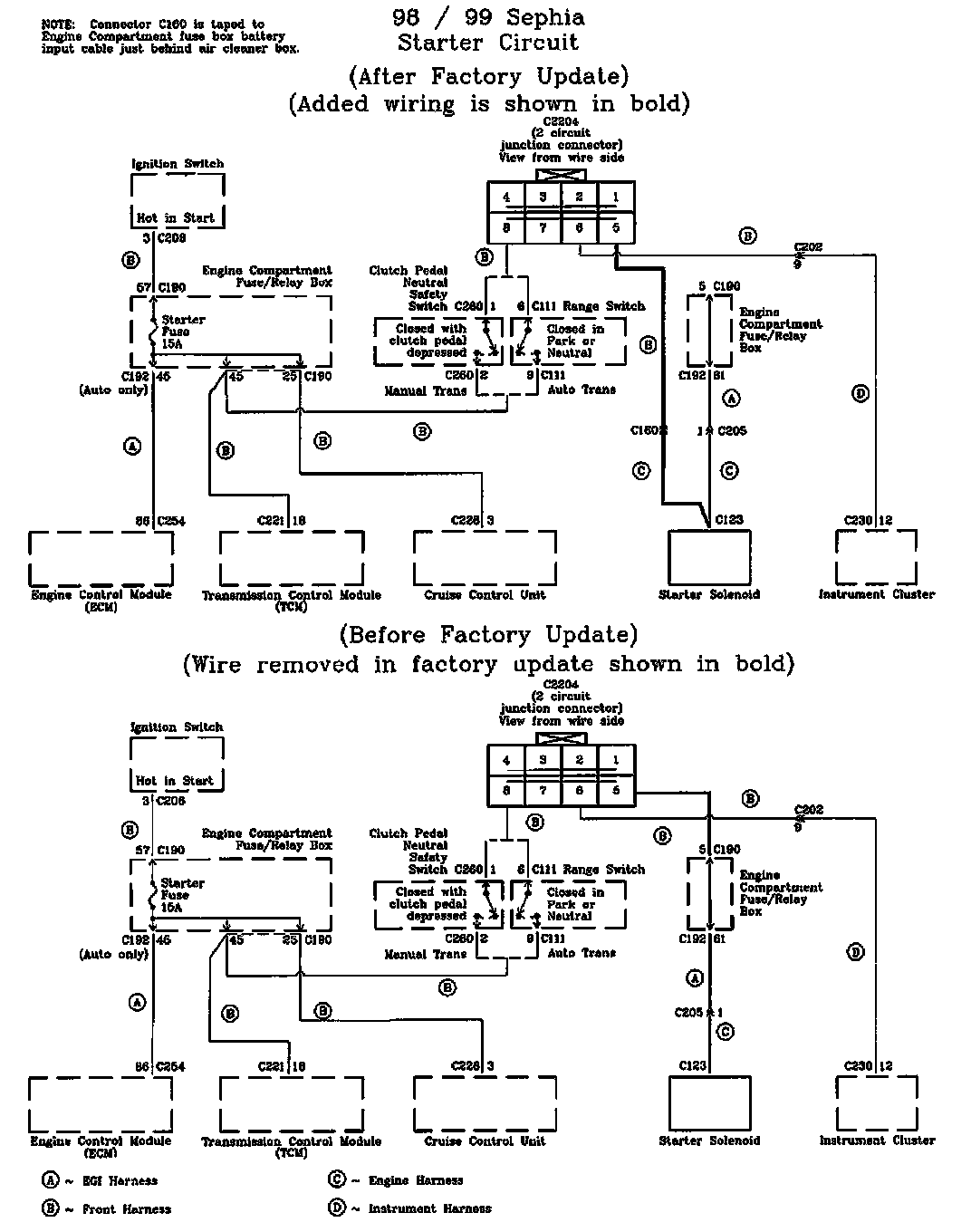

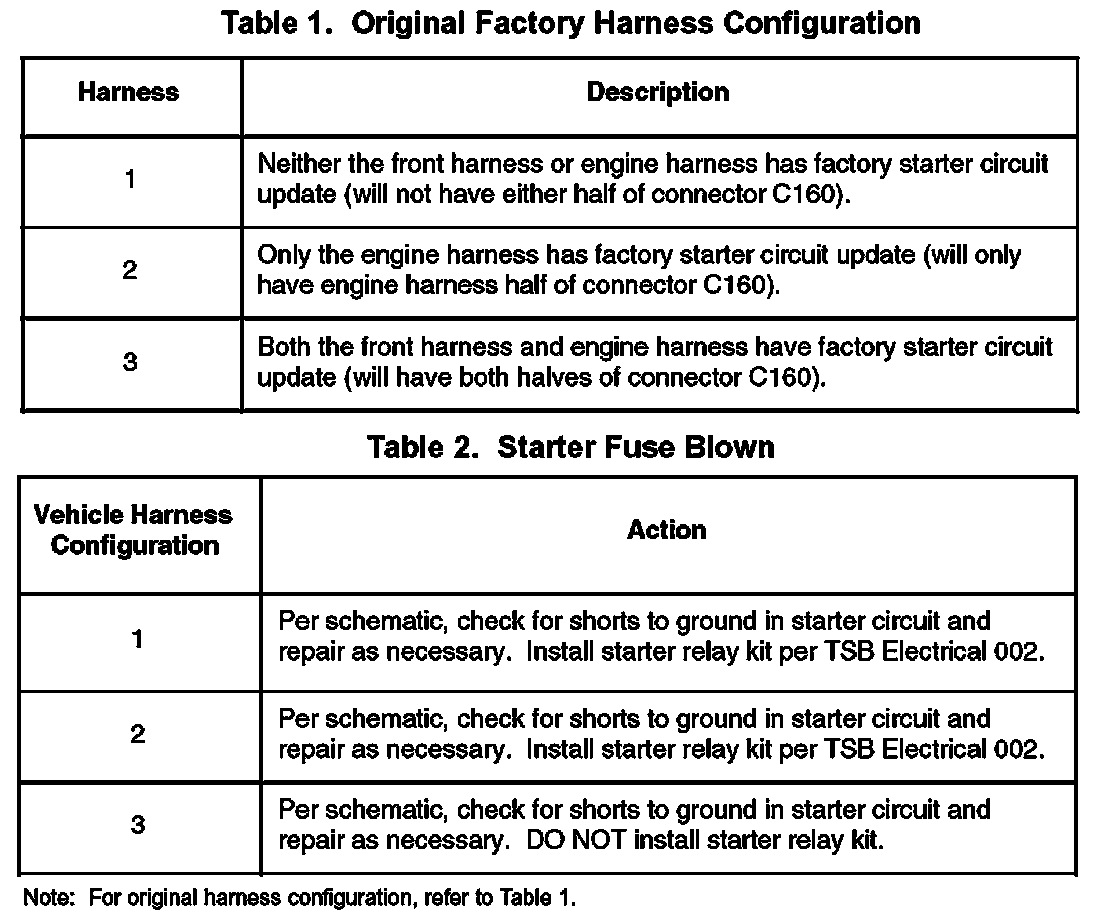

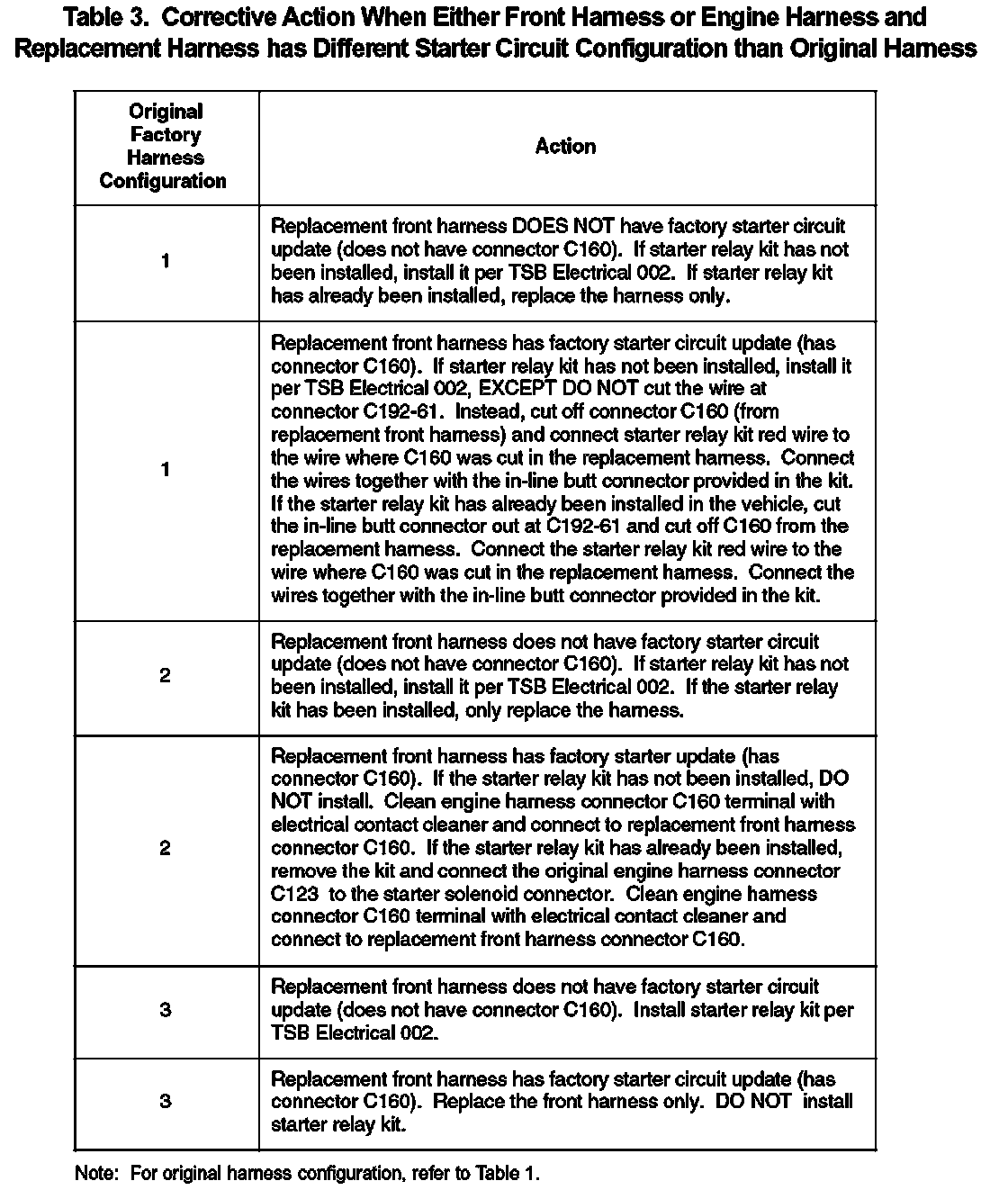

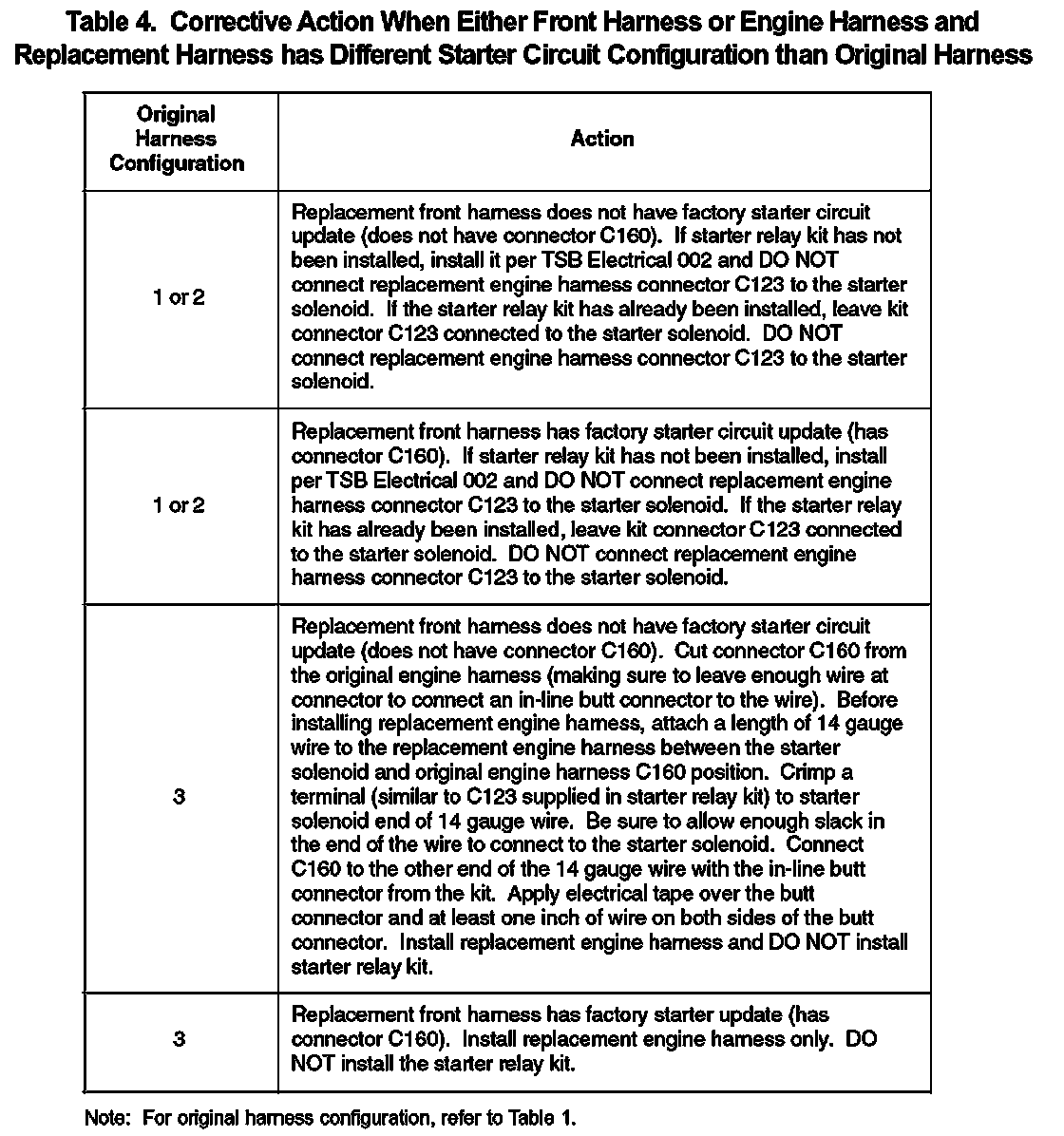

There are three different starter solenoid circuits possible on a 1998 or 1999 Sephia as indicated in Table 1. If you are having a problem with a vehicle blowing the starter fuse, refer to Table 2. If it is necessary to replace either the front harness or the engine harness, be advised that the early front harness and engine harness starter circuit configurations are being phased out of stock. Depending on the replacement harness you receive, you may have to take additional steps than just replacing the harness (refer to Tables 3 and 4).
