Engine - Coolant Temperature Sensor/Switch: Service and Repair

REMOVAL





Notice
Engine coolant temperature sensor is located near thermostat.

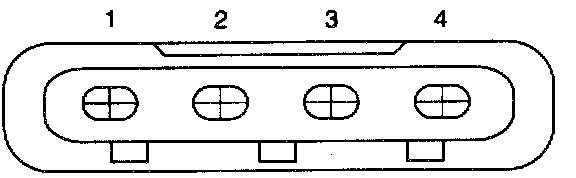

1. Disconnect engine coolant temperature sensor connector.
2. Remove engine coolant temperature sensor.


INSTALLATION





1. Install a new washer and engine coolant temperature sensor onto engine.

Tightening Torque: 18-22 lb-ft (25-29 N.m, 2.5-2.9 kg-m)

2. Connect engine coolant temperature sensor connector.
3. Start engine and check for coolant leakage.
