Power Distribution

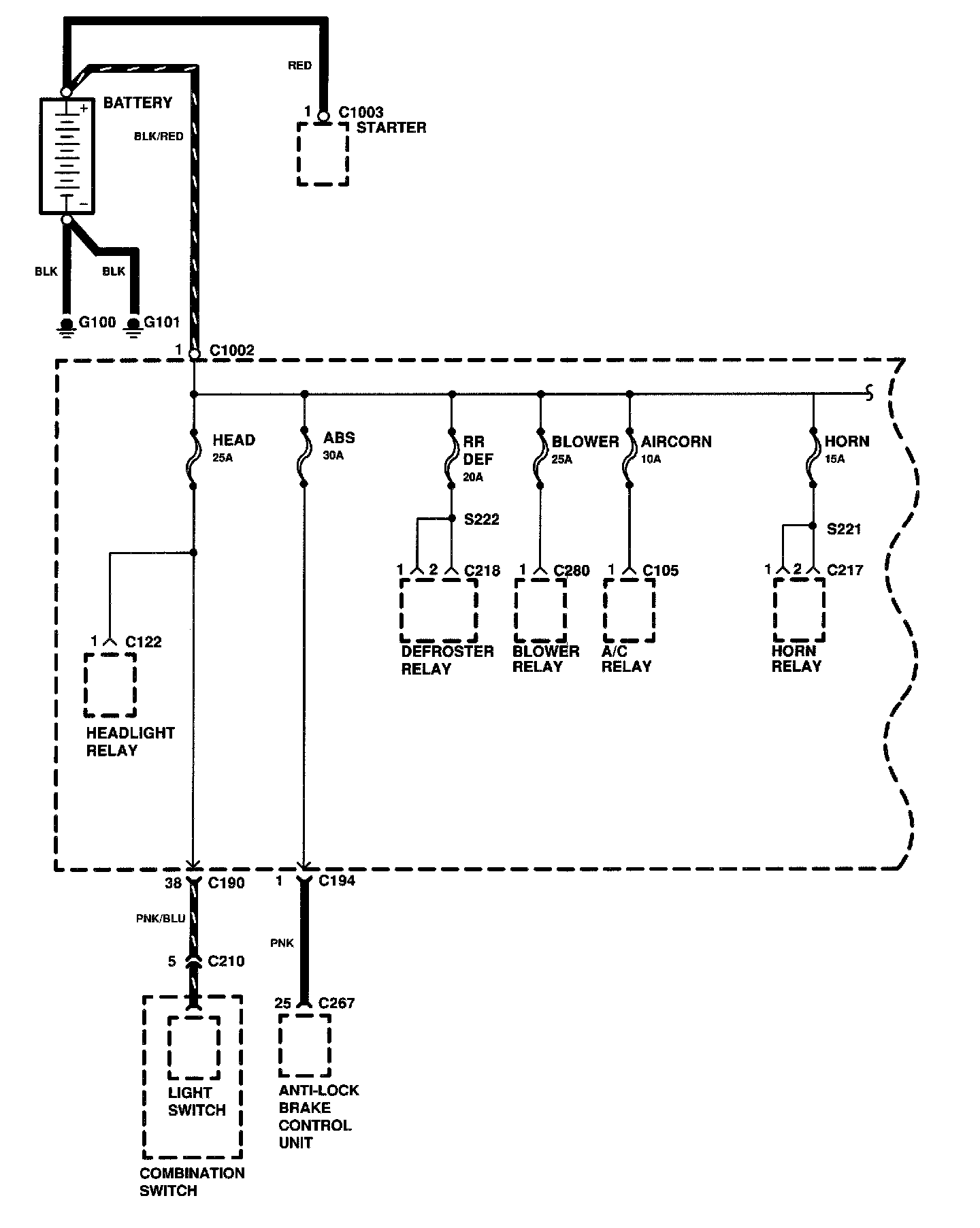

Power Distribution (Part 1 Of 7):

Power Distribution (Part 1 Of 7)
A/C Relay
Anti-Lock Brake Control Unit
Battery
Blower Relay
Combination Switch
- Light Switch
Defroster Relay
Horn Relay
Headlight Relay
Starter

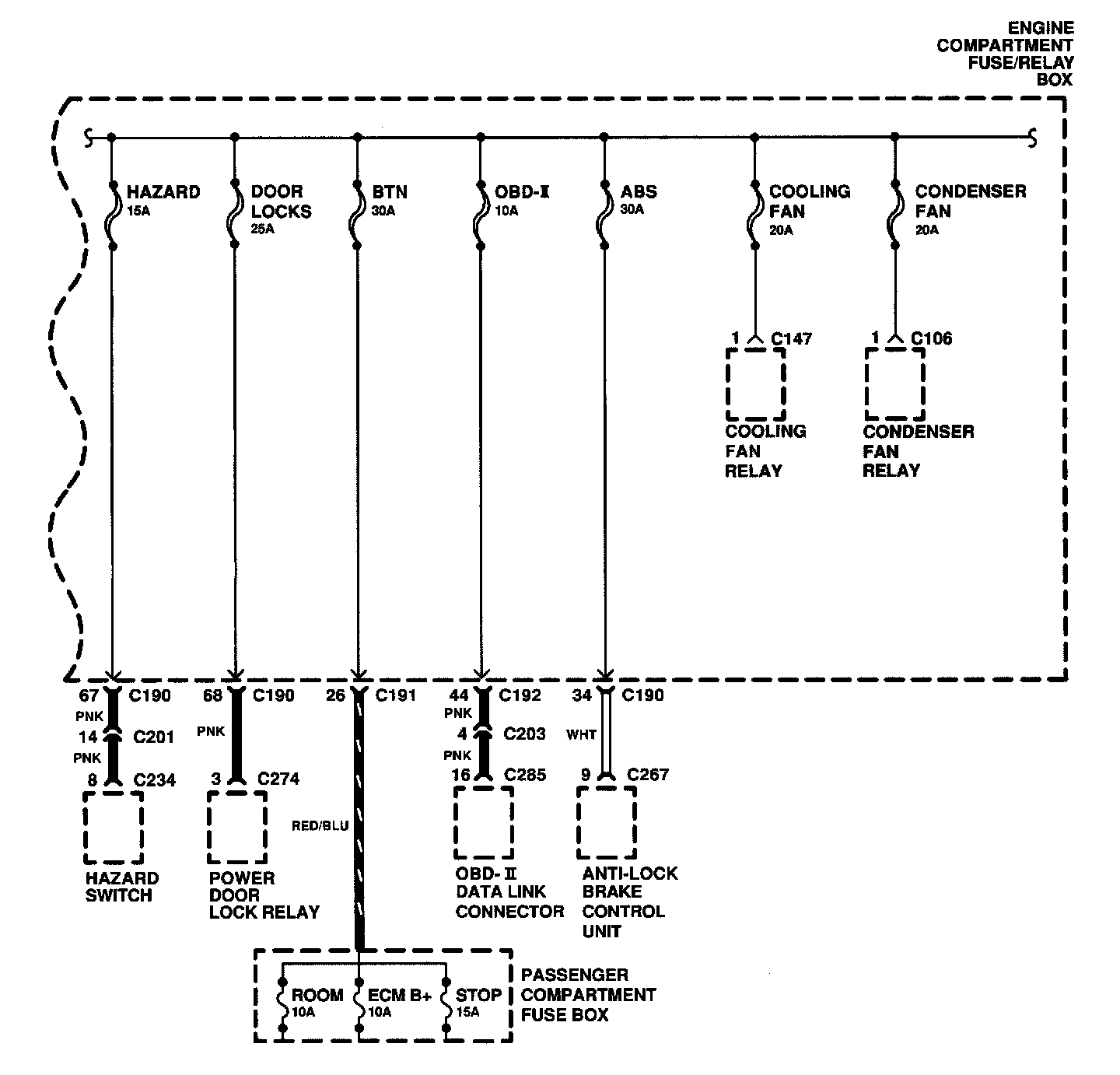

Power Distribution (Part 2 Of 7):

Power Distribution (Part 2 Of 7)
Anti-Lock Brake Control Unit
Data Link Connector
Engine Compartment Fuse/Relay Box
- Cooling Fan Relay
- Condenser Fan Relay
Hazard Switch
Power Door Lock Relay
Passenger Compartment Fuse Box

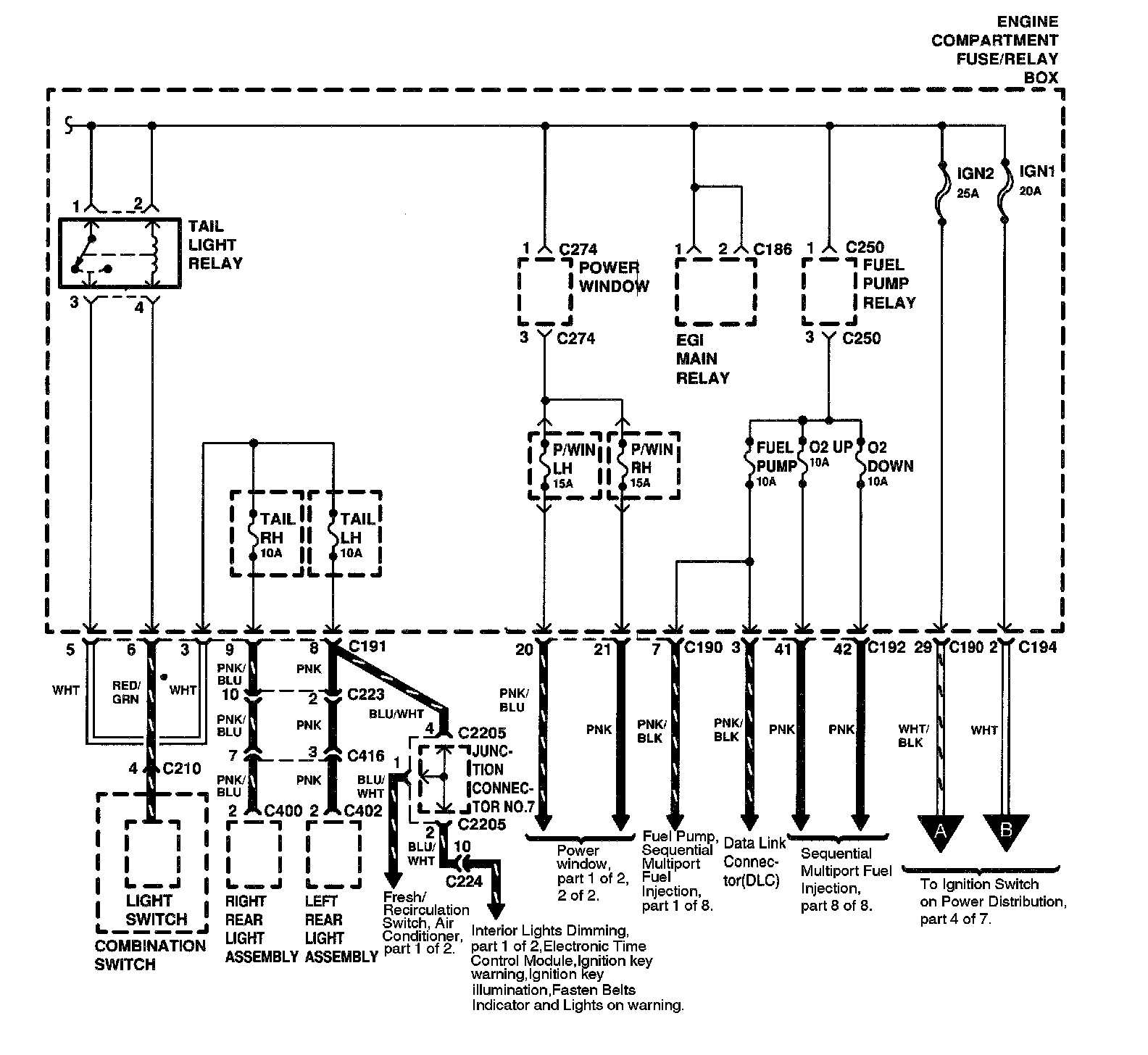

Power Distribution (Part 3 Of 7):

Power Distribution (Part 3 Of 7)
Combination Switch
- Light Switch
Engine Compartment Fuse/relay Box
- EGI Main Relay
- Fuel Pump Relay
- Power Window
- Tail Light Relay
Junction Connector No. 7
Left Rear Light Assembly
Right Rear Light Assembly

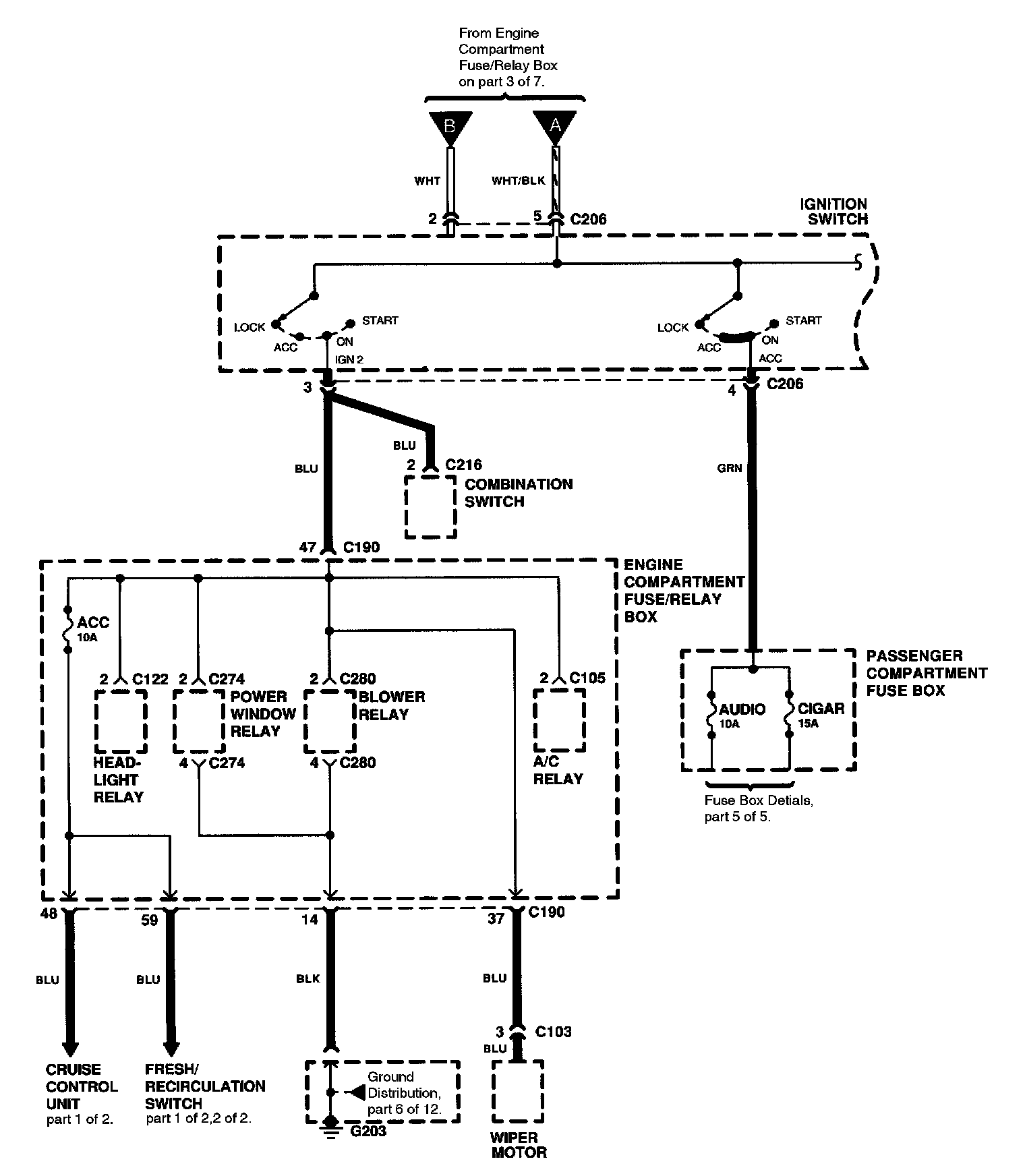

Power Distribution (Part 4 Of 7):

Power Distribution (Part 4 Of 7)
Combination Switch
Cruise Control Unit
Engine Compartment Fuse/Relay Box
- A/C Relay
- Blower Relay
- Head Light Relay
- Power Window Relay
Fresh/Recirculation Switch
Ignition Switch
Passenger Compartment Fuse Box
Wiper Motor

Power Distribution (Part 5 Of 7):

Power Distribution (Part 5 Of 7)
Engine Compartment Fuse/Relay Box
Ignition Switch
Junction Connector No. 11
Passenger Compartment Fuse Box

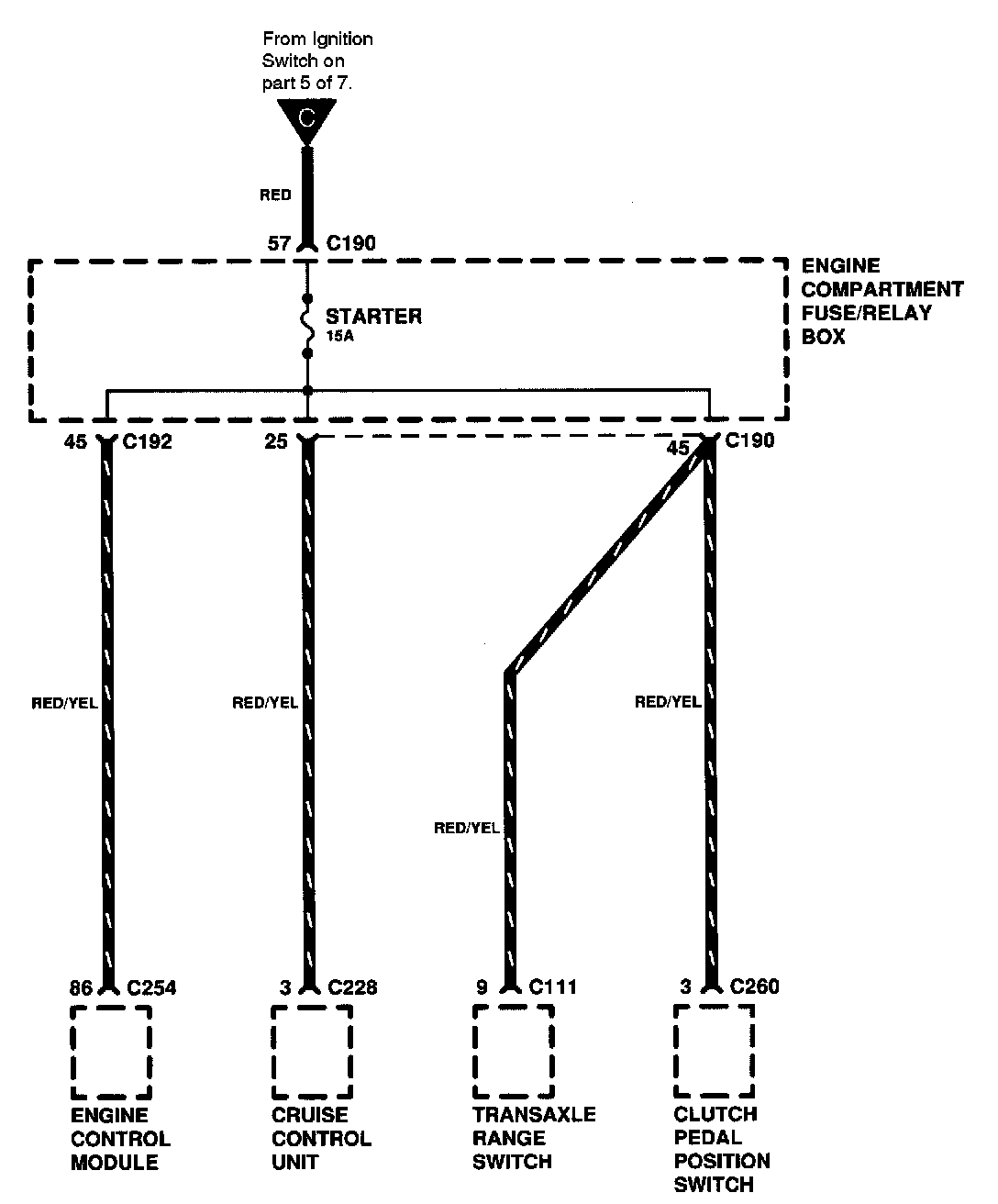

Power Distribution (Part 6 Of 7):

Power Distribution (Part 6 Of 7)
Cruise Control Unit
Clutch Pedal Position Switch
Engine Control Module
Engine Compartment Fuse/Relay Box
Transaxle Range Switch

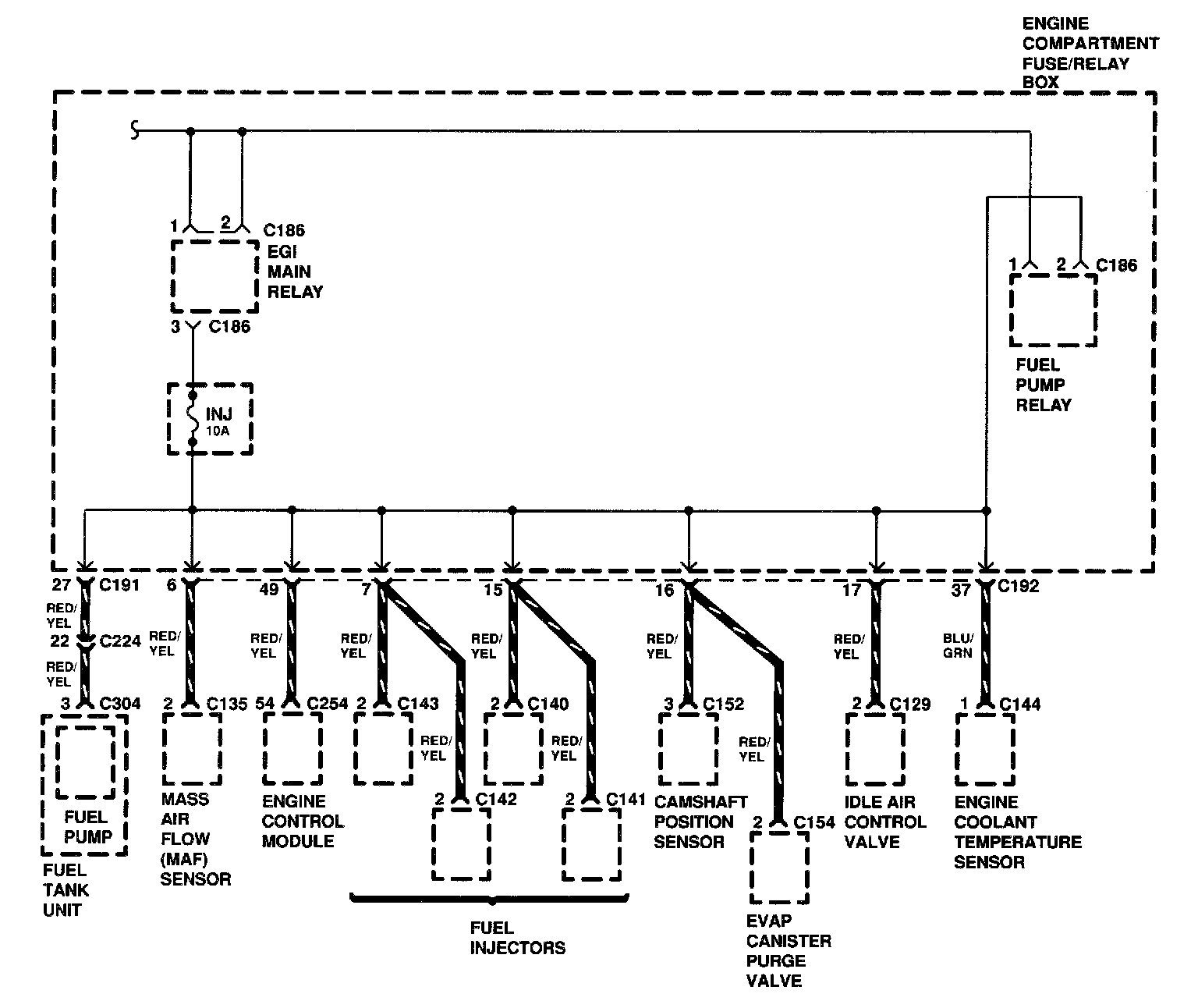

Power Distribution (Part 7 Of 7):

Power Distribution (Part 7 Of 7)
Camshaft Position Sensor
EVAP Canister Purge Valve
Engine Coolant Temperature Sensor
Engine Control Module
Engine Compartment Fuse/Relay Box
- EGI Main Relay
- Fuel Pump Relay
Fuel Injectors
Fuel Tank Unit
- Fuel Pump
Idle Air Control Valve
Mass Air Flow (MAF) Sensor
