Indicators and Gauges Cluster

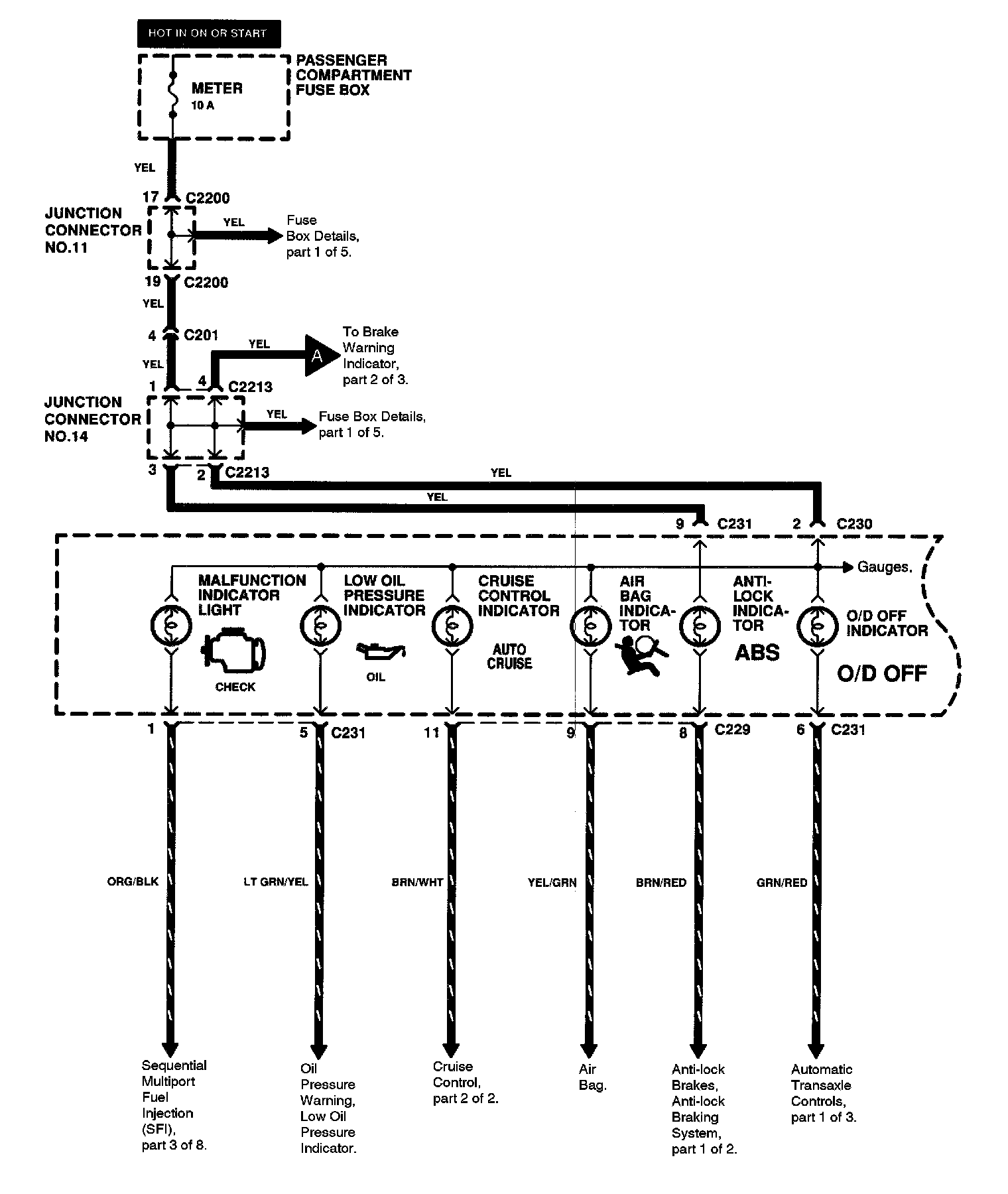

Indicators (Part 1 Of 3):

Indicators (Part 1 Of 3)
Air Bag Indicator
Anti-lock Indicator
Cruise Control Indicator
Junction Connector No. 11
Junction Connector No. 14
Low Oil Pressure Indicator
Malfunction Indicator Lamp
O/D Off Indicator
Passenger Compartment Fuse Box

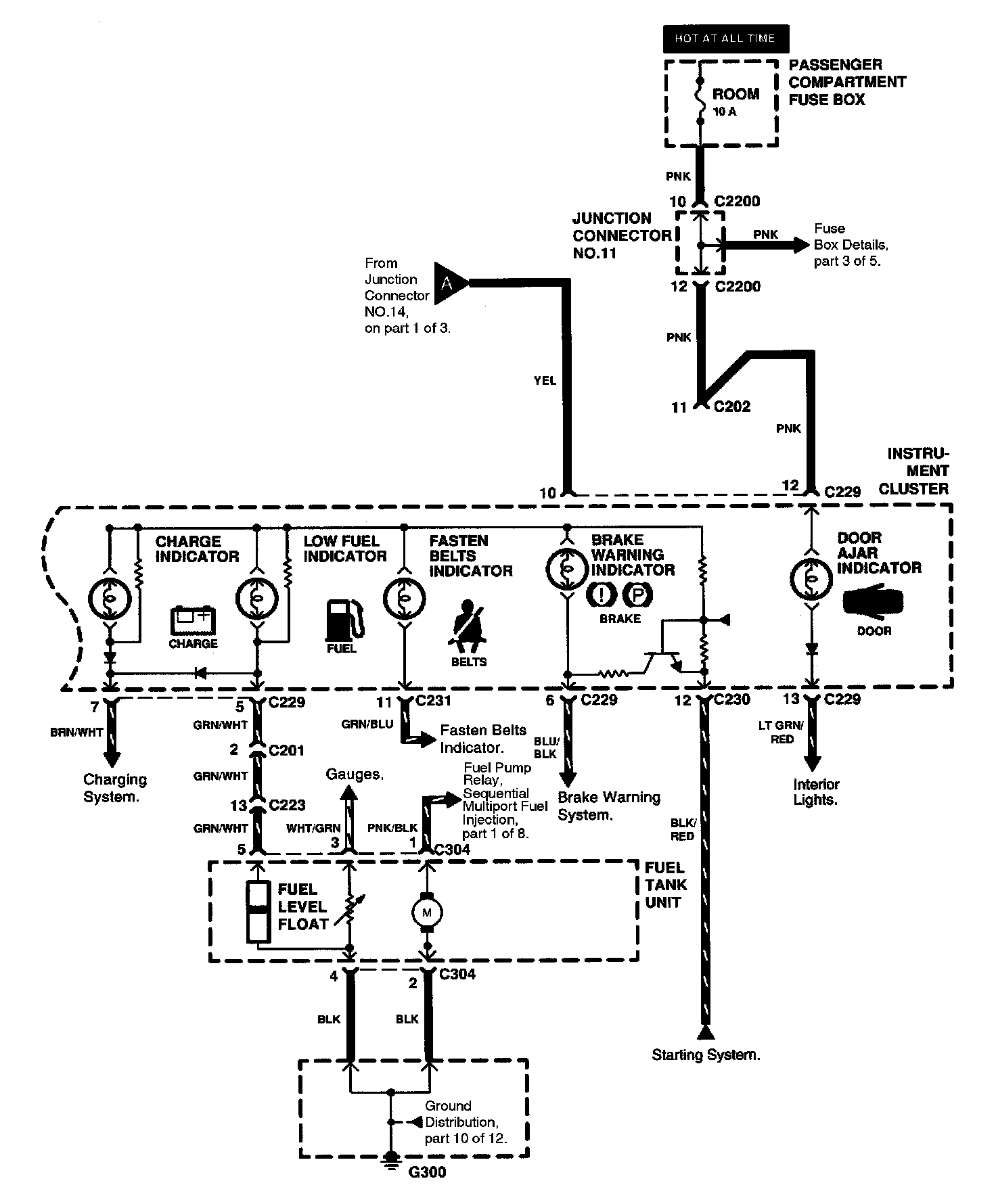

Indicators (Part 2 Of 3):

Indicators (Part 2 Of 3)
Fuel Tank Unit
- Fuel Level Float
Instrument Cluster
- Brake Warning Indicator
- Charge Indicator
- Door Ajar Indicator
- Fasten Belts Indicator
- Low Fuel Indicator
Junction Connector No. 11
Passenger Compartment Fuse Box

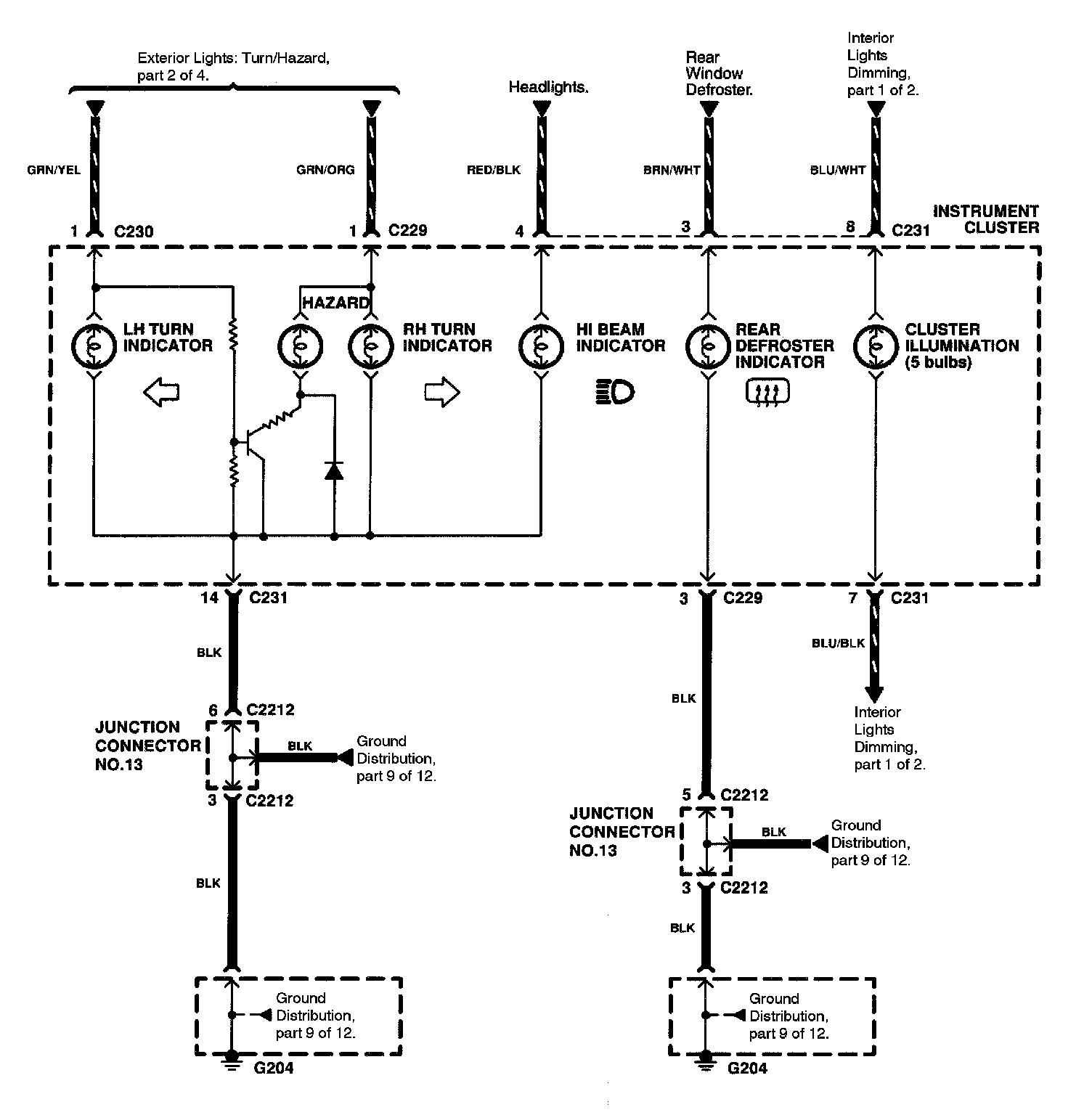

Indicators (Part 3 Of 3):

Indicators (Part 3 Of 3)
Instrument Cluster
- Cluster Illumination
- Hi Beam Indicator
- LH Turn Indicator
- RH Turn Indicator
- Rear Defroster Indicator
Junction Connector No. 13
