Heated Glass Element Relay: Testing and Inspection




1. Disconnect the rear window defroster relay connector and remove the relay.

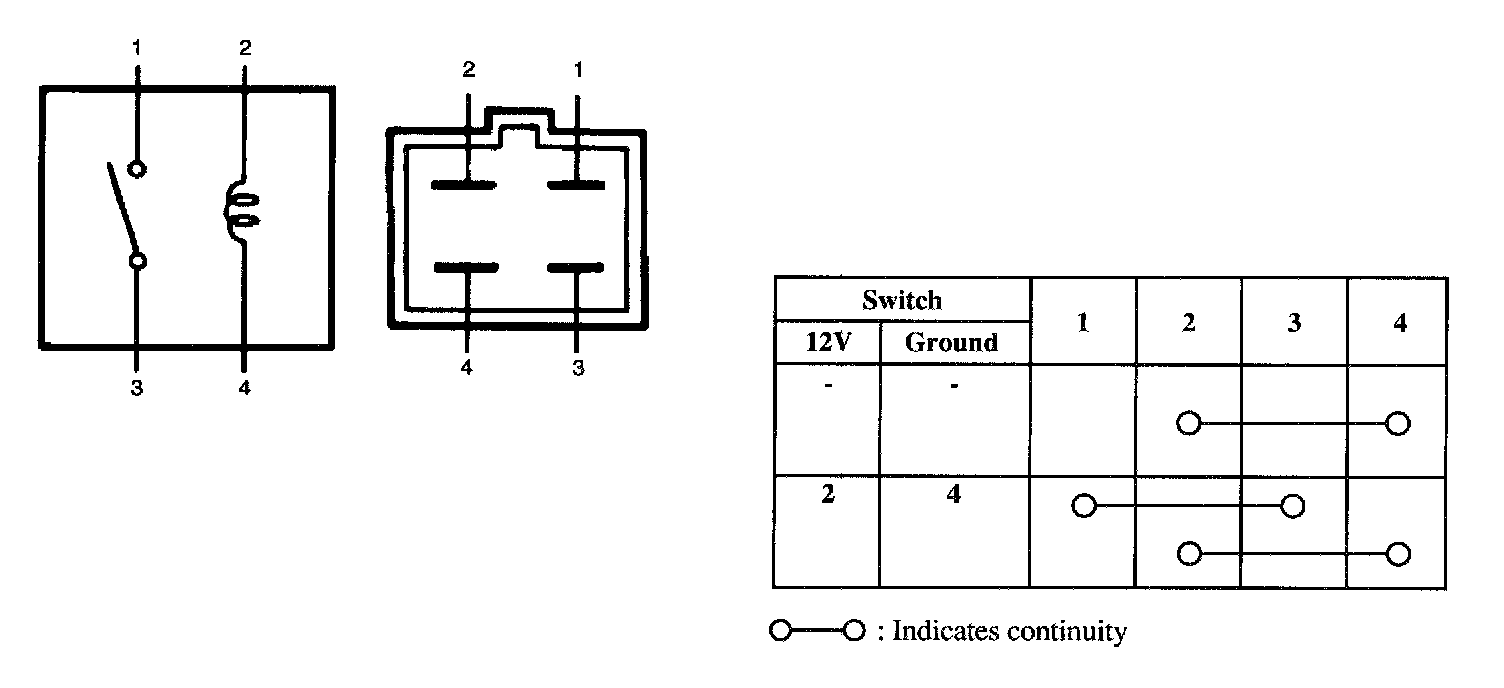

2. Check for continuity between the terminals of the relay.
