Headlamp: Adjustments

Bulb Specifications

HEADLIGHT AIMING

Preparations
1. Inflate the tires to the standard pressures.

Front & rear: 29 psi (196 kpa)

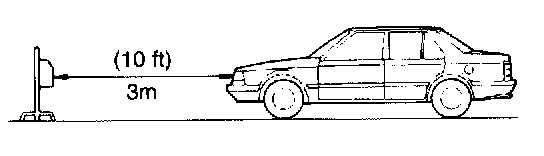

2. Position the vehicle on a flat level surface. (Unloaded condition)

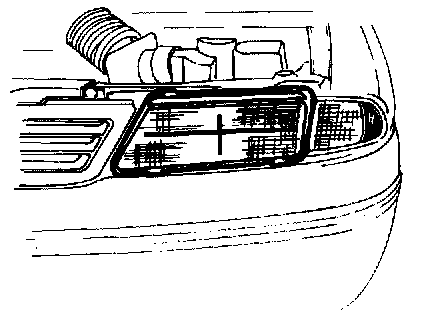

ADJUSTMENT

NOTICE
Do not rotate the cogged wheel on the rear of the headlight assembly (adjacent to HS).

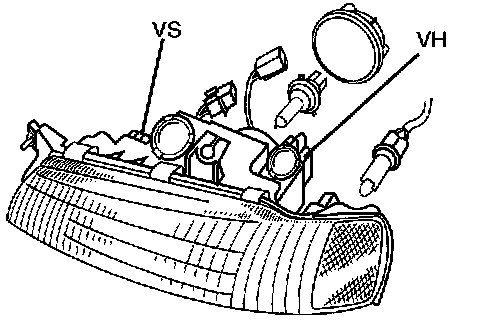

1. Rotate screw VS to adjust headlights vertically. Adjustment is correct when the bubble in sight glass VG is centered around the "0" mark.
2. Rotate screw HS to adjust headlights horizontally. Adjustment is correct when the "0" is aligned with the white line.
